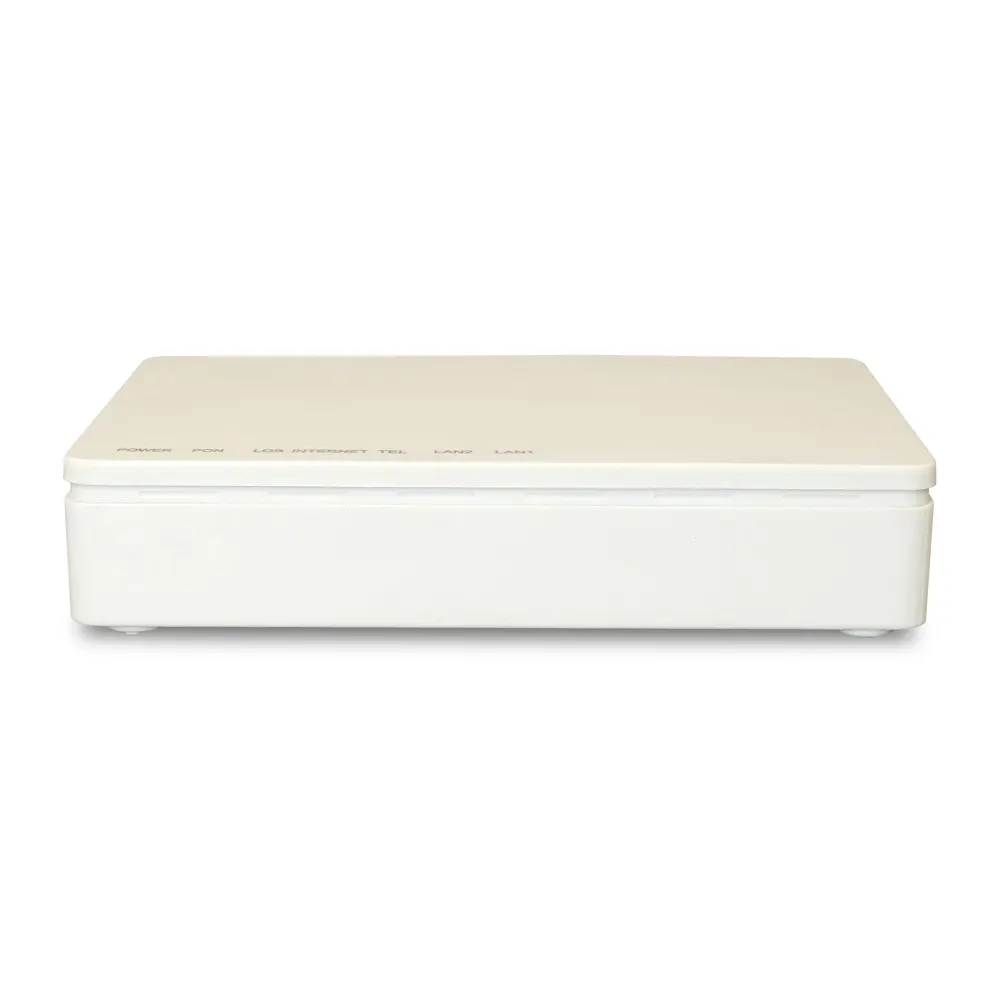

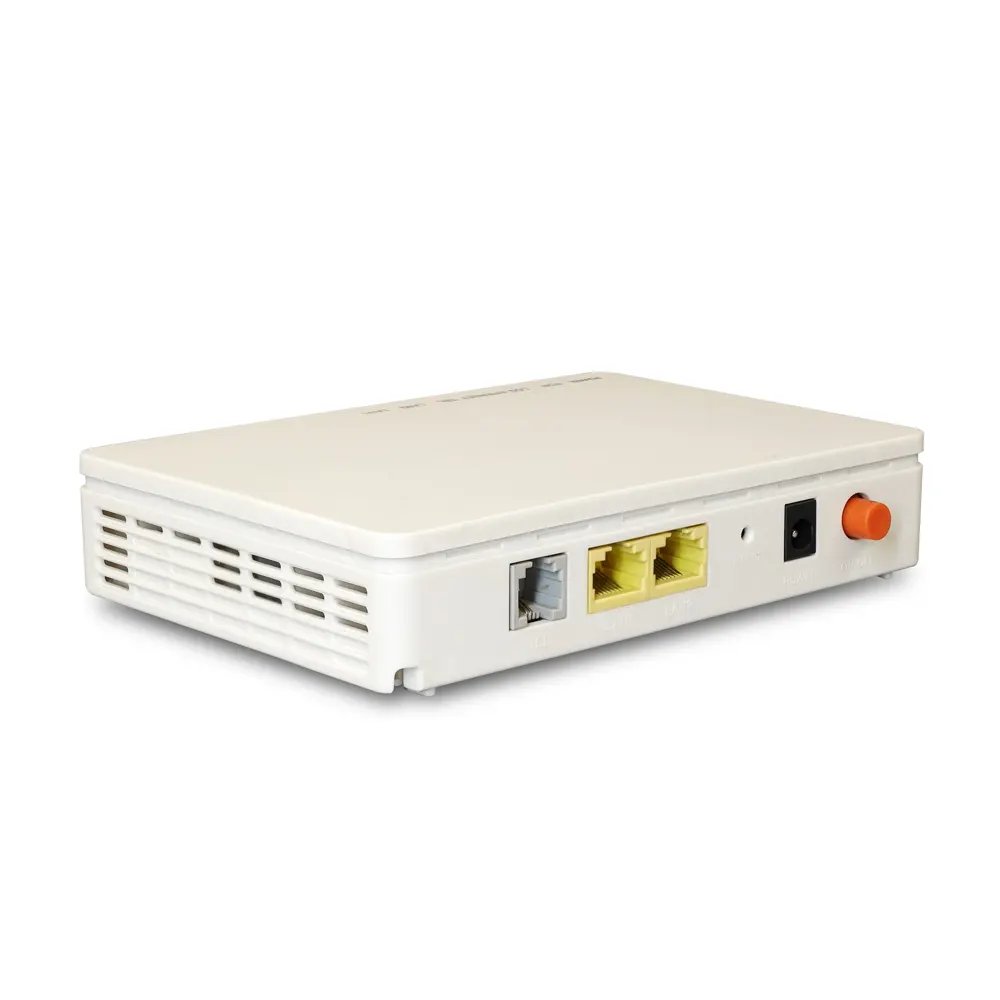

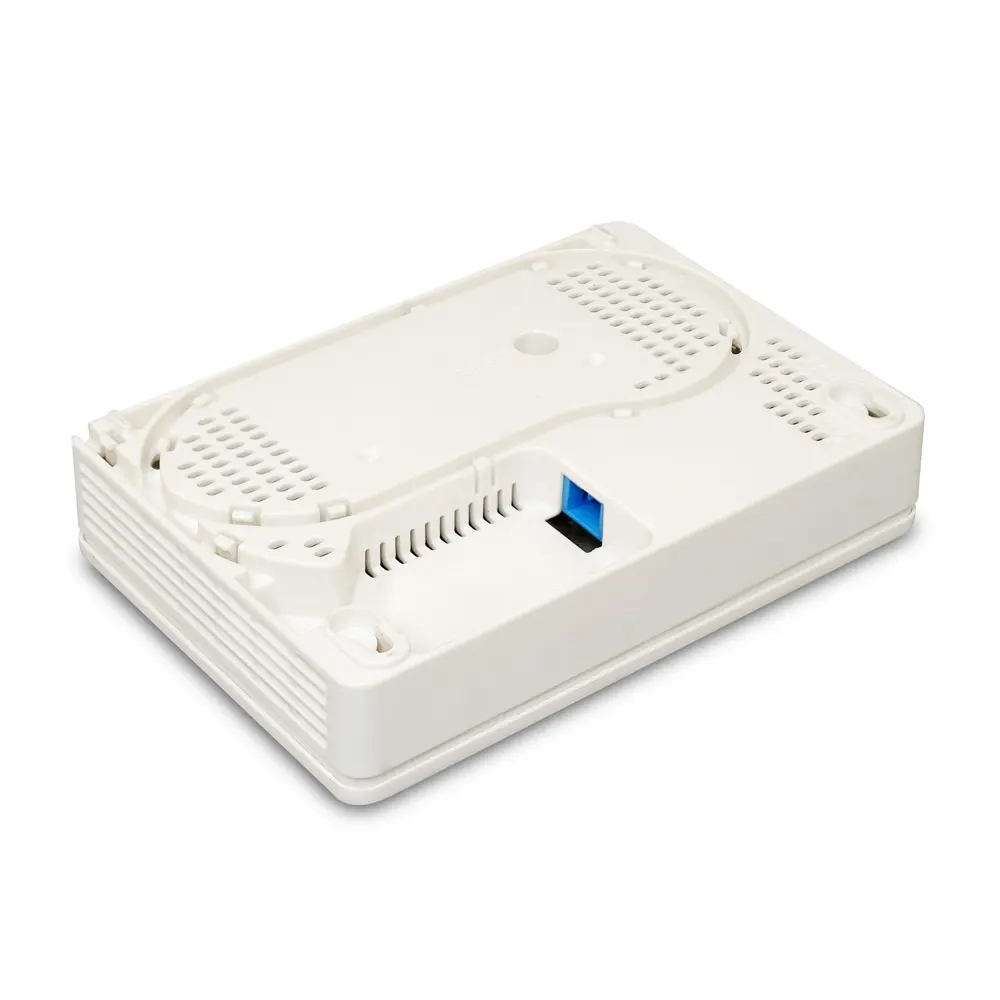

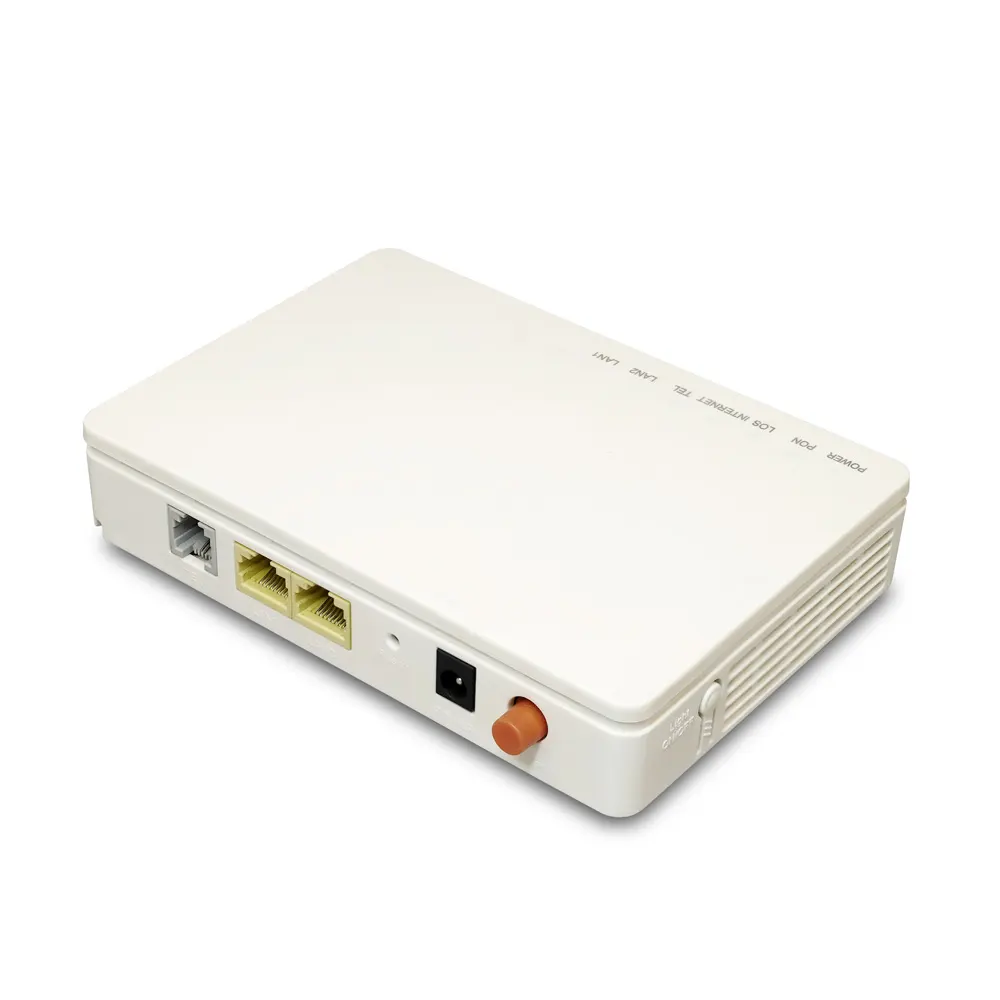

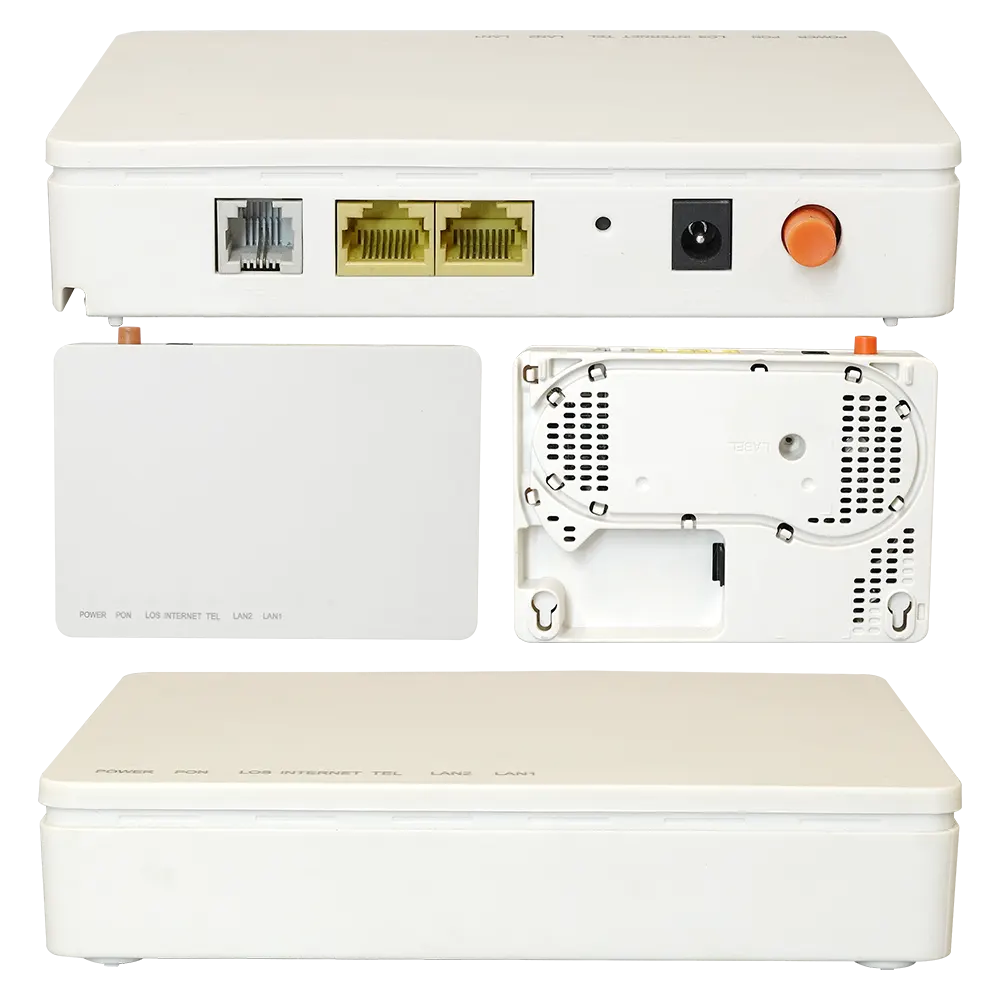

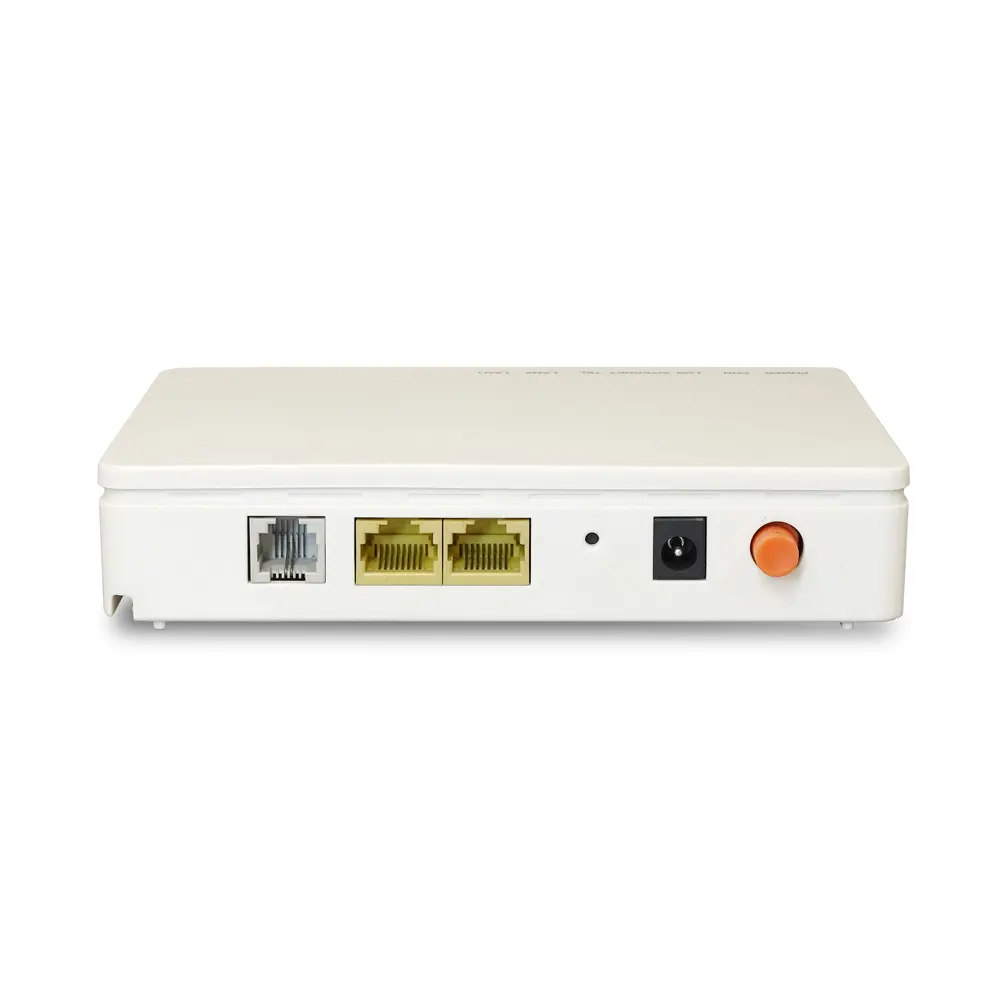

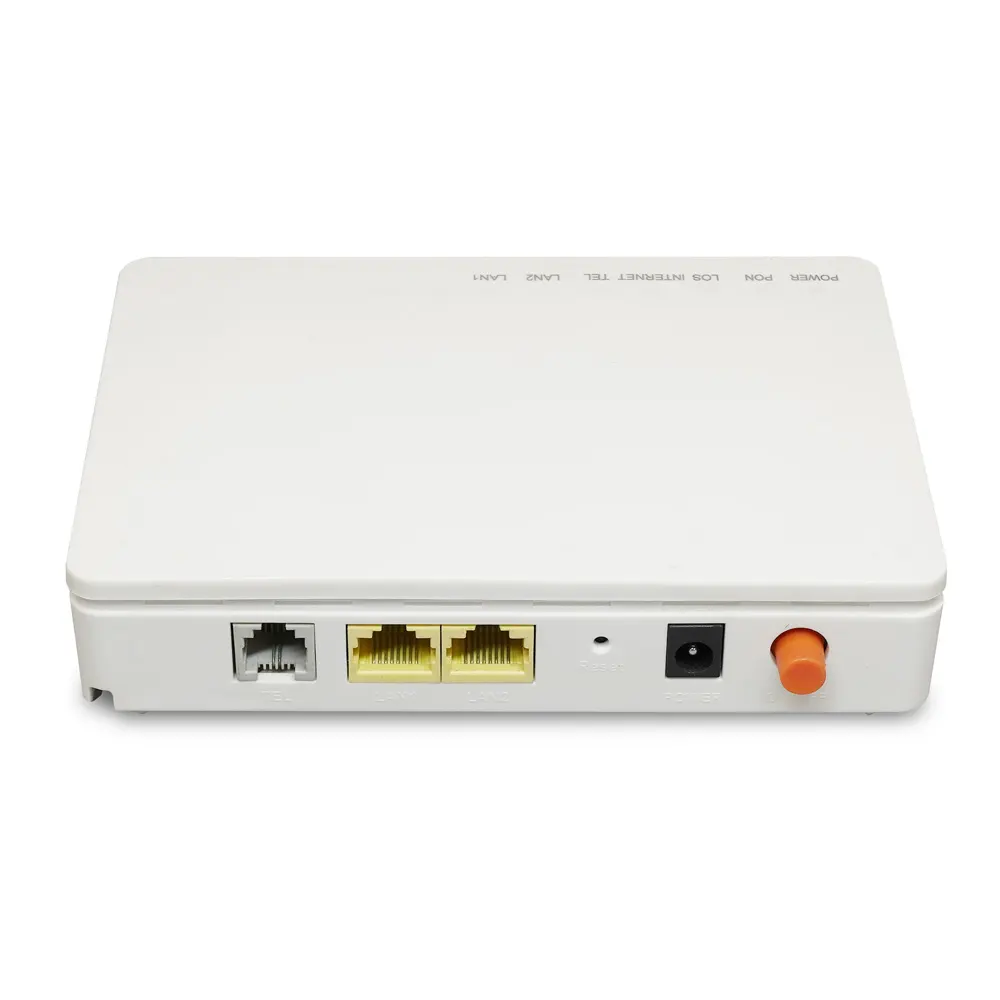

1GE 1FE 2 Ports XPON ONU with WIFI | GPON/EPON Fiber Terminal
- HGU ONU product modality,support bridge and NAT mode.
- BOB product process.
- 802.11b/g/n wireless access.
- Provide VOIP port,support connecting normal telephone.
- 12V/1.5A external power.
Overview
This 1GE 1FE 2 Ports XPON ONU with WIFI is a multi-service XPON terminal product with high reliability, high quality, easy management, flexible upgrade and expansion.It is based on the mature GPON&EPON technology, highly reliable and easy to maintain, with guaranteed QoS for different service. And it is fully compliantwith technical regulations such as IEEE 802.3ah and ITU-T G.984
Key Features of 1GE 1FE 2 Ports XPON ONU with WIFI
- Dual PON Compatibility: Supports both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards.
- High-Speed Ports: 1x GE (Gigabit Ethernet) + 1x FE (Fast Ethernet) RJ45 ports.
- Advanced WiFi: 2.4GHz 802.11b/g/n, 300Mbps speed with 2T2R external antennas.
- VoIP Ready: SIP protocol, G.711/G.729 codecs, fax support, and call features like call waiting/forwarding.
- Robust QoS: SP/WRR scheduling, 802.1p priority, and multicast support.
Hardware Specifications of 1GE 1FE 2 Ports XPON ONU with WIFI
Network Interfaces
- PON Port: 1x SC/UPC, Single Fiber (1310nm Tx / 1490nm Rx).
- LAN Ports: 1x 10/100/1000Mbps + 1x 10/100Mbps, Auto-MDI/MDI-X.
- POTS Port: 1x FXS RJ11 for VoIP services.
Wireless Specifications
- Standard: IEEE 802.11b/g/n.
- Speed: Up to 300Mbps.
- Antenna: 2 external omnidirectional antennas.
Power & Dimensions
- Input: DC 12V/1.5A.
- Power Consumption: <9W.
- Dimensions: 143x100x30mm.
- Weight: 150g.
VoIP & Telephony Features
- Protocols: SIP, RFC2833, MD5 authentication.
- Codecs: G.711, G.723.1, G.729 with auto-negotiation.
- Call Features: Call forwarding/waiting, hot-line, multi-party conferencing.
- Fax Support: T.38, high/low-speed fax bypass.
- Echo Cancellation: ITU-T G.165/G.168-2002 compliant (128ms tail length).
GPON/EPON Performance
- GPON: 2.488Gbps Down / 1.244Gbps Up.
- EPON: 1.25Gbps Symmetric.
- Transmission: Up to 20km reach, FEC support.
- Optical Power: Detection and auto-reporting.
Gateway & Management
- WAN Modes: Router (PPPoE/DHCP/Static IP) and Bridge.
- Services: Internet, IPTV, TR069.
- NAT/NAPT: Full support for network address translation.
- Firmware: Batch upgrade capability via OAM.
Environmental Tolerance
- Operating Temp: 0°C to 50°C.
- Storage Temp: -40°C to 85°C.
- Humidity: 10%–90% non-condensing.
