1GE 1FE Wifi ONU Modem | EPON Fiber Optic Gateway
- HGU ONU product modality,support bridge and NAT mode.
- BOB product process.
- 802.11b/g/n wireless access.
- Provide VOIP port,support connecting normal telephone.
- 12V/0.5A external power.
Product Overview

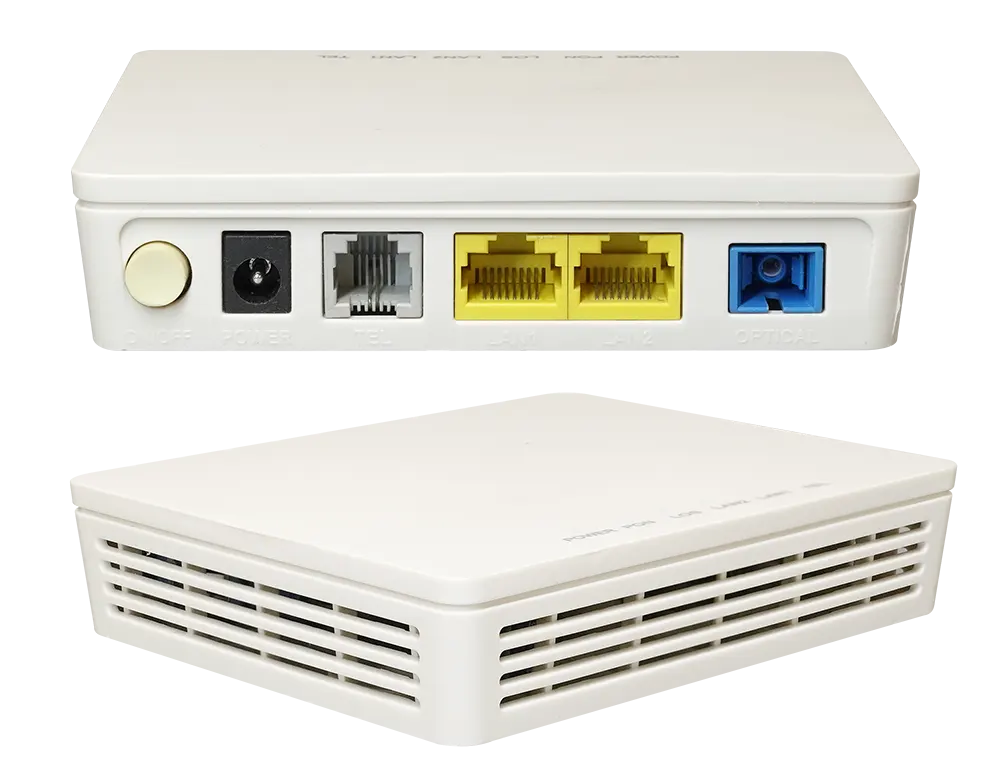

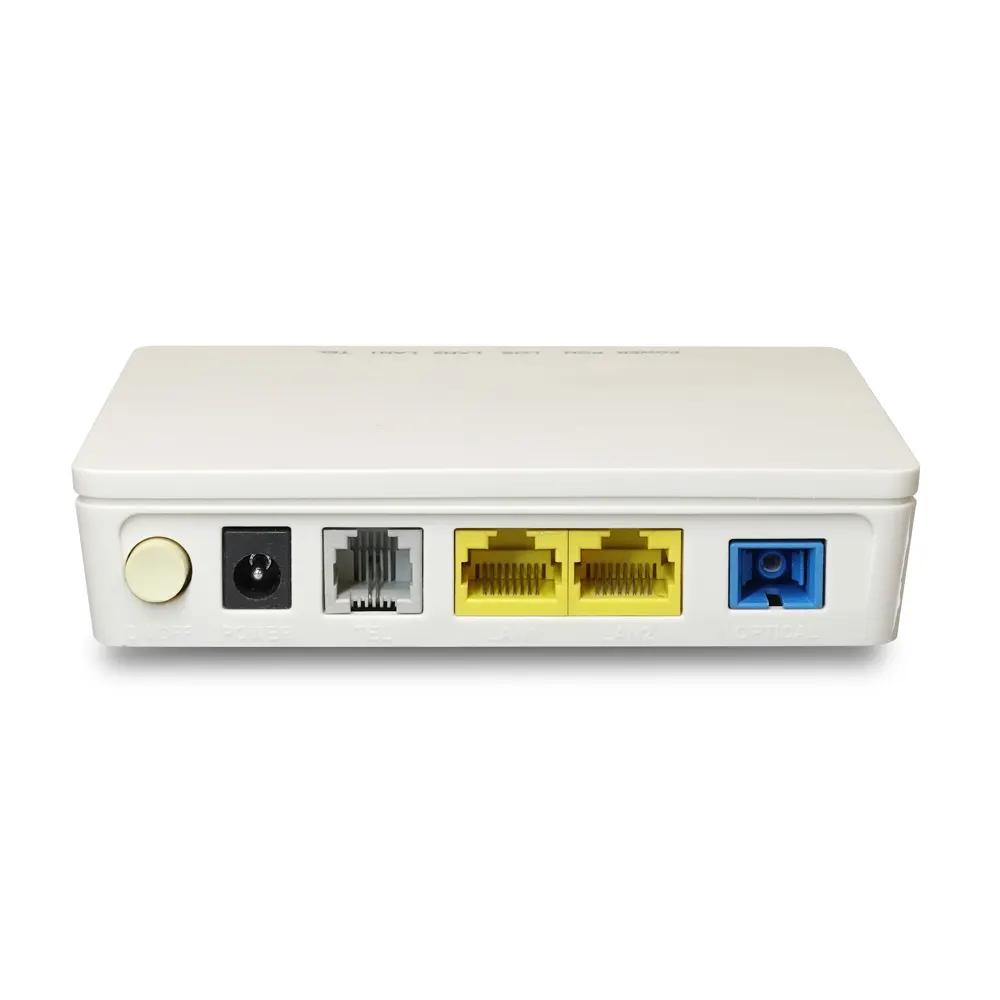

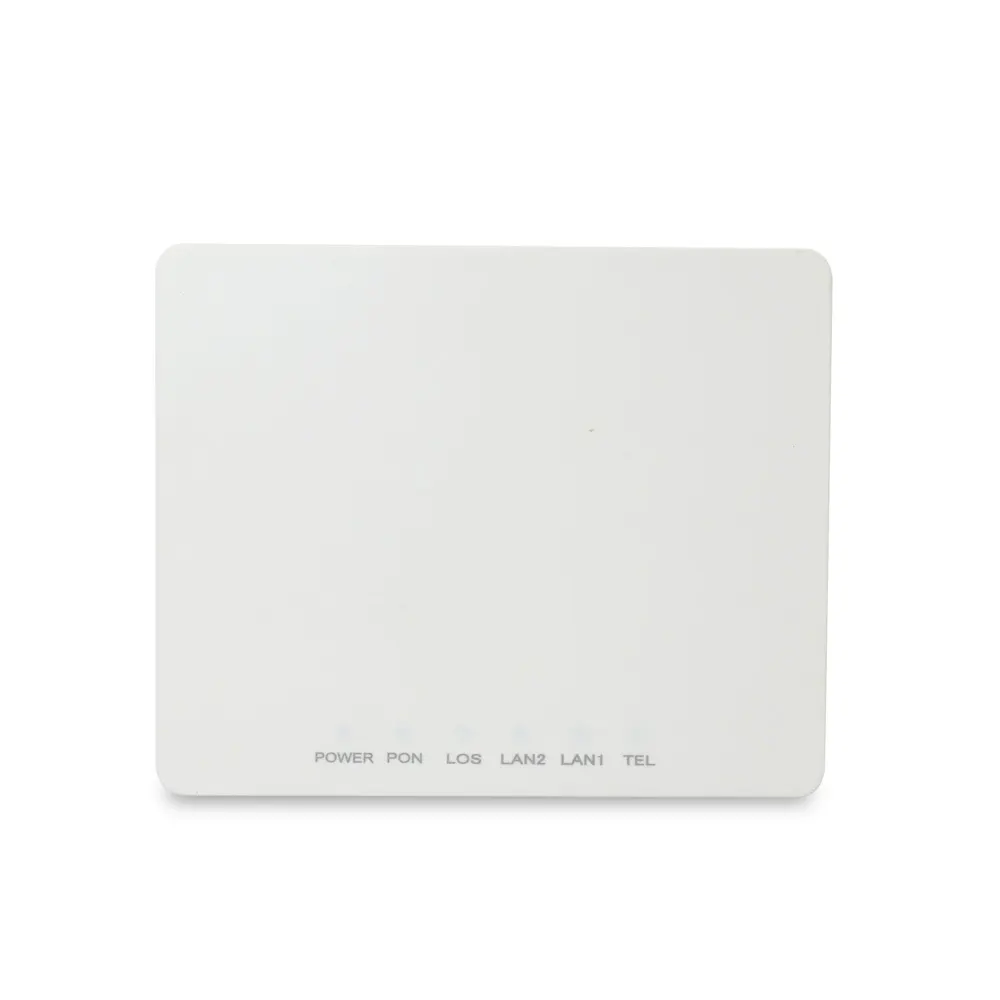

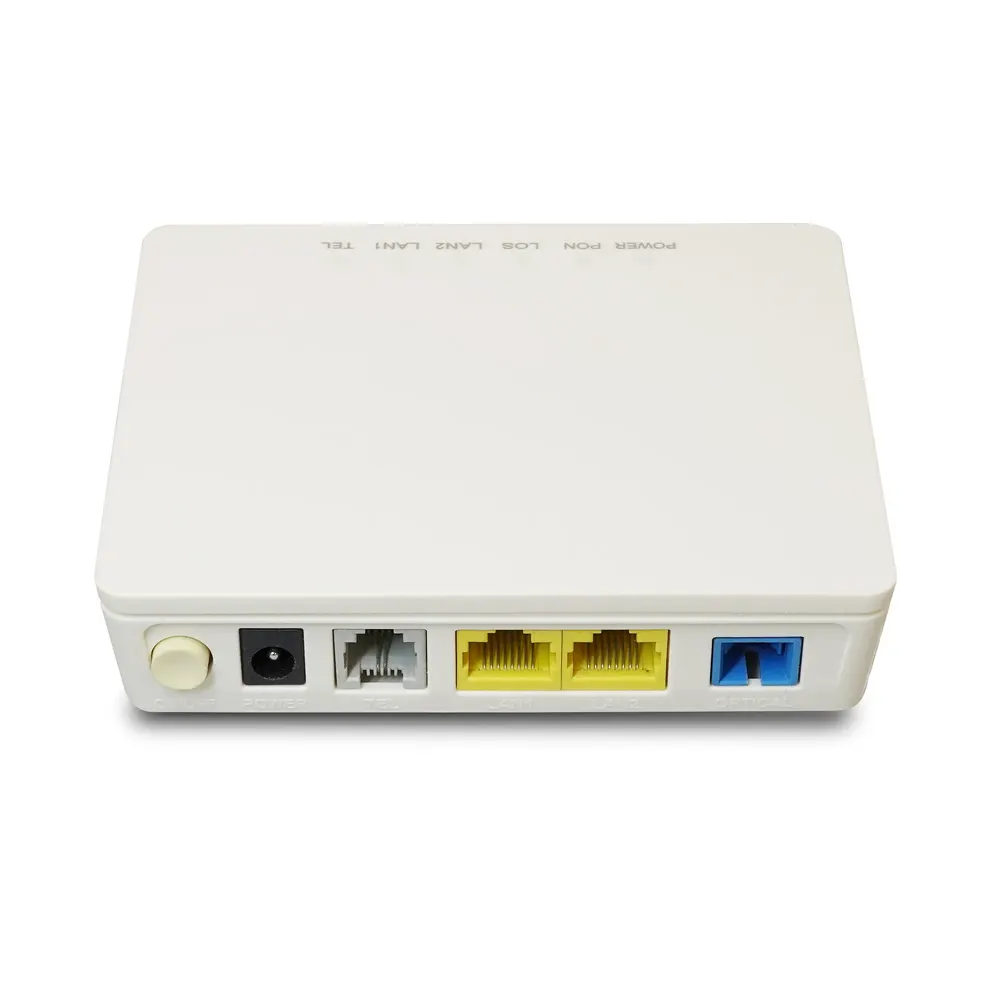

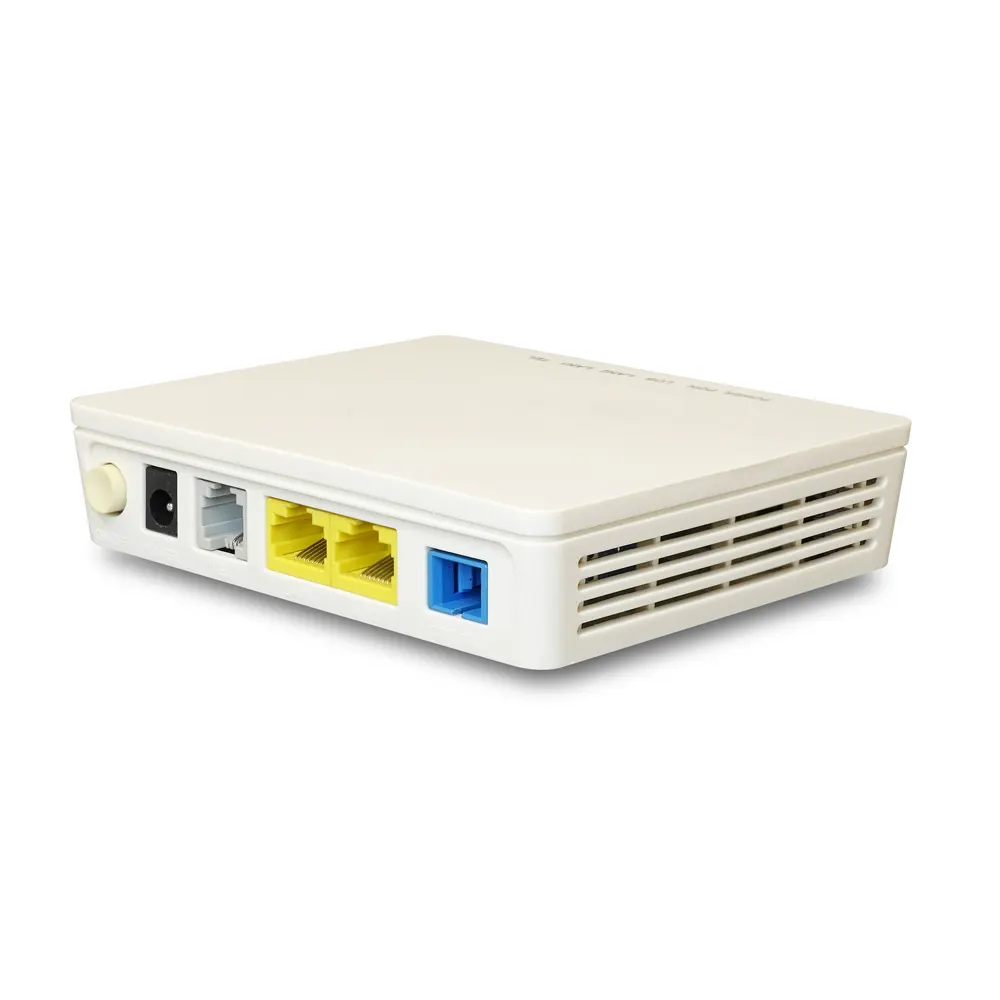

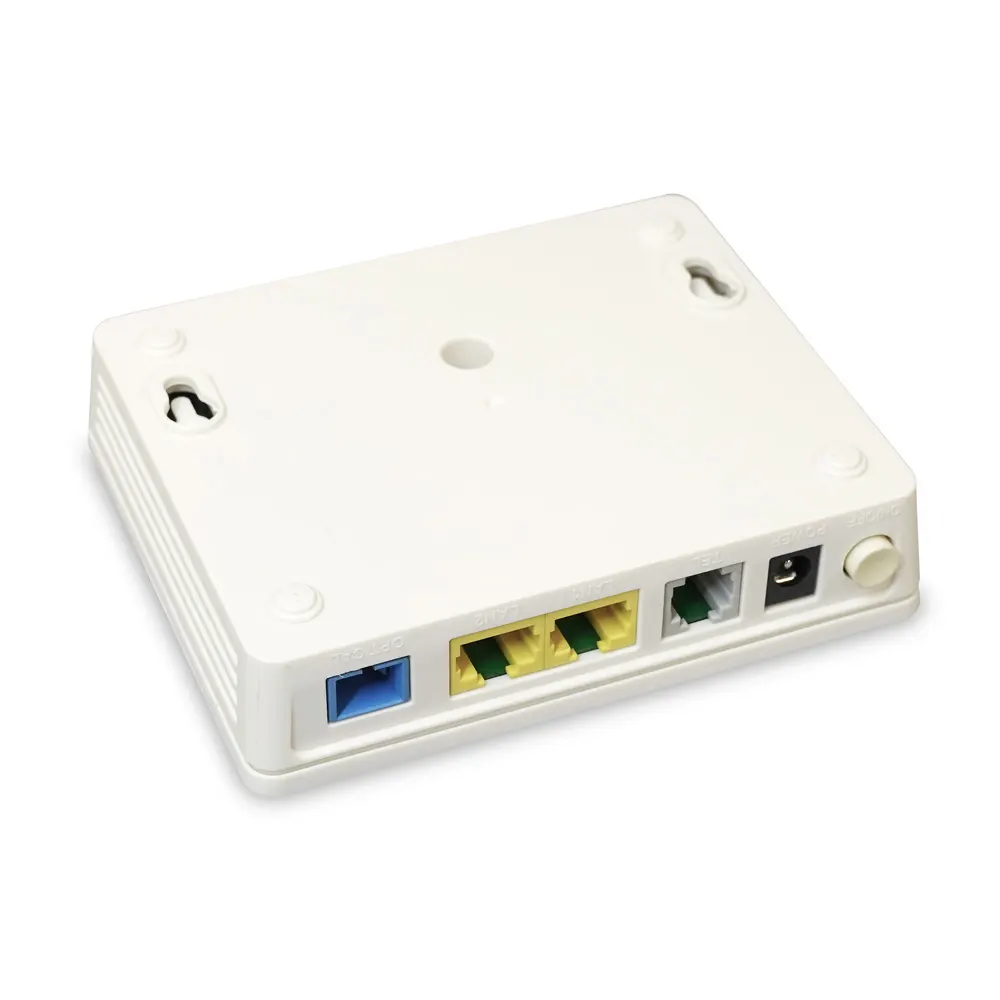

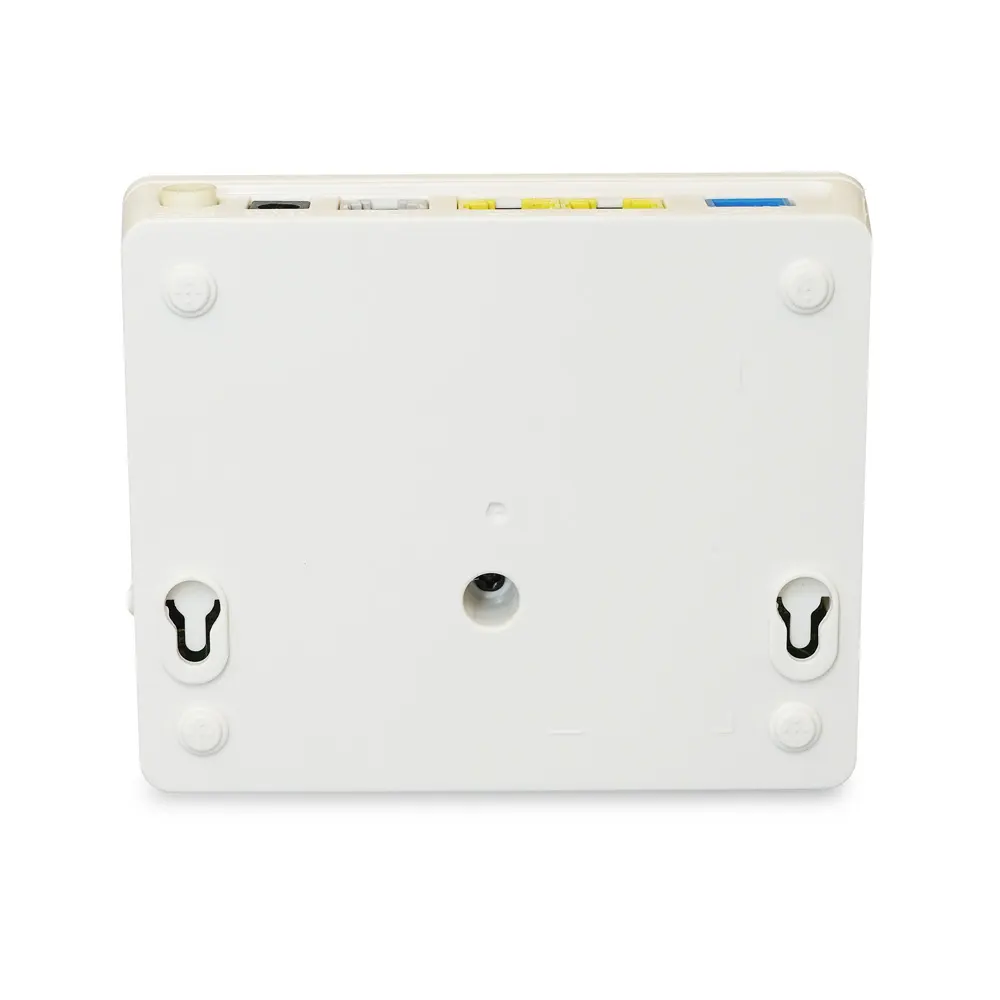

The E62 is a 1GE 1FE Wifi ONU Modem bridge-type Optical Network Terminal (ONT) designed for ultra-wideband access via EPON technology. It combines 1GE, 1FE, and 1POTS interfaces with high-performance forwarding capabilities, ensuring seamless data, voice, and HD video services. Ideal for FTTH deployments and future-ready network scalability.
E62 is a bridge-type ONT of all-optical access solution, which enables users to access ultra-wideband through EPON technology. It supports 1GE 1FE 1POTS Ethernet interface and effectively guarantees the data and HD video service experience through high-performance forwarding capability, providing customers with an ideal all-optical access solution and future-oriented service support capabilities.
Key Features of 1GE 1FE Wifi ONU Modem
- Supports dual-mode (Bridge/NAT)
- VoIP port with G.711/G.729 codecs and fax support
- 802.11b/g/n Wi-Fi (300Mbps, 2T2R external antennas)
- IPv4/IPv6 dual-stack & carrier-grade EPON standards
- Advanced QoS, VLAN, and firewall security
Technical Specifications of 1GE 1FE Wifi ONU Modem
| Category | Details |
|---|---|
| Network Interfaces | 1×GE (10/100/1000Mbps), 1×FE (10/100Mbps), 1×FXS (RJ11) |
| Wireless | 802.11b/g/n, 2.4GHz, 300Mbps, 2 external antennas |
| EPON Parameters | 1.25Gbps symmetric, 20km range, 128-bit OAM encryption |
| Power | 12V/0.5A DC adapter, <9W consumption |
| Dimensions | 11.5×9.5×2.8cm, 0.12kg weight |
Supported Standards & Protocols
- EPON: IEEE 802.3ah, China Telecom/Unicom interworking
- VoIP: ITU-T G.711/G.723.1/G.729, SIP/RFC2833
- Networking: IPv6, VLAN 802.1Q, QoS 802.1P, IGMPv2/MLD
- Security: MD5 authentication, Firewall, DMZ, UPnP
Environmental Conditions
| Parameter | Operating Range | Storage Range |
|---|---|---|
| Temperature | 0°C to 50°C | -40°C to 85°C |
| Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) |
