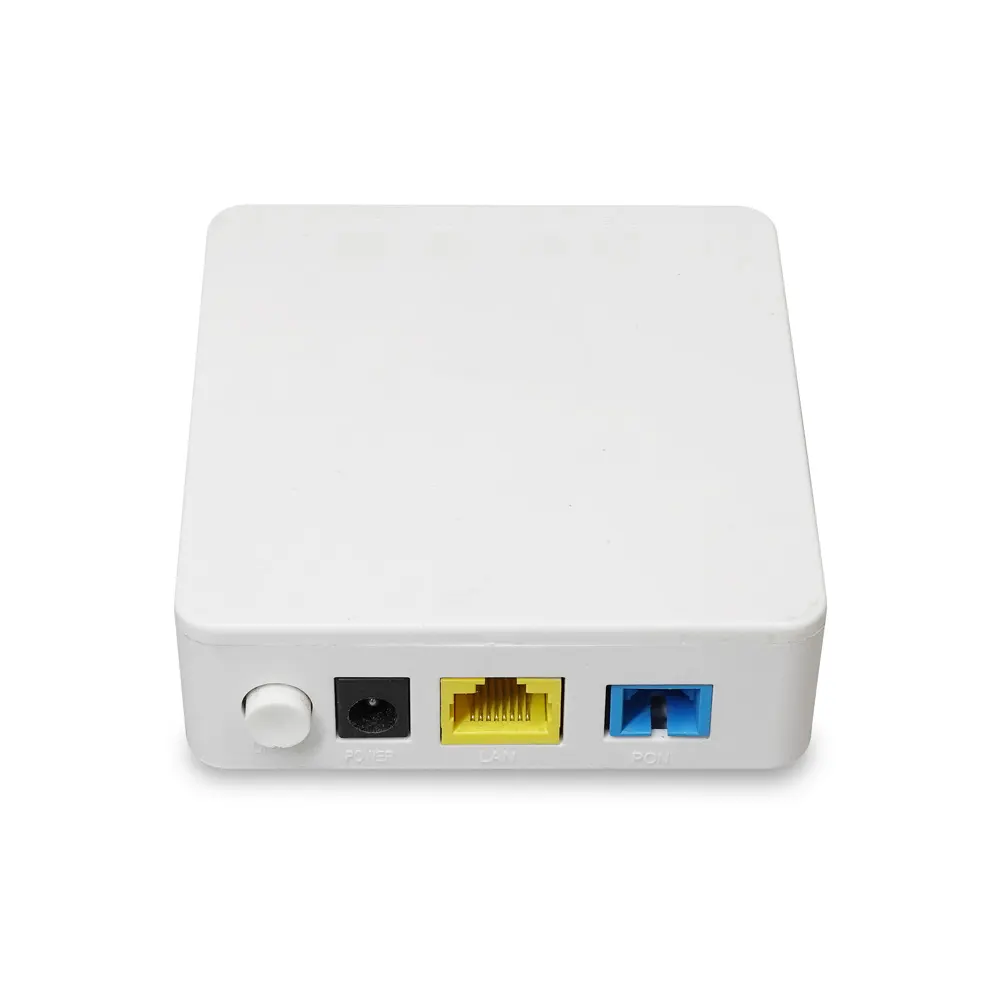

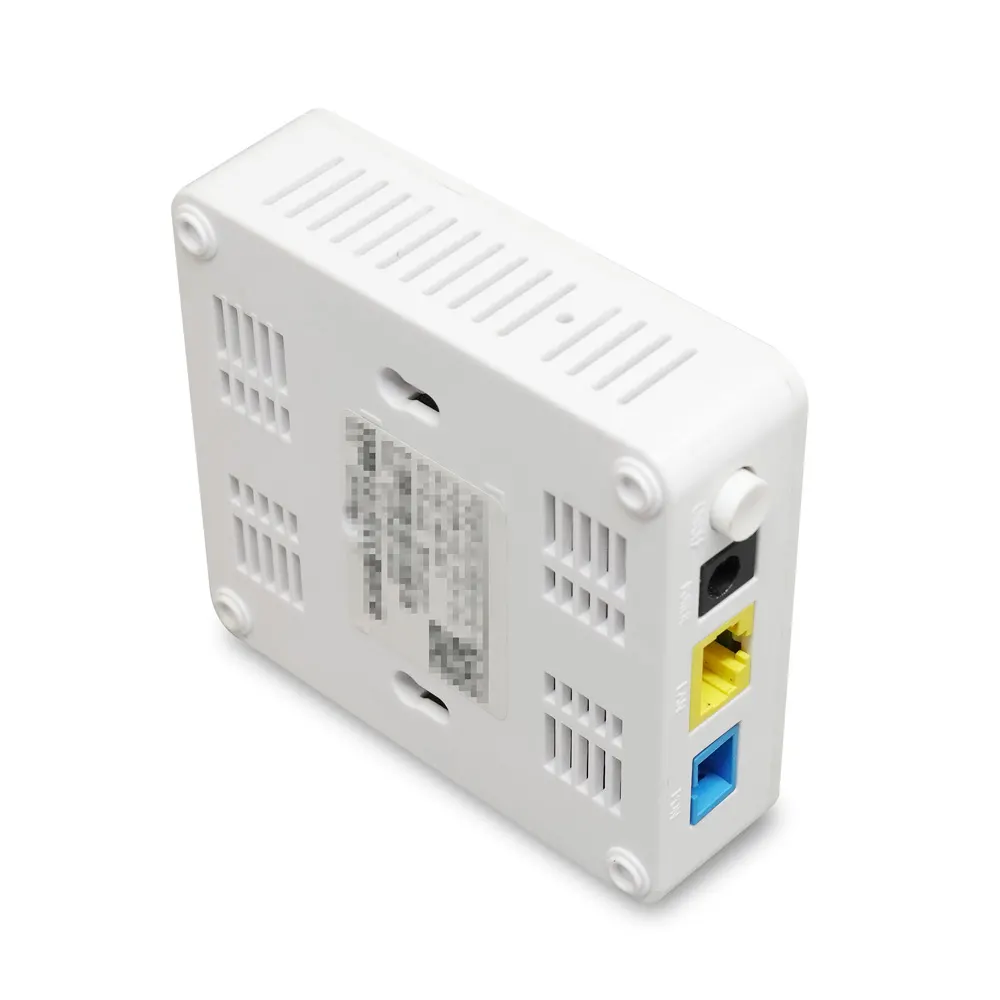

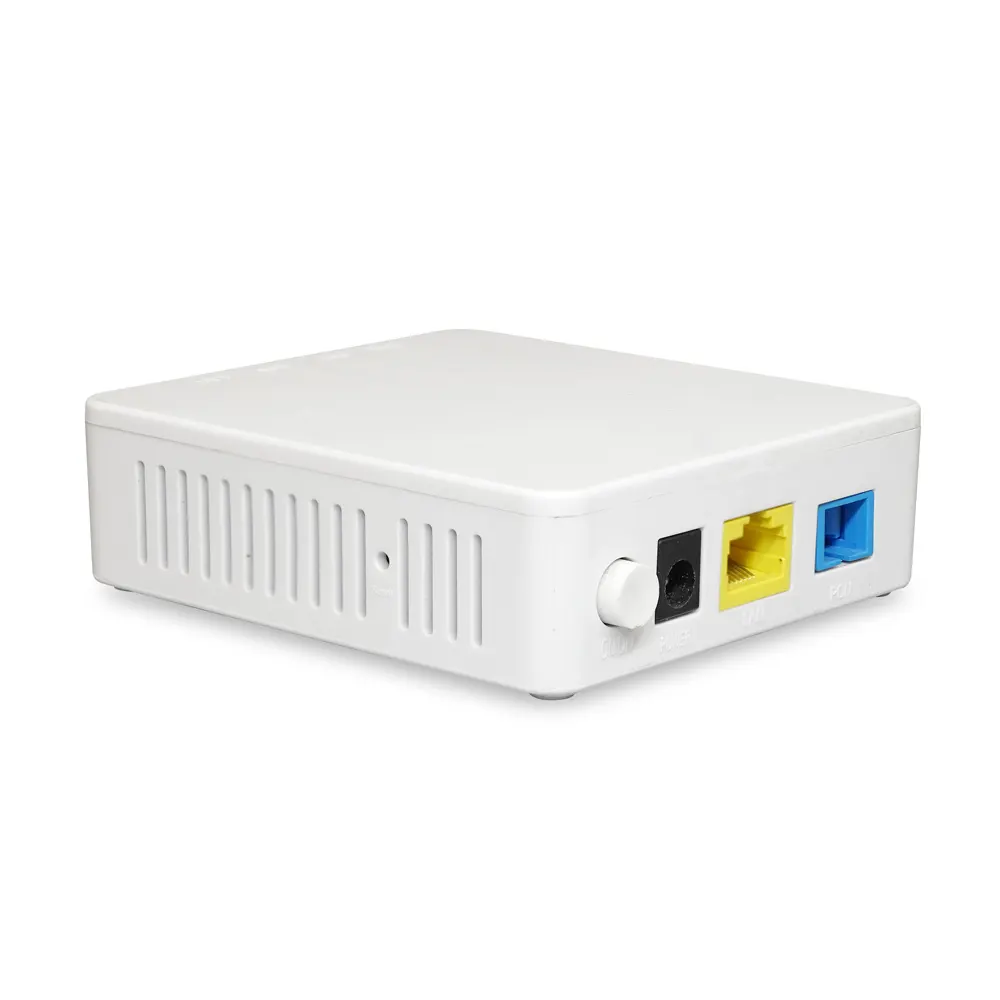

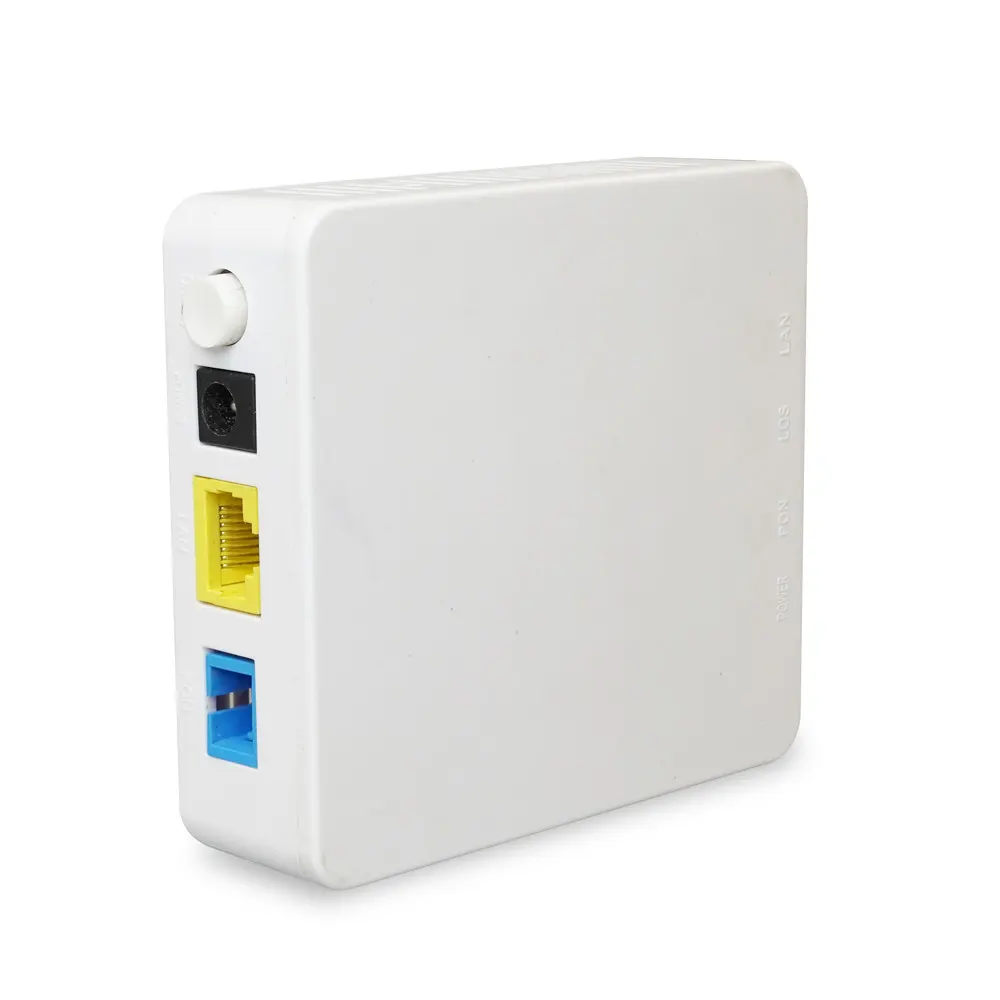

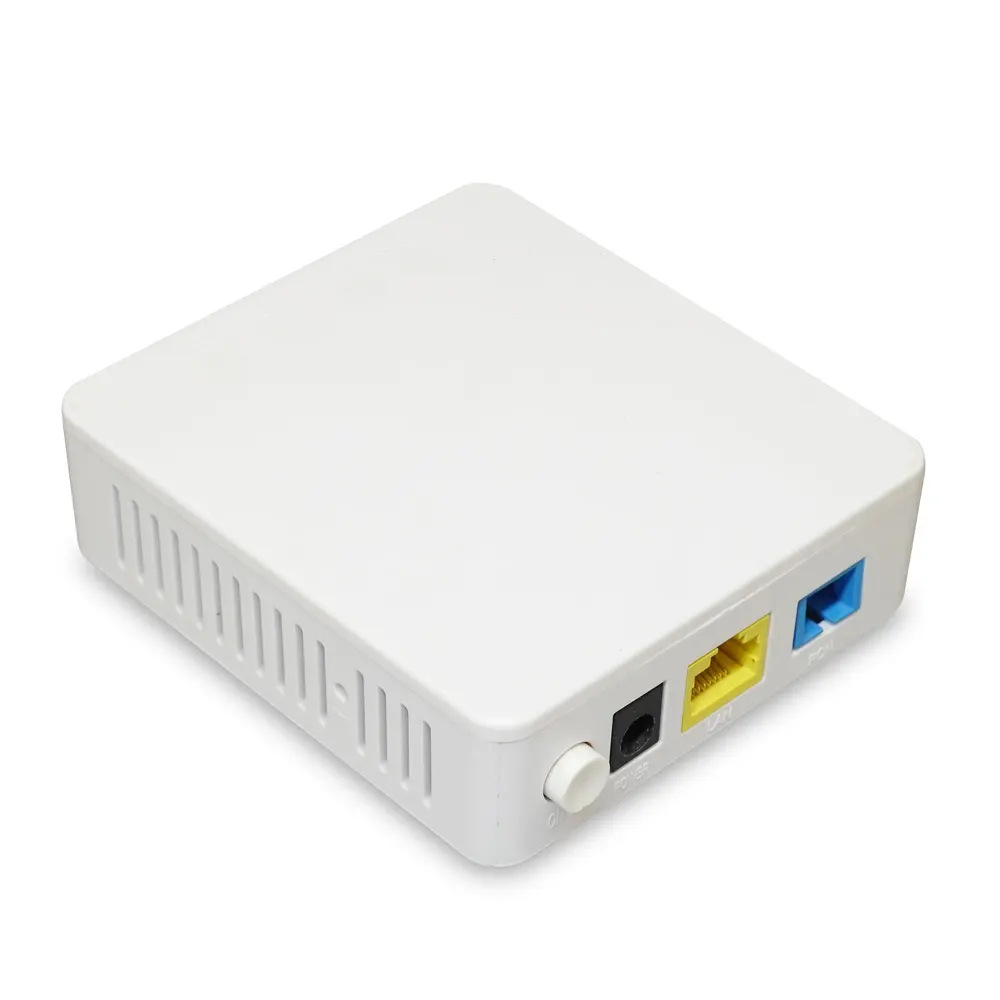

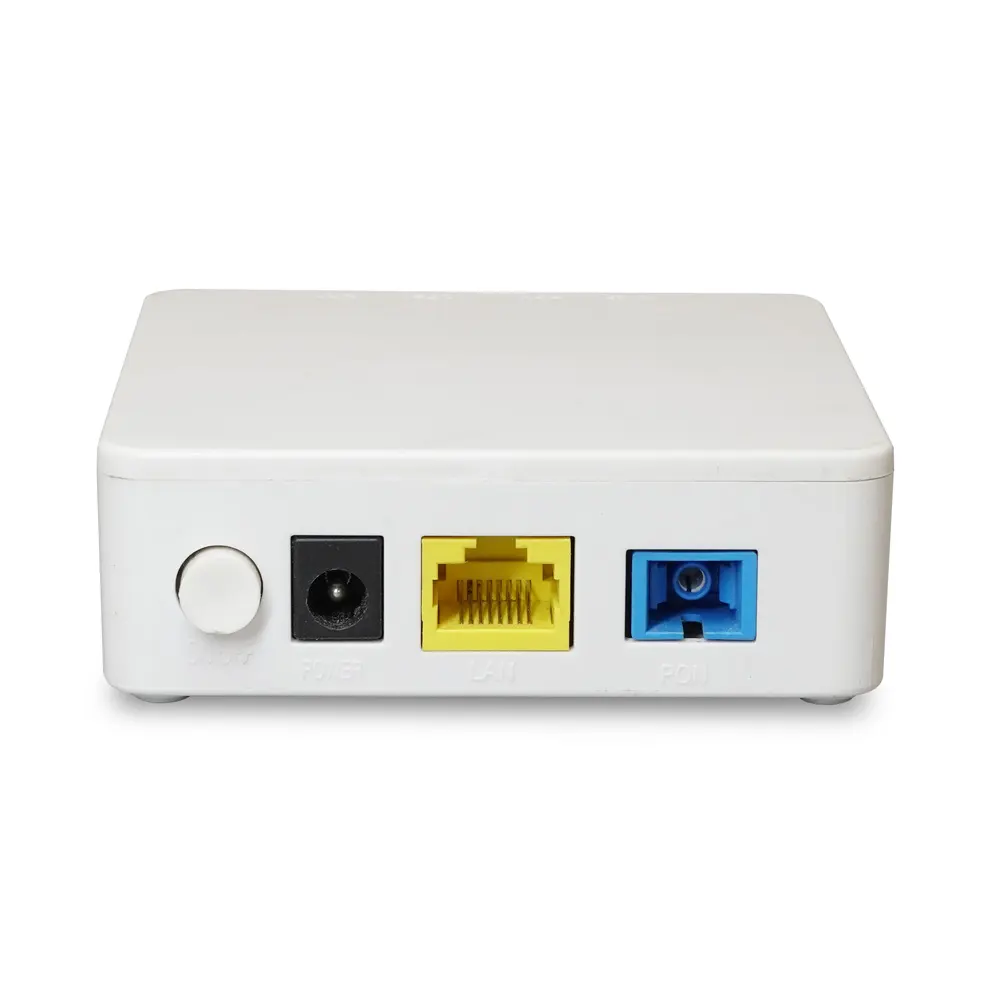

1GE XPON Micro ONT Modem | X61 Fiber Home Gateway Unit
- Interface: 1* G/EPON+1*GE
- Power adapter input: 100V-240V AC, 50Hz-60Hz
- Power Supply: DC 12V/0.5A
- Indicator light: POWER/PON/LOS/LAN1
- Button:Reste Button
- Power Consumption: <18W
- Working temperature: -20℃～+50℃
- Environment humidity: 5% ~ 95% (non-condensing)
- Dimension：78mm x 78mm x 21mm (L×W×H Without antenna)
- Net Weight：0.06Kg
Product Overview
The GL-X8001U-HZ 1GE XPON Micro ONT Modem is a compact residential gateway designed for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments. Compliant with IEEE 802.3ah (EPON) and ITU-T G.984.x (GPON) standards, this carrier-grade device supports dual-mode auto-adaptation for seamless integration with OLTs from multiple vendors.
Key Features
- Dual-standard support: GPON (2.488Gbps down) & EPON (1.244Gbps symmetric)
- Hardware NAT acceleration for high-speed data transmission
- IPv4/IPv6 dual-stack management and routing
- TR-069 remote configuration and maintenance
- Multi-WAN support (PPPoE/DHCP/Static IP/Bridge)
- Advanced QoS with 802.1P prioritization
- Carrier-grade security with firewall and ACL support
Hardware Specifications of 1GE XPON Micro ONT Modem
| Category | Details |
|---|---|
| PON Interface | 1×SC/UPC (GPON/EPON auto-sensing) |
| Ethernet Port | 1×10/100/1000BASE-T RJ45 |
| Power Input | 100-240V AC, 50/60Hz (12V/0.5A DC) |
| Power Consumption | <18W (Typical) |
| Dimensions | 78×78×21mm (0.06kg net weight) |
| Operating Temp | -20℃ to +50℃ |
Technical Parameters of 1GE XPON Micro ONT Modem
| Parameter | GPON Mode | EPON Mode |
|---|---|---|
| Downstream Rate | 2.488 Gbps | 1.244 Gbps |
| Upstream Rate | 1.244 Gbps | 1.244 Gbps |
| Transmission Distance | 0-20km | |
| Optical Sensitivity | -27dBm (RX) | |
| Wavelength | 1310nm(up)/1490nm(down) | 1310nm(up)/1490nm(down) |
Advanced Functionality
- Layer 3 routing with hardware NAT
- VLAN 802.1Q tagging and QoS 802.1P
- IGMP v2/MLD proxy for multicast optimization
- Bi-directional Forward Error Correction (FEC)
- DDNS, DMZ, and UPnP support
- VEIP and PPTP tunneling protocols
Package Contents
- GL-X8001U-HZ ONT Unit (1pc)
- 12V/0.5A Power Adapter
- Product Packaging Box
Shipping Dimensions: 16.4×10.8×4.6cm (0.19kg gross weight)
