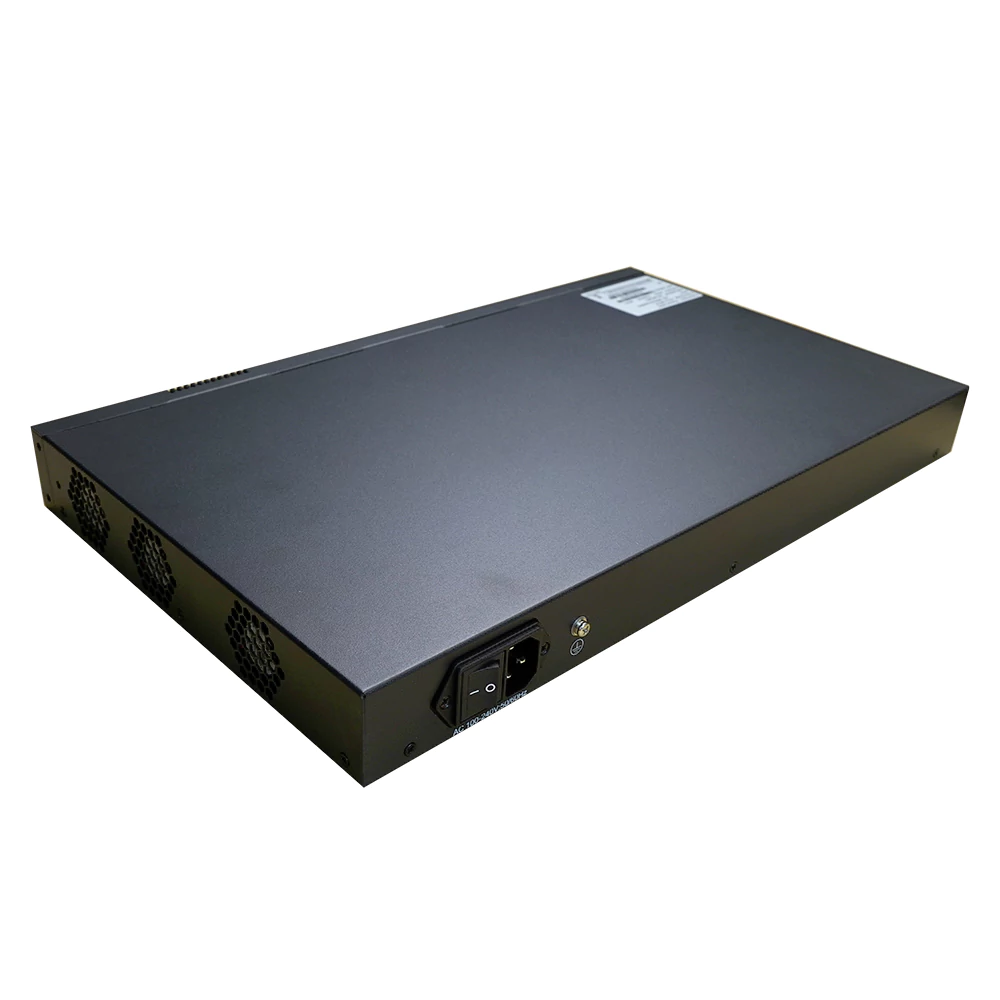

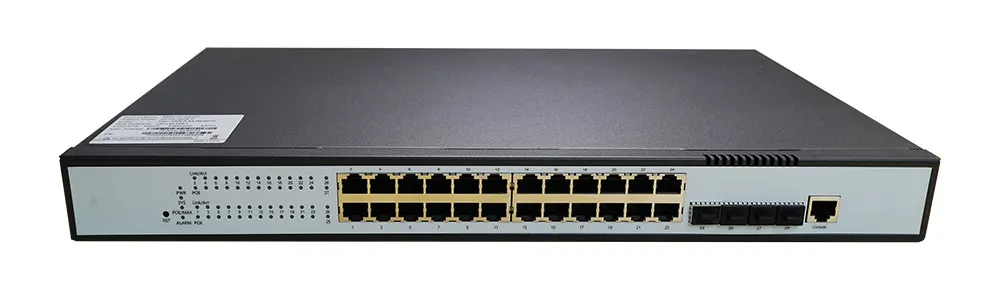

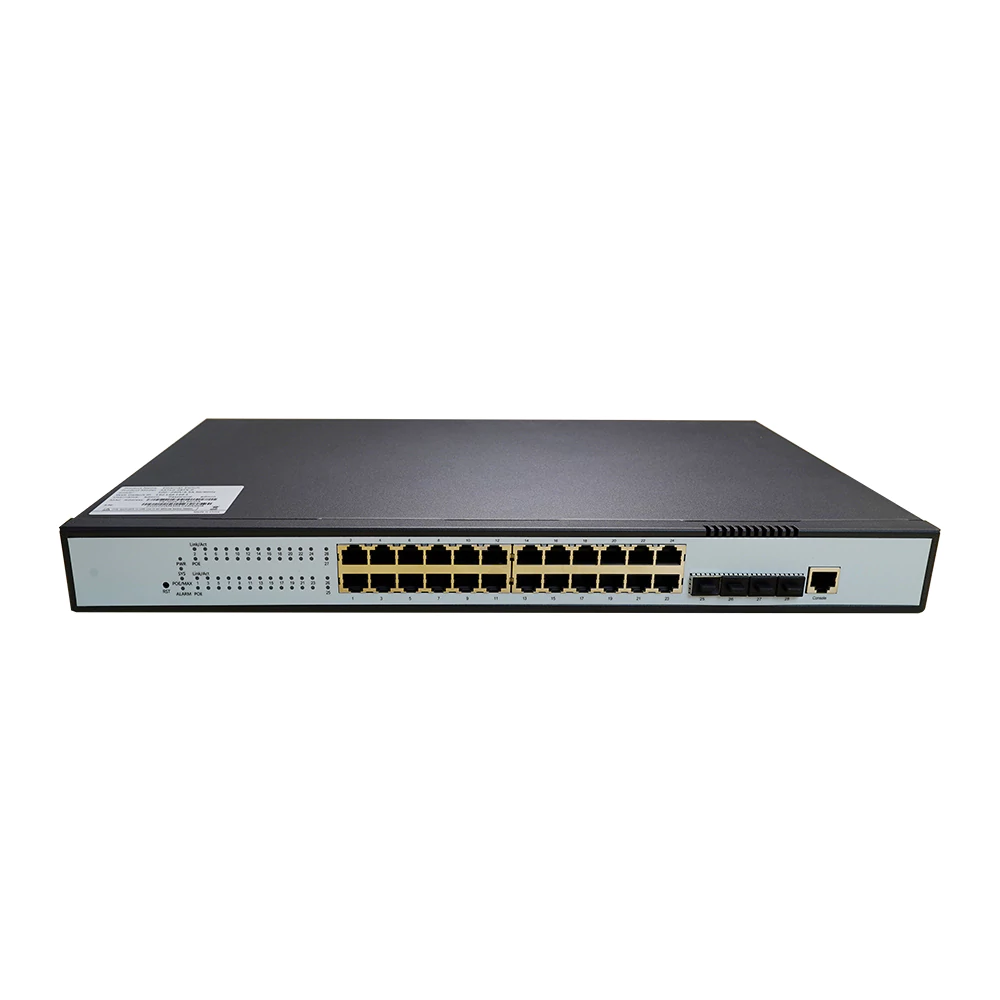

SG6324-ACB 24 Port 10Gb Switch | Layer 3 Managed Switch with 10G Uplink
- Based on Linux operating system，support IPv4/IPv6 dual protocol stack platform
- Support multiple link redundancy and network redundancy protocols such as STP/RSTP/MSTP/ERPS/LACP
Product Overview
The SG6324-ACB is a cost-effective 24 port 10gb switch designed for enterprise networks and carrier environments. Featuring 24 Gigabit Ethernet ports, 4x 10G SFP+ uplinks, and weak Layer 3 routing capabilities, this switch delivers high-performance forwarding, low power consumption (≤22W), and advanced security/QoS features. Perfect for scenarios requiring scalable Gigabit access and 10G backbone connectivity.
Key Features of 24 Port 10Gb Switch
- 24× Gigabit Ports + 4× 10G SFP+ Uplinks: High-density connectivity for endpoints and high-speed uplinks.
- Layer 3 Lite Routing: Supports static routing, RIP/OSPF/BGP/ISIS, and IPv4/IPv6 dual-stack.
- Carrier-Grade Reliability: STP/RSTP/MSTP, ERPS ring protection, and LACP aggregation.
- Advanced Security: 802.1X, ACL filtering, ARP/DDoS protection, and DHCP snooping.
- Smart QoS: Traffic prioritization (802.1P/DSCP), rate limiting, and SP/WRR scheduling.
Hardware Specifications of 24 Port 10Gb Switch
| Attribute | Specification |
|---|---|
| Port | 24*10/100/1000M Base-T, 4*1000M Base-X SFP/10GE SFP+ |
| Chip Solution | Not specified |
| Switching Capacity | 128Gbps |
| Packet Forwarding Rate | 95Mbps |
| MAC Address Table | 16K |
| Multicast Table | 1K |
| Routing Table | 512 |
| Memory and Storage | Memory: 512MB, Storage: 32MB |
| Power Supply | AC: 100 ~ 240V 47/63Hz; DC: 36V ~ 75V |
| Power Consumption | ≤22W |
| Weight | ≤3kg |
| Dimensions (Width x Height x Depth) | 440mm x 210mm x 44mm |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C |
Applications
- Enterprise campus networks with 10G core uplinks
- Carrier edge networks for high-density user access
- Small-to-medium data centers
