X1430C CATV ONT Wifi 6 FTTH Modem – GPON/EPON Dual Mode Adaptive Fiber Terminal.
- 1 * G/EPON interface: SC/UPC/APC interface, GPON standard,EPON IEEE802.3ah
- 4 * Ethernet interface: 10 MBPS / 100 MBPS, 1000 MBPS, RJ – 45, IEEE802.3-2005 standard
- 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1*CATV, C/N:≥43dB, C/CTB:≥55dB, C/CSO≥55dB, MER≥32dB, BER≤1*10E-6
- 1 * USB interface: standard USB 3.0 interface
- Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))
Overview
The X1430C is a high-performance CATV ONT Wifi 6 FTTH Modem designed for operators, supporting dual-mode adaptive GPON/EPON technology. It delivers ultra-broadband access with AX3000 Wi-Fi 6, 4 Gigabit Ethernet ports, VoIP, CATV interface, and USB 3.0 connectivity, ideal for fiber-to-the-home (FTTH) deployments.
The X1430C is a XPON(GPON and EPON dual mode adaptive) optical terminal access device that is highly integrated with dual-frequency Wi-Fi6(AX3000Mbps). It is an optical fiber to the home（FTTH) terminal product of the operator. It supports ultra-bandwidth access through G/EPON upstream technology, and provides users with basic WIFI functions, routing, VOIP, gigabit Ethernet functions and client-side CATV interface functions. The X1430-C upstream network ports are G/EPON ports. The downstream user ports include four GE electrical ports, one USB port, one VOIP port, one CATV port, and one AX3000 WiFi6 WLAN port.
Key Features OF CATV ONT Wifi 6 FTTH Modem
- Dual-mode GPON/EPON (Class B+/PX20+)
- AX3000 Dual-Band Wi-Fi 6 (574Mbps + 2402Mbps)
- 4× Gigabit Ethernet Ports
- CATV Interface with C/N ≥43dB, BER ≤1×10⁻⁶
- VoIP Support (G.711, G.729, G.722)
- USB 3.0 Port for Expanded Storage
- FTTH/FTTB/FTTX Deployment Ready
Hardware Specifications OF CATV ONT Wifi 6 FTTH Modem
| Parameter | Details |
|---|---|
| Flash Memory | 256MB NAND |
| RAM | 512MB DDR3 |

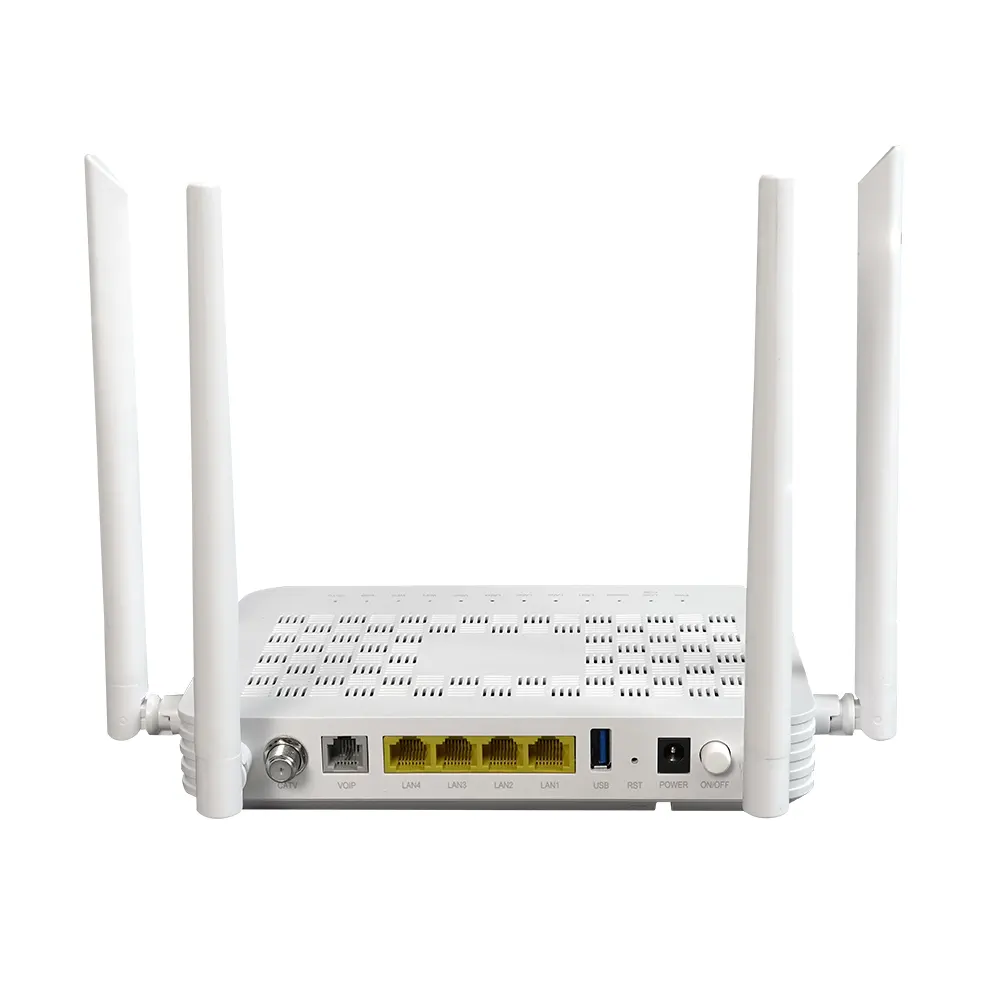

| Ports | 4× RJ45 (GE), 1× RJ11 (POTS), 1× CATV, 1× USB 3.0, 1× SC/UPC/APC |
| Power Supply | 12V/1.5A DC |
WiFi 6 (AX3000) Specifications
| Feature | Specification |
|---|---|
| Protocols | 2.4GHz: 802.11b/g/n/ax 5GHz: 802.11a/n/ac/ax |
| Transmit Power | 2.4G: 100mW, 5G: 200mW |
| Antenna | 4× 5dBi (2×2 MIMO Dual-Band) |
| Security | WPA3, WPA2-PSK, AES/TKIP Encryption |
| Max Speed | 574Mbps (2.4GHz) + 2402Mbps (5GHz) |
CATV Interface Details
| Parameter | Value |
|---|---|
| RF Bandwidth | 47-1000 MHz |
| Output Level | 76dBuV |
| C/N Ratio | ≥43dB |
| MER | ≥32dB |
| BER | ≤1×10⁻⁶ |
Environmental Conditions
| Operating Temperature | 0℃ to 45℃ |
| Storage Temperature | -20℃ to 70℃ |
| Humidity | 5% to 95% (non-condensing) |
