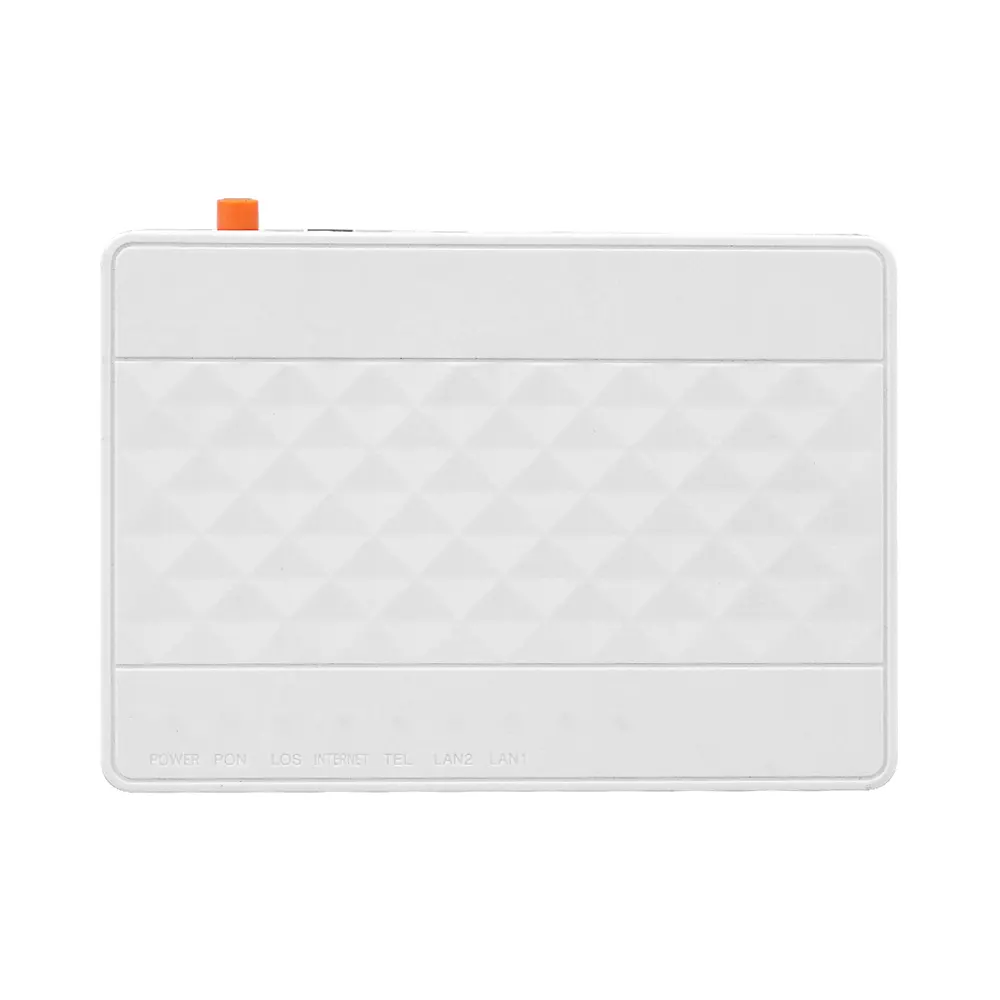

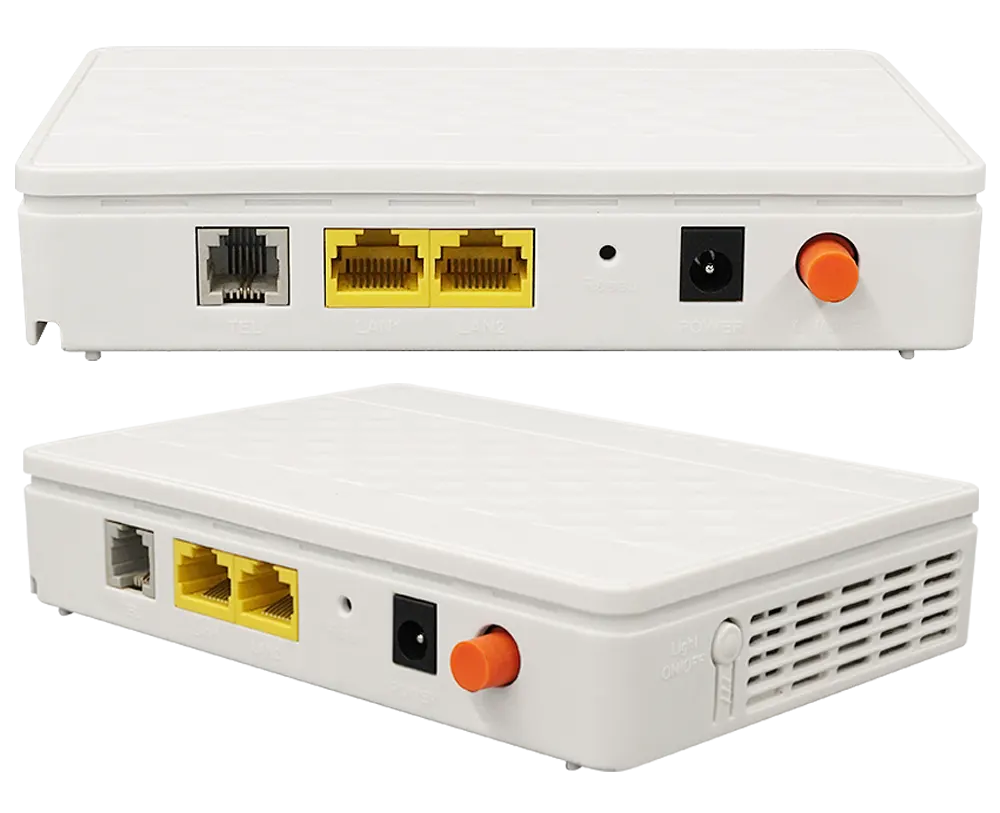

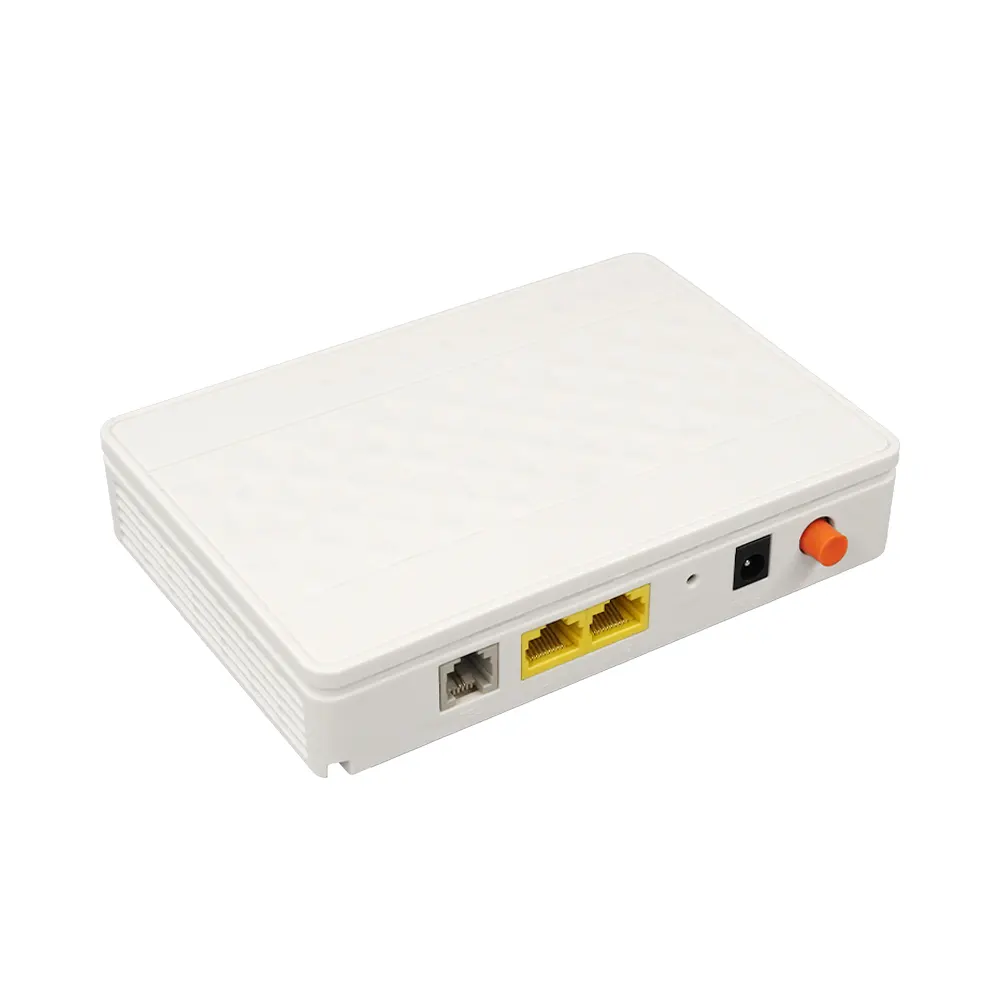

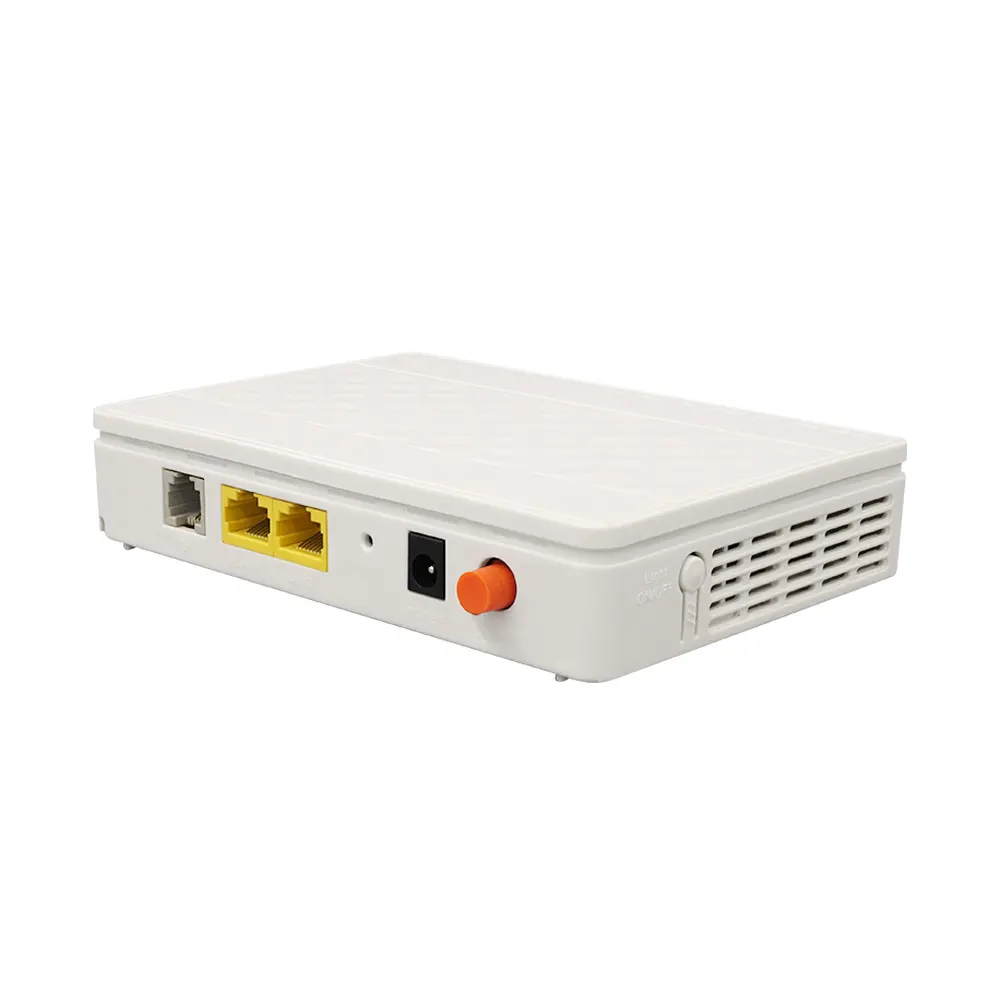

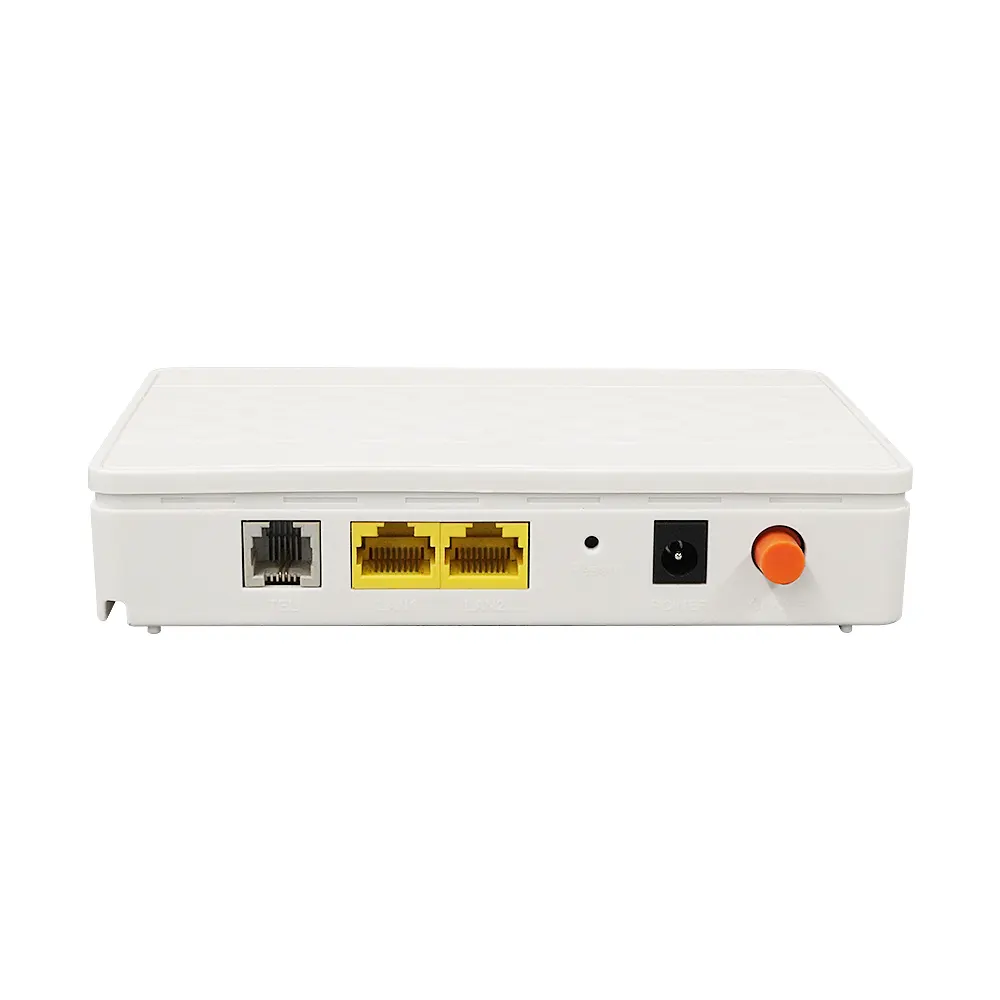

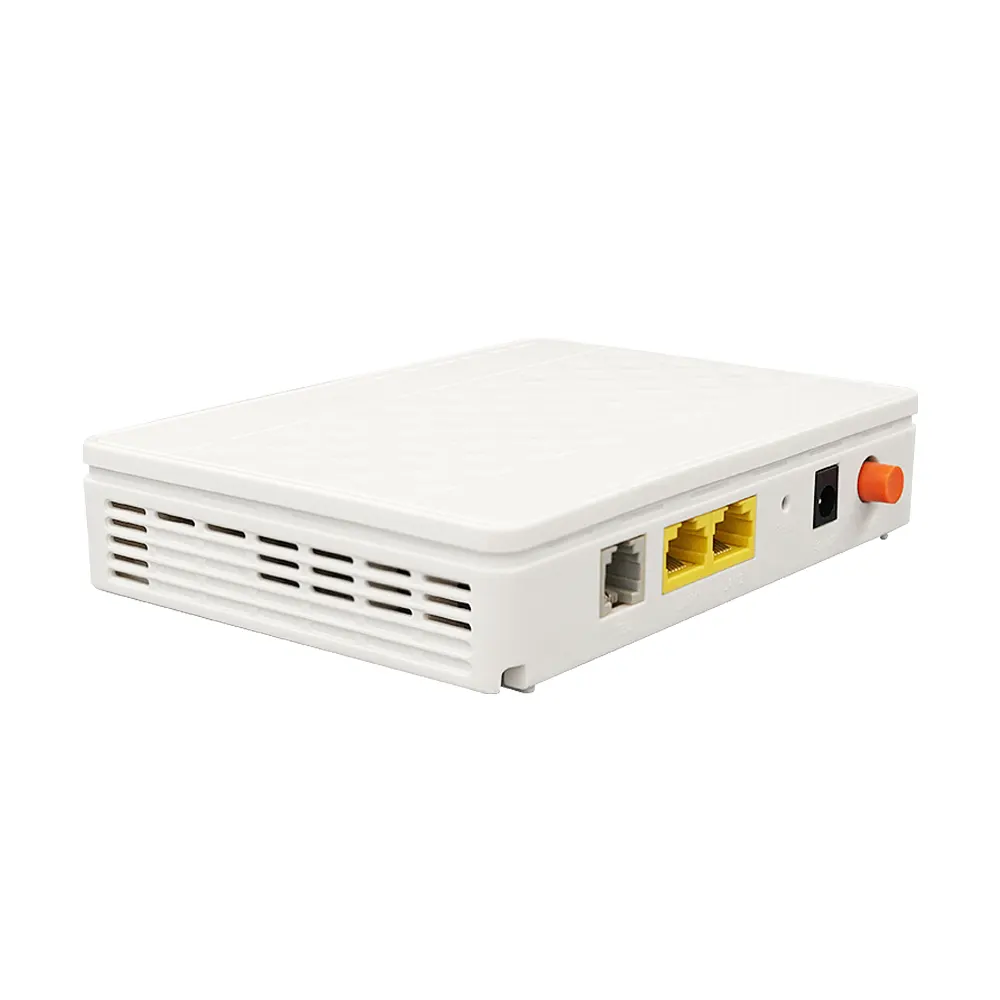

Fiber ONT Modem 1GE 1FE – Built-in Wifi 300Mbps GPON/EPON Terminal
- HGU ONU product modality, support bridge and NAT mode.
- BOB product process.
- 802.11b/g/n wireless access.
- Provide VOIP port,support connecting normal telephone.
- 12V/1.5A external power.
Product Overview
The Fiber ONT Modem 1GE 1FE is a versatile XPON terminal designed for high-reliability FTTH deployments. This multi-service ONU supports 1 Gigabit Ethernet port, 1 Fast Ethernet port, and 1 POTS interface, ensuring seamless integration for broadband, voice, and wireless services. Compliant with IEEE 802.3ah (EPON) and ITU-T G.984 (GPON) standards.
Key Features of Fiber ONT Modem 1GE
| Feature | Description |
|---|---|
| Network Interfaces | 1×GE (Gigabit Ethernet) + 1×FE (Fast Ethernet) + 1×POTS (RJ11) |
| Wireless Support | 802.11b/g/n Wi-Fi (300Mbps, 2T2R antennas) |
| Operation Modes | Bridge, NAT, Router (PPPoE/DHCP/Static IP) |
| Power Supply | 12V/1.5A DC adapter (Power consumption <9W) |
| Standards Compliance | IEEE 802.3ah (EPON), ITU-T G.984 (GPON), RFC2833, SIP |
Technical Specifications
Hardware Parameters of Fiber ONT Modem 1GE
| Parameter | GPON | EPON |
|---|---|---|
| Downstream Rate | 2.488Gbps | 1.25Gbps |
| Upstream Rate | 1.244Gbps | 1.25Gbps |
| Optical Power | +0.5~+5dBm | -1~+4dBm |
| Sensitivity | -28dBm | -26dBm |
VOIP Features
| Protocol | Codec | Functionality |
|---|---|---|
| SIP | G.711/G.723.1/G.729 | Echo cancellation (128ms), T38 fax, Multi-party conferencing |
Advanced Functions
- QoS Support: SP/WRR scheduling, 802.1p priority mapping
- Security: MD5 authentication, 802.1x access control
- Management: TR069, OAM, Batch firmware upgrade
- Environmental: Operating temperature 0°C–50°C, Plastic casing
Network Applications
Ideal for Fiber-to-the-Home (FTTH) deployments, this fiber ONT modem enables triple-play services (Internet, VoIP, IPTV) with carrier-grade reliability. Supports 20km transmission distance and dynamic bandwidth allocation.
Dimensions & Weight
- Size: 160mm(L) × 114mm(W) × 29mm(H)
- Weight: <0.3kg
