FTTH ONU Modem WiFi Dual-Band Router | GPON/EPON Gateway with AC1200
- Interface: 1* G/EPON+4*GE+2.4G/5.0G WLAN+1*FXS+2*USB
- Power adapter input: 100V-240V AC, 50Hz-60Hz
- Power Supply: DC 12V/1.5A

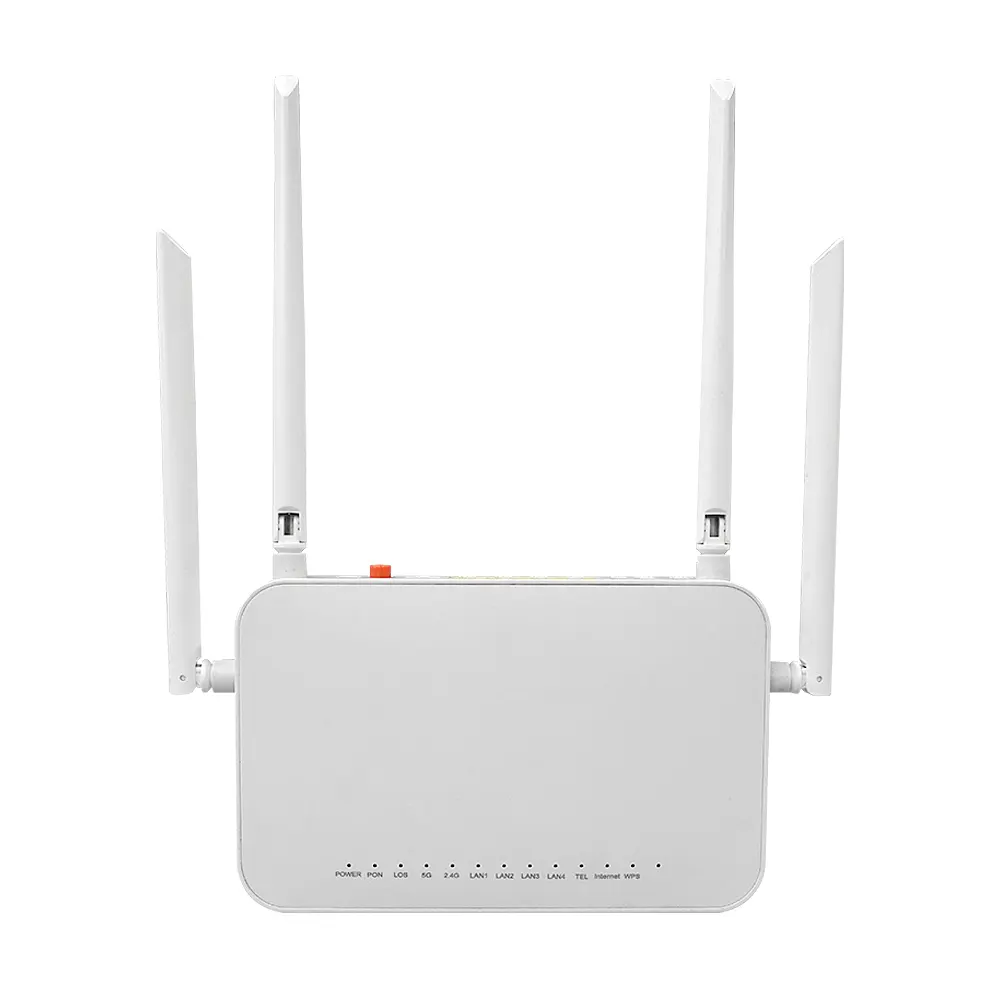

- Indicator light: POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4/FXS1/FXS2/2.4G/5G
- Button: Power switch Button, Reset Button, WLAN Button, WPS Button
- Power Consumption: <18W
- Working temperature: -20℃～+50℃
- Environment humidity: 5% ~ 95% (non-condensing)
- Dimension：205mm x155mm x30mm (W x D x H)
Product Overview
This is a highly configurable FTTH ONU Modem WiFi Dual-Band Router XPon ONT Modem Router with 2.4Ghz 5.8Ghz dual-band Wifi solution, supports AC1200, and the maximum wireless transmission rate is up to 1200Mbps.This Wifi ONT has 4 Gigabit LAN ports, 2 USB ports, and 1 POTS port. This product is fully configured and cost-effective, welcome to contact us for more information.
Key Features OF FTTH ONU Modem WiFi Dual-Band Router
- Compliance: IEEE 802.3ah (EPON) & ITU-T G.984.x (GPON)
- Dual-Band WiFi: 2.4GHz (300Mbps) + 5.8GHz (866Mbps)
- IPv4/IPv6 Dual Stack & Hardware NAT
- TR-069 Remote Management & EasyMesh Support
- VoIP Ready: 1x FXS Port with G.711 Codec
- Layer 3 Gateway with Multiple WAN Modes
Hardware Specifications of FTTH ONU Modem WiFi Dual-Band Router
| Category | Details |
|---|---|

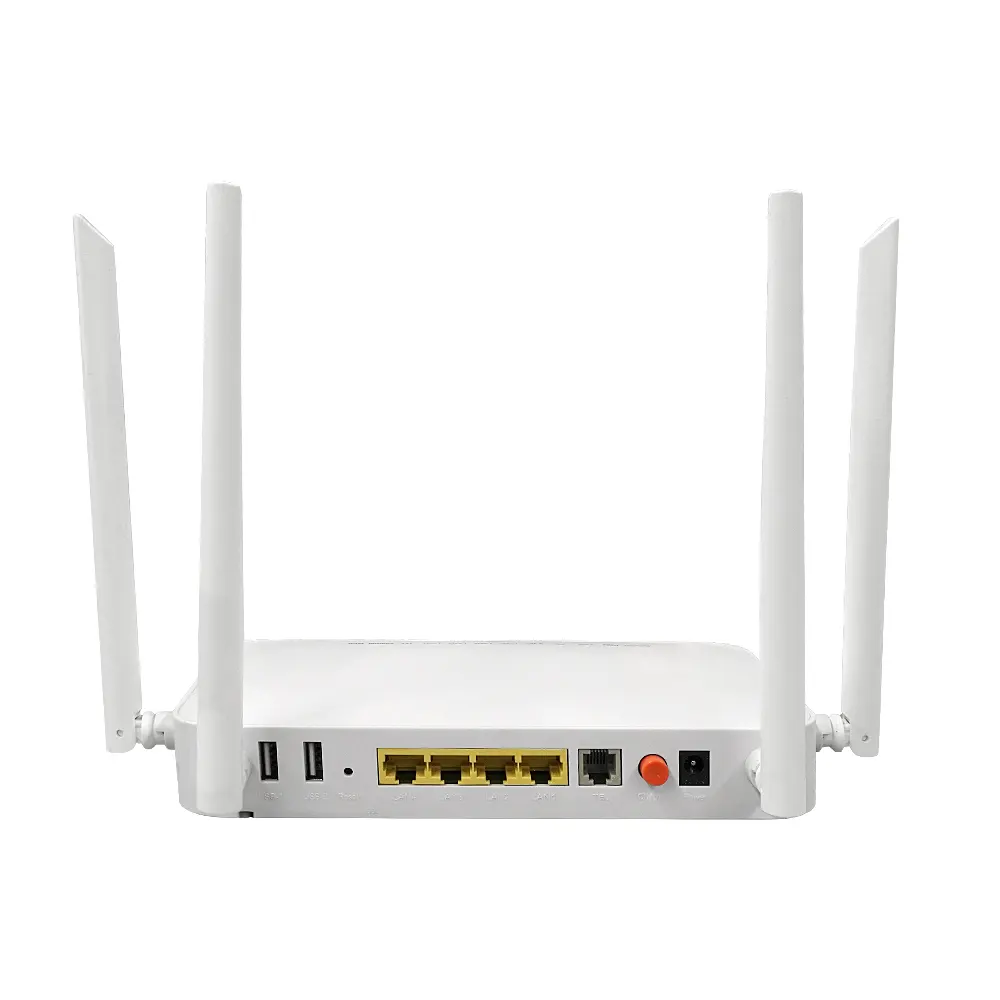

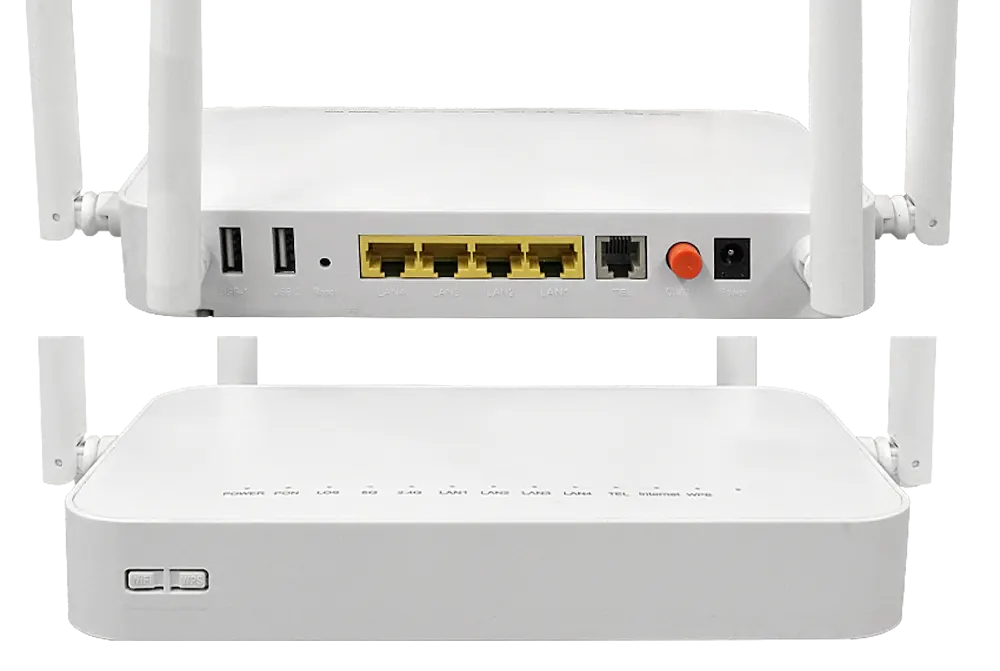

| Interfaces | 1x GPON/EPON | 4x GE Ports | 1x FXS (RJ11) | 2x USB |
| Wireless | Dual-Band AC1200 (802.11a/b/g/n/ac), 4x External Antennas (5dBi) |
| Power | Input: 100-240V AC | Output: DC 12V/1.5A | Consumption: <18W |
| Dimensions | 205mm x 130mm x 38mm | Net Weight: 0.38Kg |
| Environment | Temperature: -20℃ to +50℃ | Humidity: 5%–95% (Non-condensing) |
PON Interface Details
| Parameter | Specification |
|---|---|
| Type | SC/UPC, CLASS B+ |
| Transmission | Distance: 0–20km | Wavelength: Uplink 1310nm / Downlink 1490nm |
| Rate (GPON) | Upstream: 1.244Gbps | Downstream: 2.488Gbps |
| Rate (EPON) | Symmetrical 1.244Gbps |
Advanced Functionality
- Multi-WAN Support: PPPoE/DHCP/Static IP/Bridge
- Layer 2 Features: VLAN, QoS, ACL, IGMP Snooping
- Security: SPI Firewall, DMZ, UPnP, DDNS
- Auto-Detect EPON/GPON Mode
- Bi-directional FEC for Enhanced Signal Integrity
Package Contents
- ONU Modem Router Unit
- 12V/1.5A Power Adapter
- 4x Dual-Band Antennas
- Quick Start Guide
