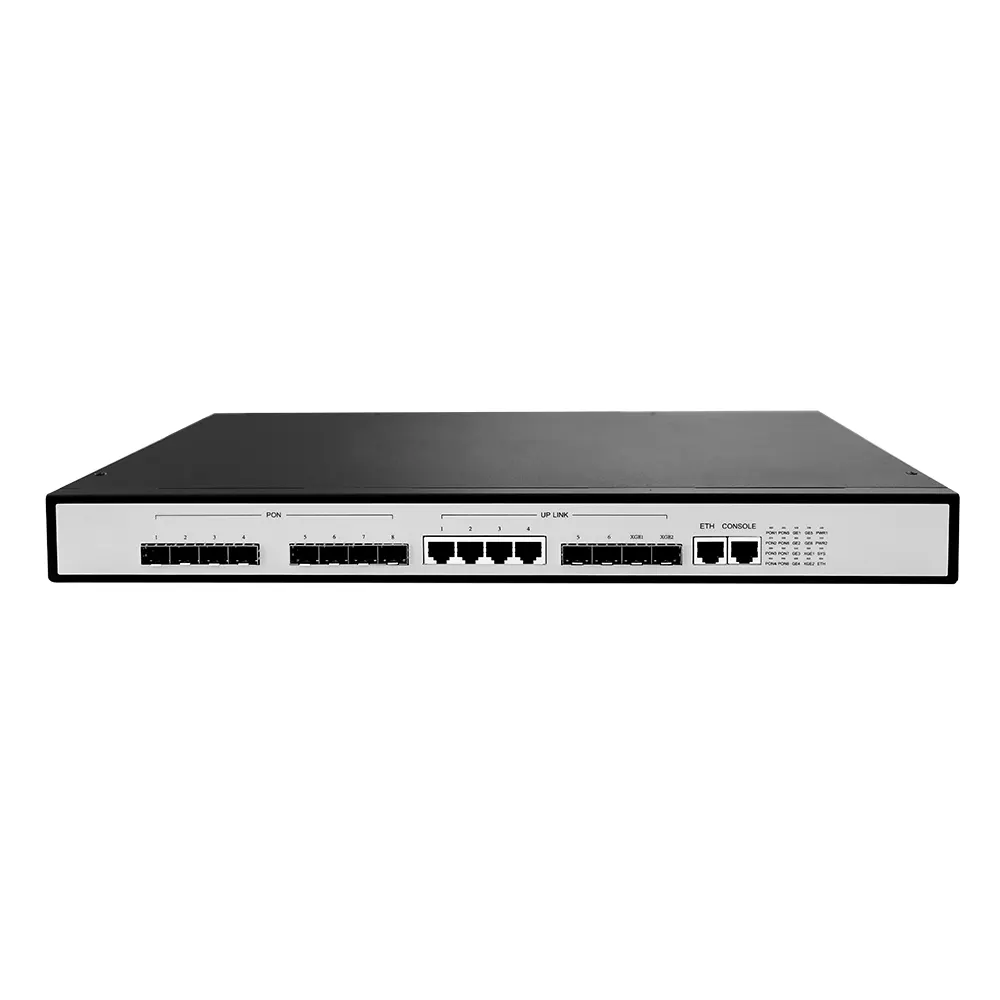

GPON Fiber Optic OLT | High-Performance 8 Ports OLT Optical Line Terminal Device
- 1u 19 inch
- 1+1 power redundancy
- 8 * fixed GPoN port
- 4GE RJ45,2*GE SFP port, 2*10GE SFP+ port
- 1* console port, 1*ETH port
Product Overview
The GT0816-XH is a high-performance GPON Fiber Optic OLT designed for robust fiber access networks. With 8 fixed GPON ports, 10GE uplinks, and advanced management capabilities, this device is perfect for FTTH, enterprise, and large-scale deployments.
Key Features of GPON Fiber Optic OLT
- 8x GPON Ports: High-density fiber access for large-scale deployments
- 10GE Uplinks: 2x 10GE SFP+ ports for high-speed backbone connectivity
- Redundancy Design: Dual power supply for uninterrupted operation
- Advanced Management: WEB GUI, CLI, Telnet, and SNMP support
- Enterprise-Grade Security: Port isolation, MAC filtering, and anti-DDoS protection
Technical Specifications of GPON Fiber Optic OLT
| Category | Details |
|---|---|
| Switching Capacity | 52 Gbps |
| Service Ports | 8x GPON, 4x GE RJ45, 2x GE SFP, 2x 10GE SFP+ |
| Redundancy | Dual power supply (AC/DC) |
| Power Supply | AC: 100-240V, 50/60Hz |
| Power Consumption | 55W |
| Dimensions | 440mm x 44mm x 350mm |
| Weight | ≤5kg (fully loaded) |
| Operating Temperature | -10°C to +55°C |
Applications
- FTTH/FTTO Deployments
- Enterprise Networks
- Data Center Connectivity
- High-Speed Backbone Networks
Advanced Functions
GPON Management
- ONT auto-discovery & remote firmware upgrade
- Dynamic Bandwidth Allocation (DBA)
- PON port optical parameter detection
Layer 2 Switching
- 4K VLANs, Port Isolation, Rate Limiting
- STP/RSTP/MSTP for loop prevention
- Link aggregation and port mirroring
Security Features
- Port-based MAC limiting and filtering
- Anti-DDoS and anti-ARP spoofing
- IP-MAC-VLAN binding for enhanced security
Ordering Information
| Model | Port Configuration | Power Options |
|---|---|---|
| GT0816-XACG | 8x GPON, 4x GE RJ45, 2x GE SFP, 2x 10GE SFP+ | Dual AC/DC |
