ET0816-XH OLT EPON 8 Port 10G SFP+ | High-Capacity Optical Line Terminal
Product Overview

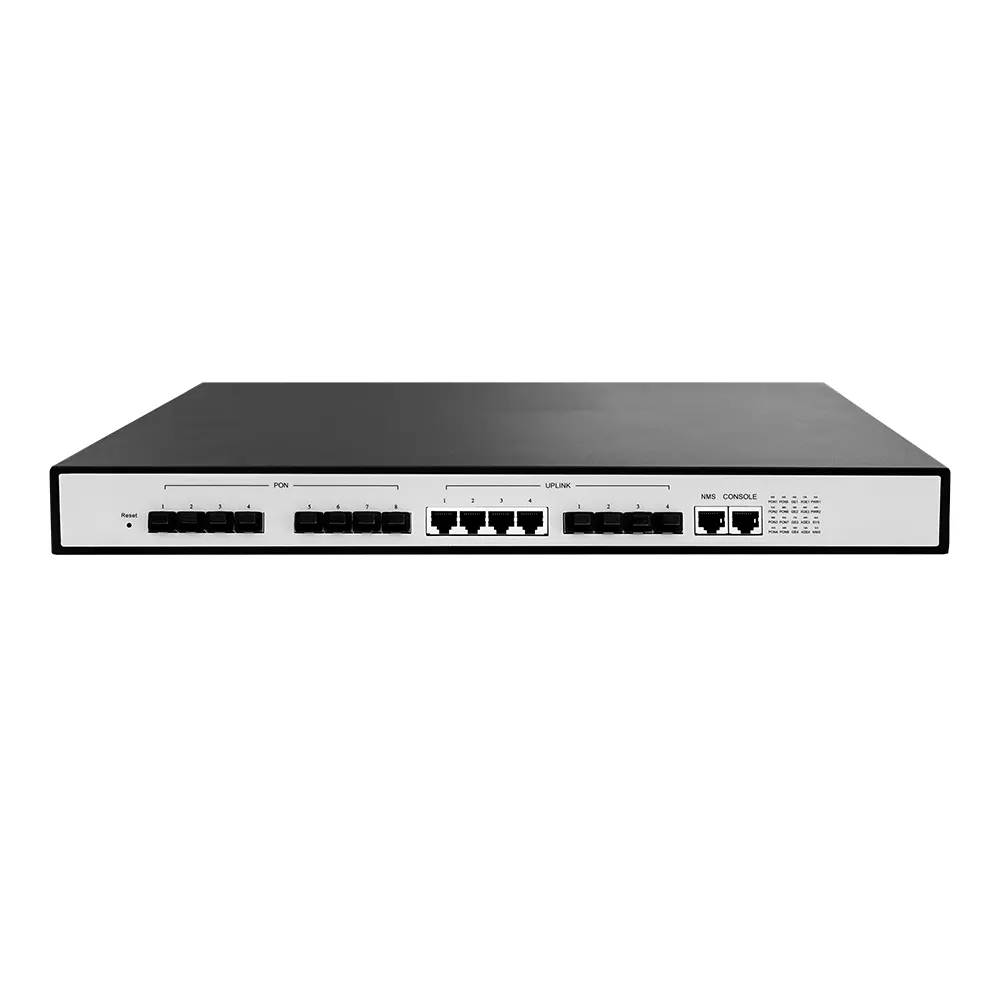

The OLT EPon 8 Port ET0816-XH is a high-performance 1U EPON OLT designed for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments. With 8 PON ports and 10G SFP+ uplinks, this aggregation switch supports up to 512 ONUs, delivering carrier-grade reliability and advanced traffic management for ISPs and network operators.
Key Features of OLT EPon 8 Port
- High Capacity: Supports 64 ONUs per PON port, 512 ONUs total
- 10G Uplinks: 4×10G SFP+ uplink options for high-speed backhaul
- Advanced QoS: Traffic shaping based on port, VID, TOS, and MAC
- Robust Security: 802.1X authentication, ACL, and PON data encryption
- Carrier-Grade Management: CLI/WEB/SNMP/Cloud, remote diagnostics
Technical Specifications of OLT EPon 8 Port
| Category | Details |
|---|---|
| PON Ports | 8×EPON (100BASE-PX20+/PX20++/PX20+++) |
| Uplink Interfaces | 4×10/100/1000M RJ45 + 4×10G SFP+ |
| Dimensions | 442mm × 360mm × 44mm (1U) | <5kg |

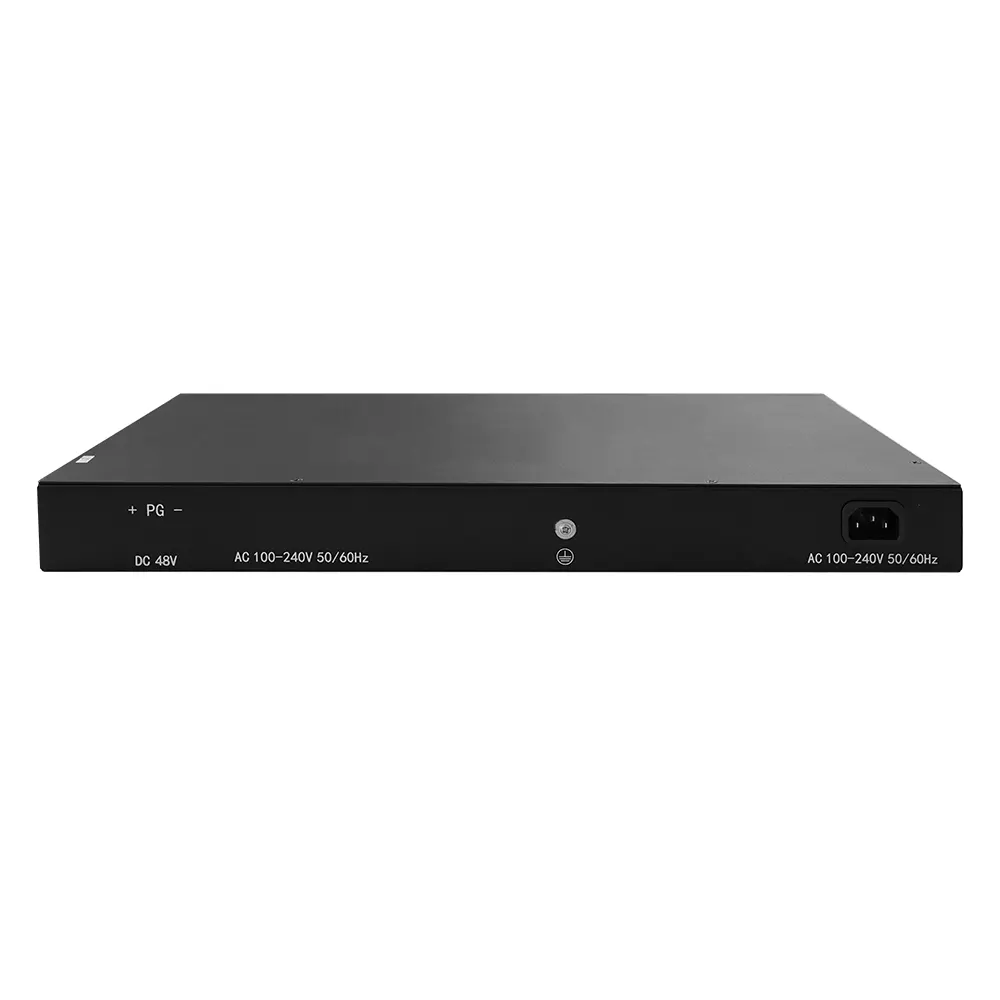

| Power | AC 100V~240V, 50/60Hz (Dual PSU optional) |
| Environment | Operation: -10°C~60°C | Humidity: 5%~95% |
| Layer 2/3 Features | VLAN, RSTP/MSTP, IGMP Snooping/Proxy, QoS |
| Management | CLI/WEB/SNMP/Cloud, SSHv1/v2, FTP/TFTP upgrade |
Advanced Functionality
Network & Security
- 16K MAC address table with sync address management
- Port isolation, mirroring, and aggregation (802.3ad)
- ACL-based traffic filtering and 802.1X port control
Traffic Management
- Dynamic Bandwidth Allocation (DBA) for upstream/downstream
- Broadcast storm control and traffic shaping
- VLAN stacking, translation, and trunking
Applications
- FTTH/FTTB broadband access networks
- ISP aggregation and backhaul solutions
- Enterprise campus network deployments
- Multicast IPTV and VoIP service delivery
Why Choose ET0816-XH?
Engineered for scalability, the ET0816-XH combines compact 1U design with enterprise-grade features. Its support for auto-registration and loop-back testing simplifies deployment, while advanced diagnostics ensure rapid fault resolution. With compliance to IEEE 802.3ah EPON standards and YD/T 1475-2006, this OLT delivers reliable performance for demanding network environments.
