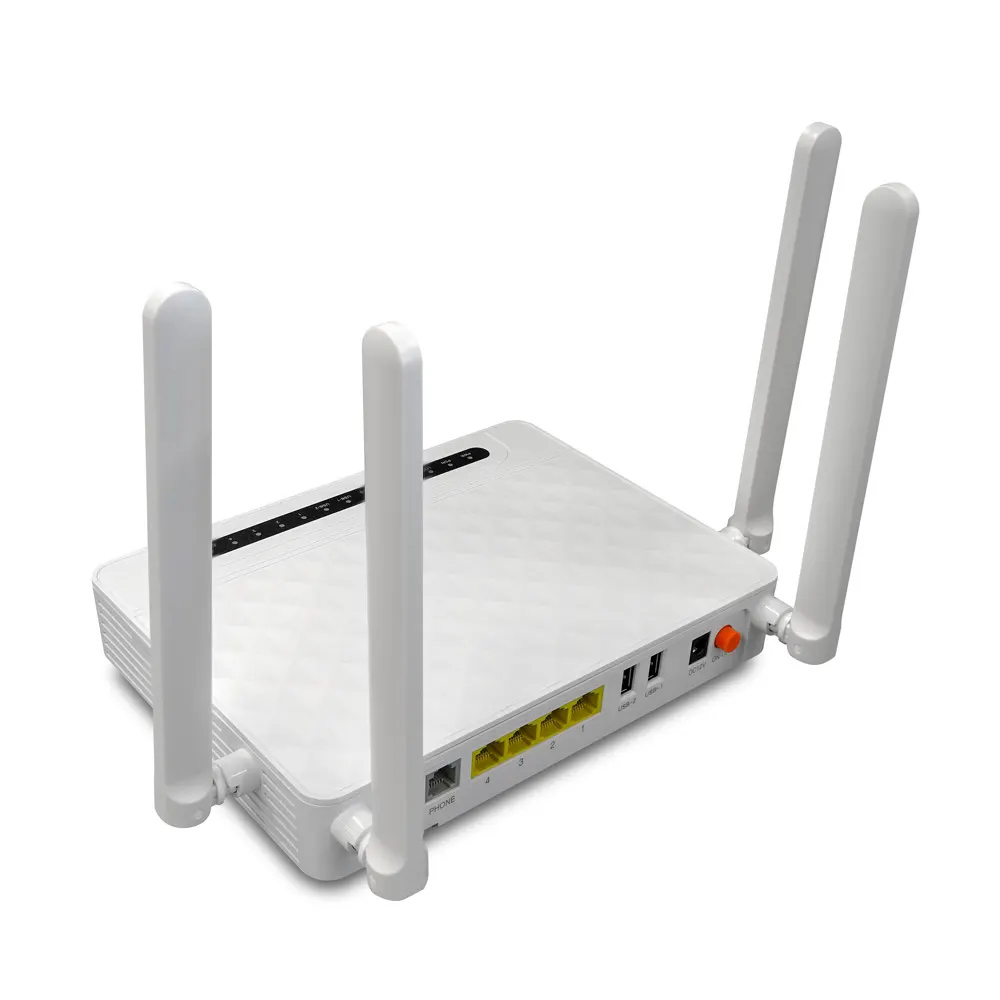

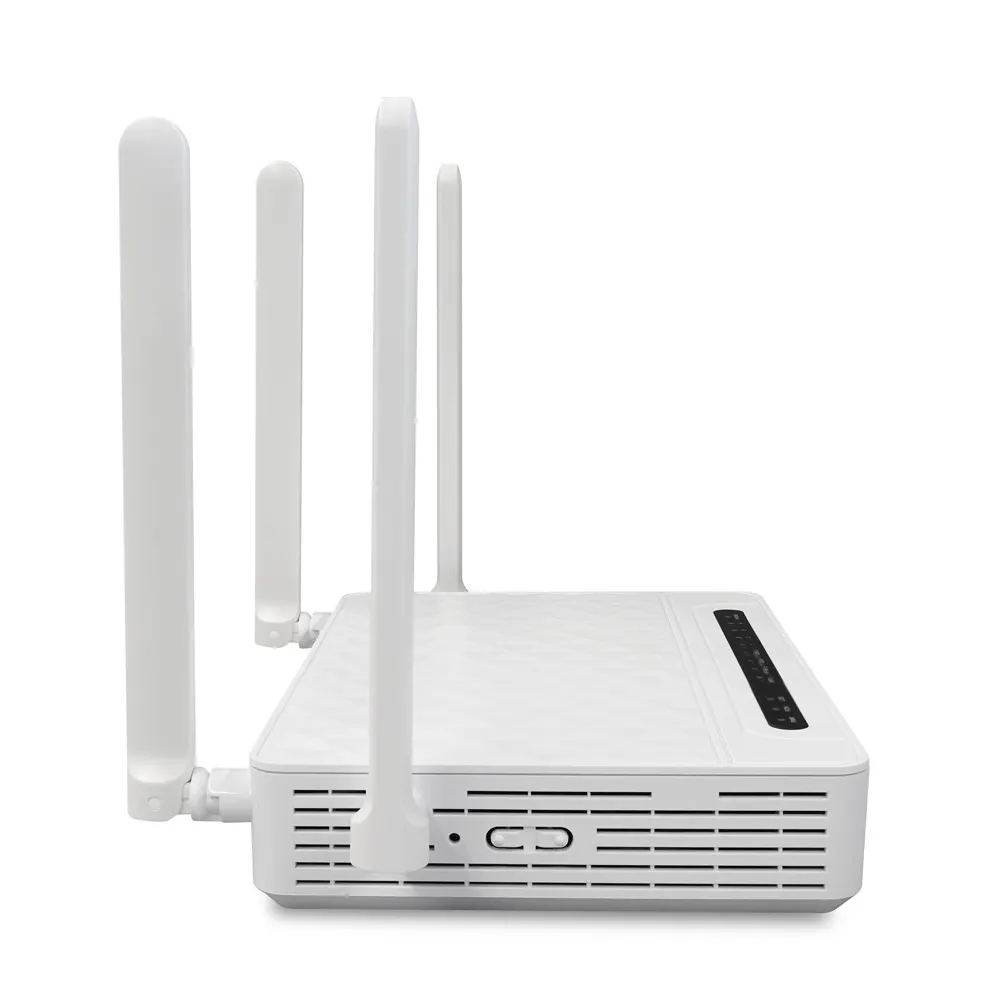

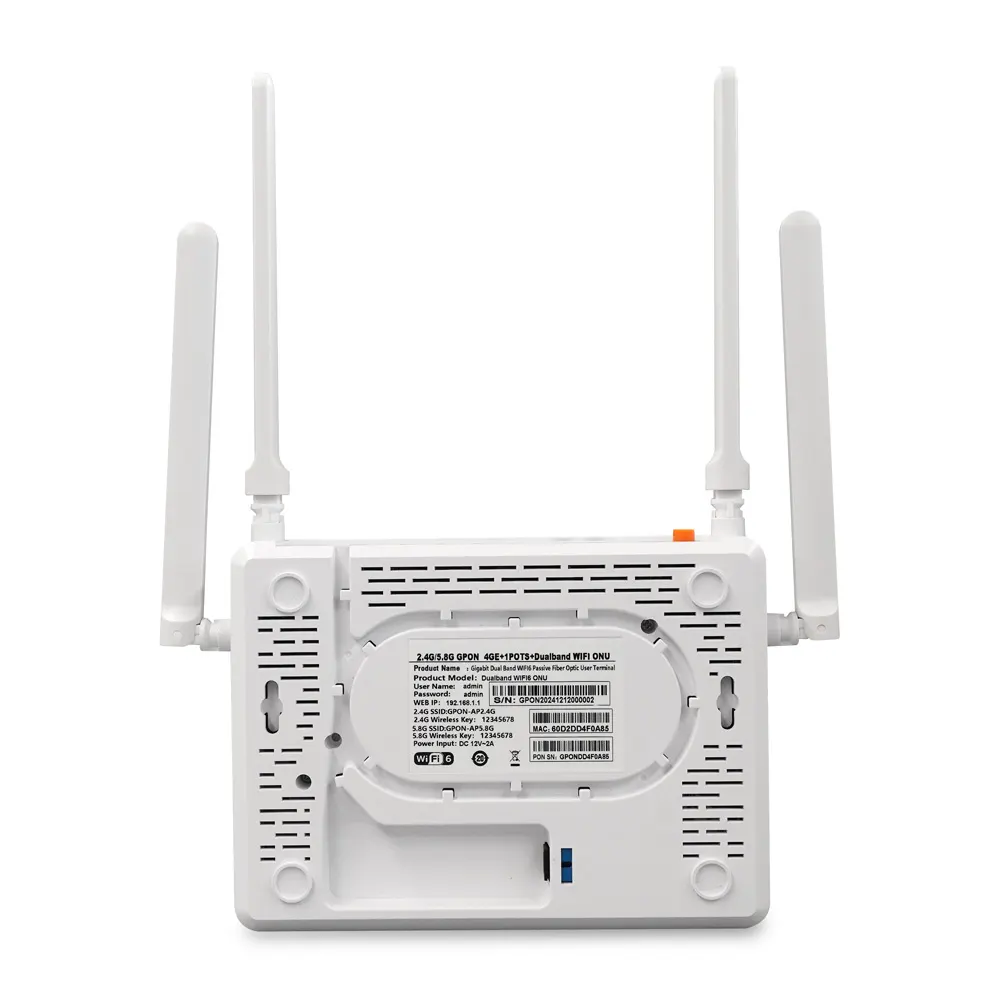

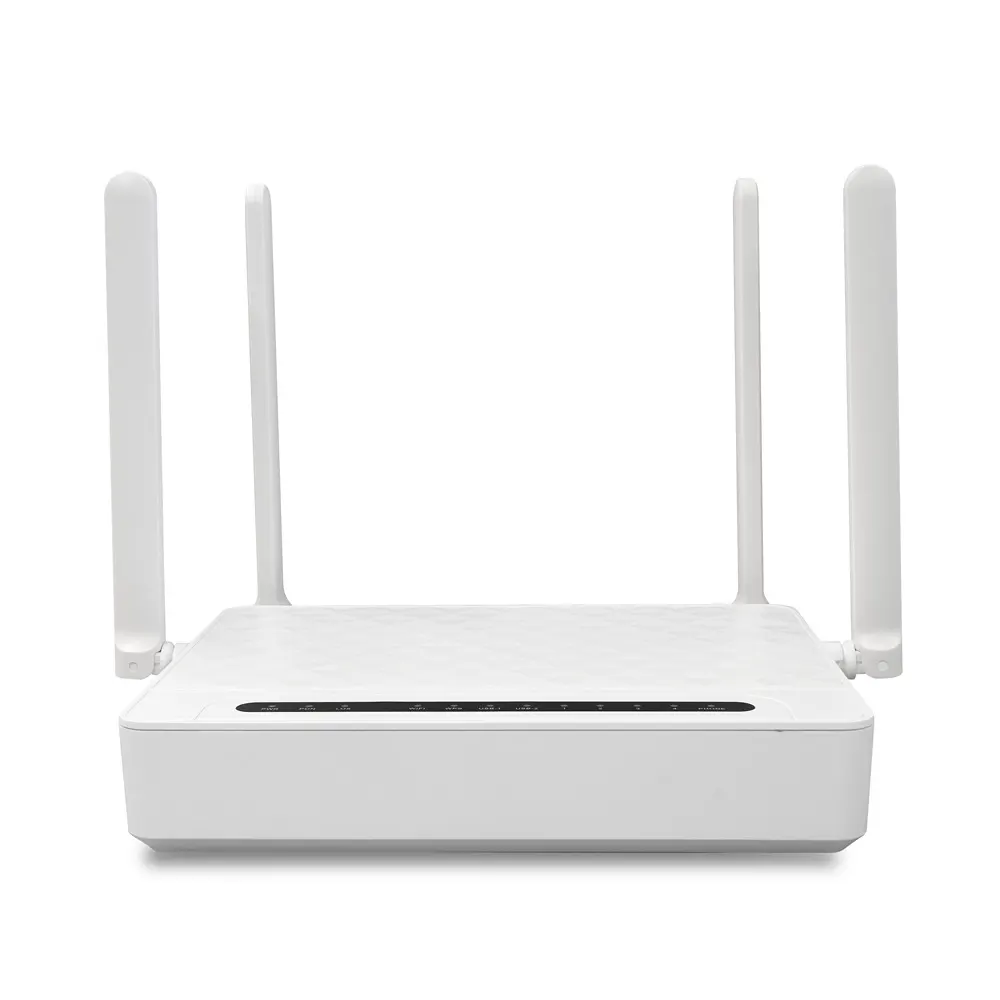

X8418 ONT WiFi 6 AX1800 Router
- Size: 204*148*40mm
- Optical signal access: 1*GPON/EPON Adaptive
- Ports: 4GE LAN +1 VOIP +2 USB+2.4G &5.8G WIFI 6
- Indicator light: POWER/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL1/USB/ 2.4G/5G/WPS
- Button: Power switch Button, Reset Button, WLAN Button, WPS Button
- Weight: 403g
- Power adapter input: 100V~240V AC，50Hz~60Hz
- PowerSupply requirement: 12V DC，1.5A
- Power consumption: <10w
- Working temperature: -10°C ~ +45°C
- Environment humidity: 5% ~ 95% (Non-condensing)
Overview
The X8418 ONT WiFi 6 AX1800 Router is a high-performance FTTH optical network terminal developed for seamless integration into operator networks. Combining Layer 2/3 routing, dual-band WiFi 6, and GPON/EPON auto-adaptation, this compact device delivers enterprise-grade features with low power consumption, perfect for data-intensive FTTH applications.
Key Specifications
ONT Wifi 6 AX1800 Router Features
- WiFi 6 Support: Dual-band (2.4GHz & 5.8GHz) with 1800Mbps max speed, 8 SSID support

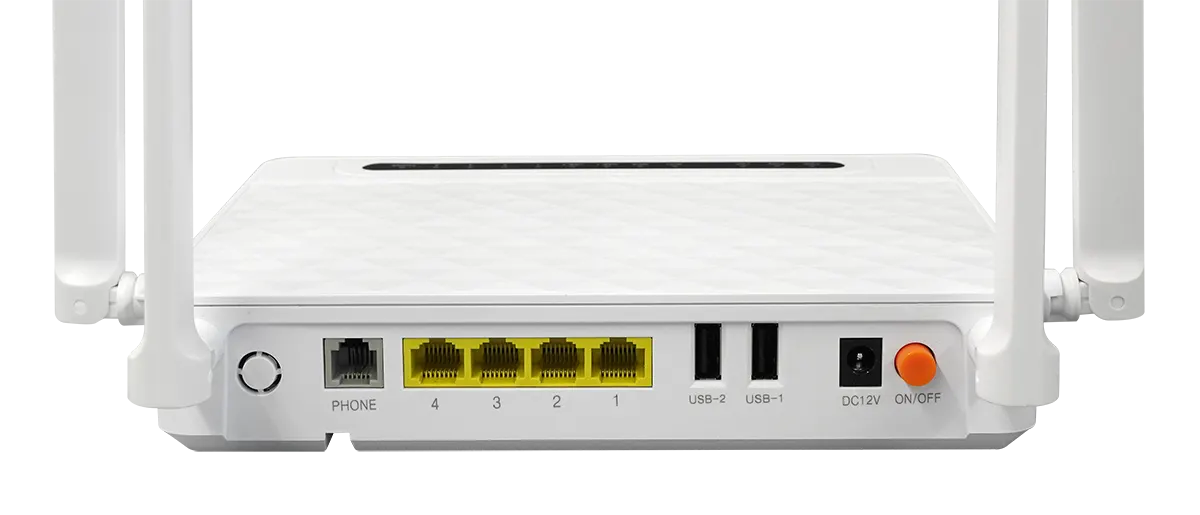

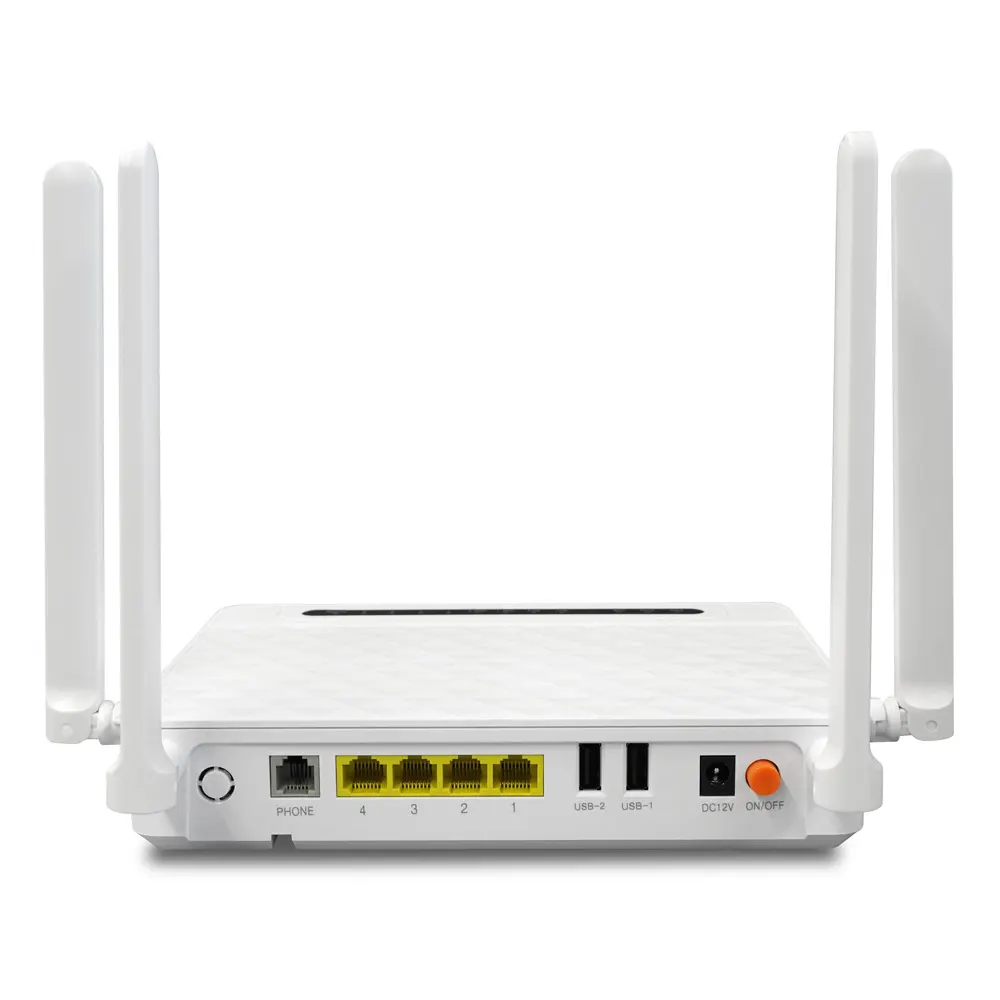

- Interfaces: 4×Gigabit LAN, 1×VoIP, 2×USB, 1×GPON/EPON SC port
- Dimensions: 204×148×40mm | Weight: 403g
- Power: 12V DC, <10W consumption
- Environment: Operates at -10℃~45℃, 5%-95% humidity
ONT Wifi 6 AX1800 PON Interface
- Standards: GPON (ITU-T G.984.x) & EPON (IEEE 802.3ah)
- Wavelength: 1310nm (up) / 1490nm (down)
- Transmission: Up to 20km range | GPON 2.488Gbps downlink
Advanced Features
- Dual-band WiFi 6 (802.11ax) with 2×2 external antennas (5dBi gain)
- Hardware NAT, IPv4/IPv6 dual stack, and TR-069 remote management
- Layer 3 routing: PPPoE, DHCP, Static IP, VLAN, QoS, and CAR scheduling
- Enterprise security: Firewall, MAC/IP filtering, loop detection
- Voice support: SIP protocol, G.711/G.729 codecs, GR-909 compliance
Technical Highlights
- Auto-switching between GPON/EPON modes
- Compatible with 95% third-party OLTs (Huawei, ZTE, Fiberhome)
- IGMP/MLD multicast optimization for streaming
- Plug-and-play auto-discovery and remote firmware upgrades
