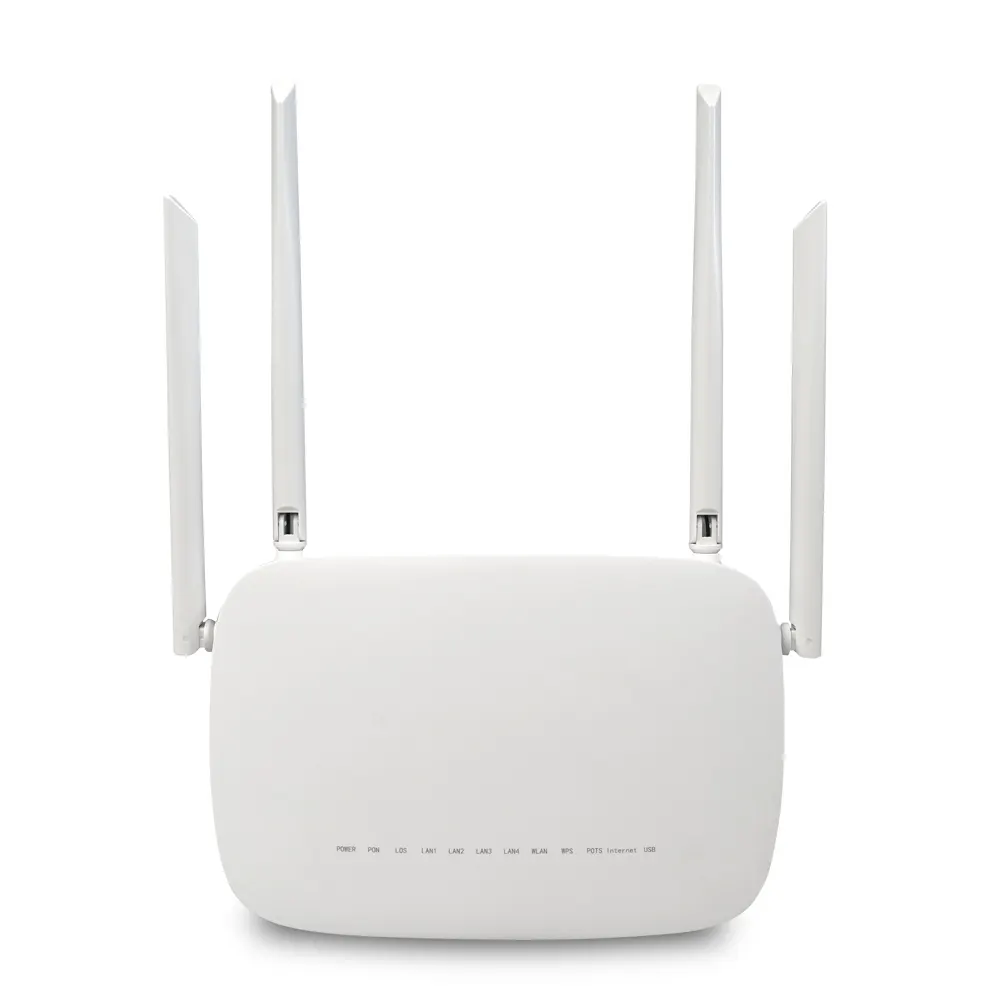

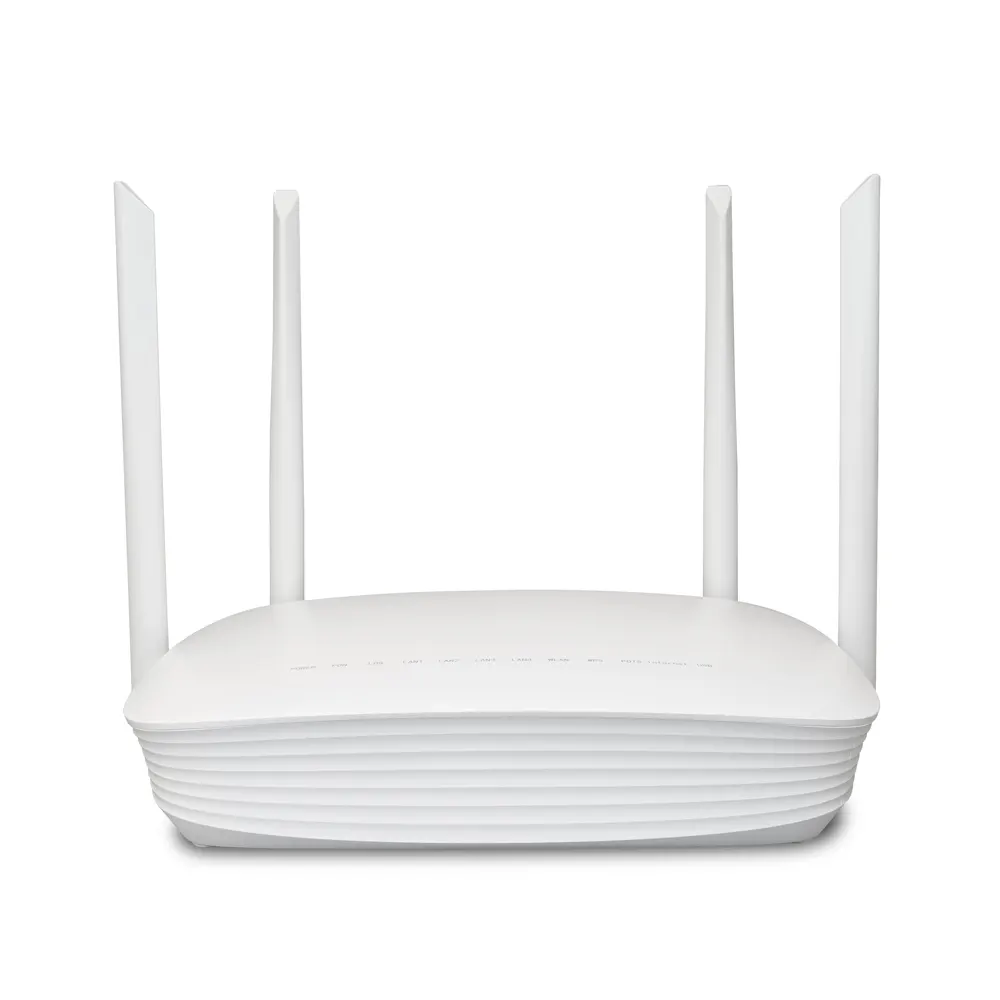

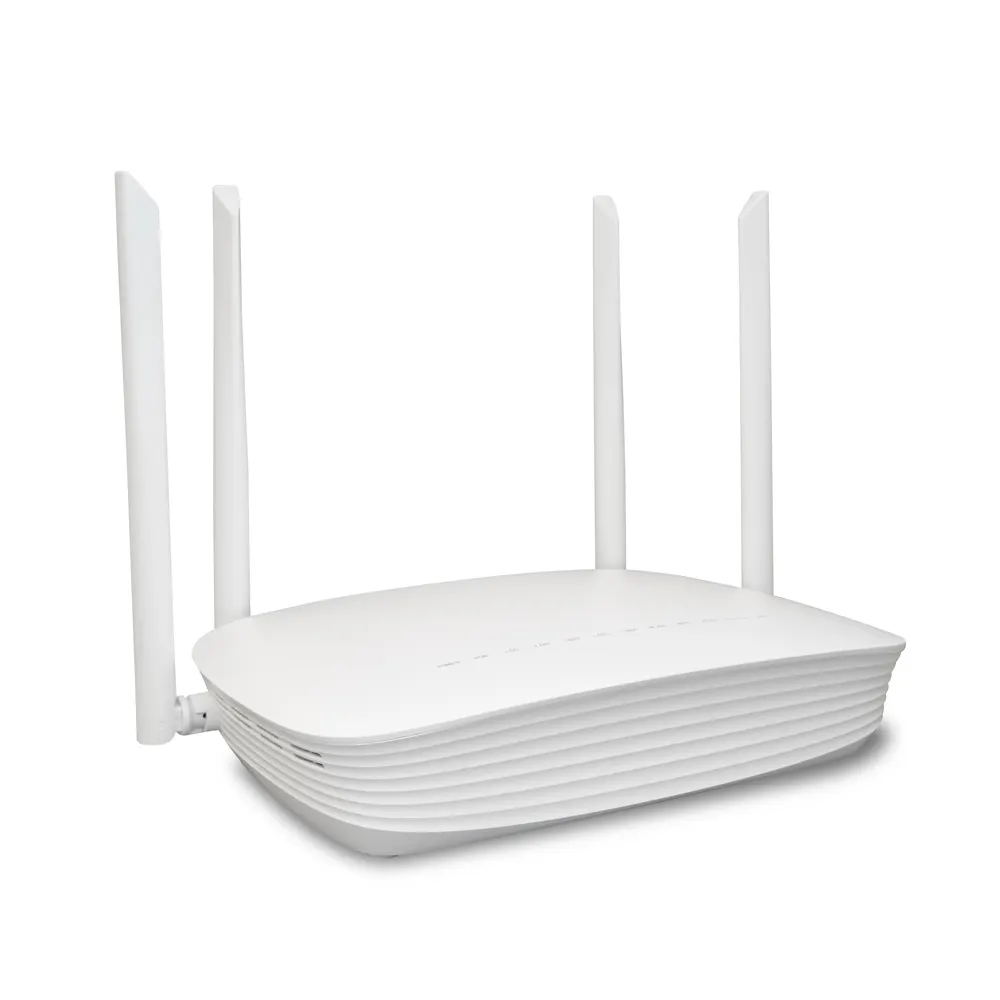

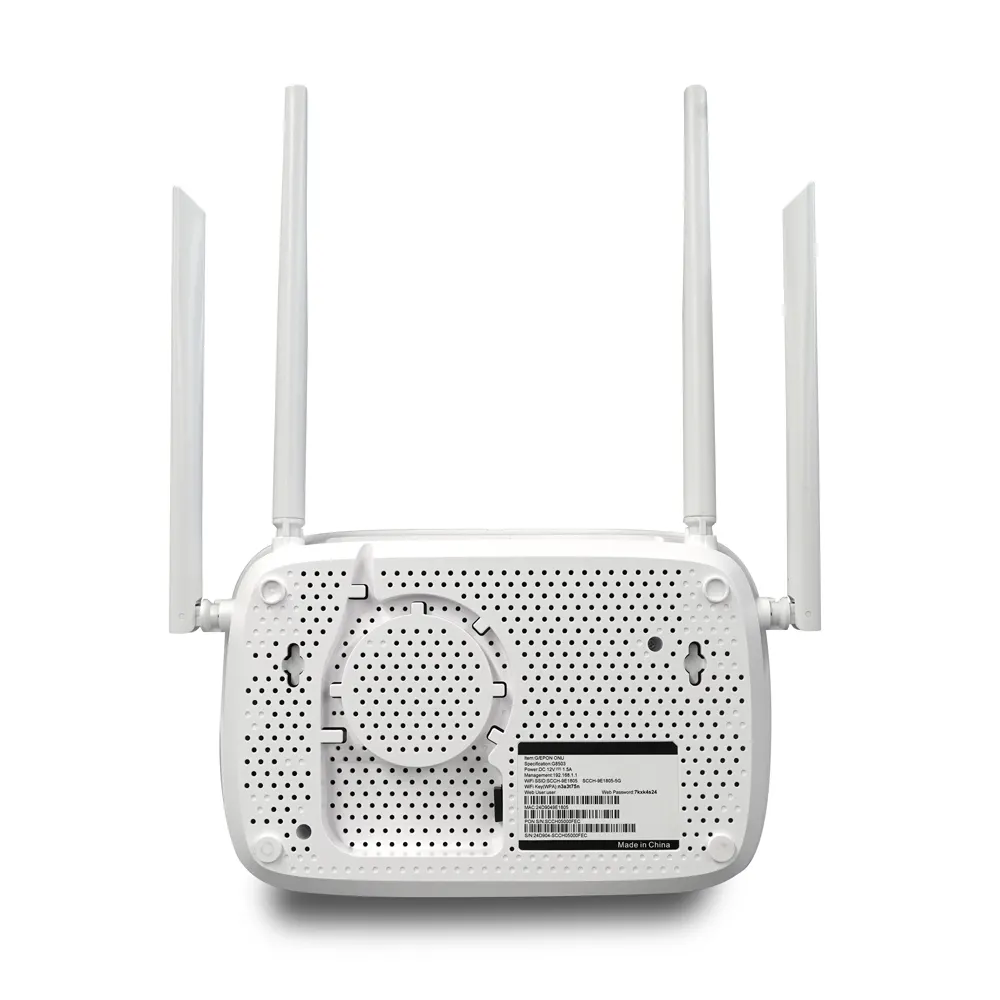

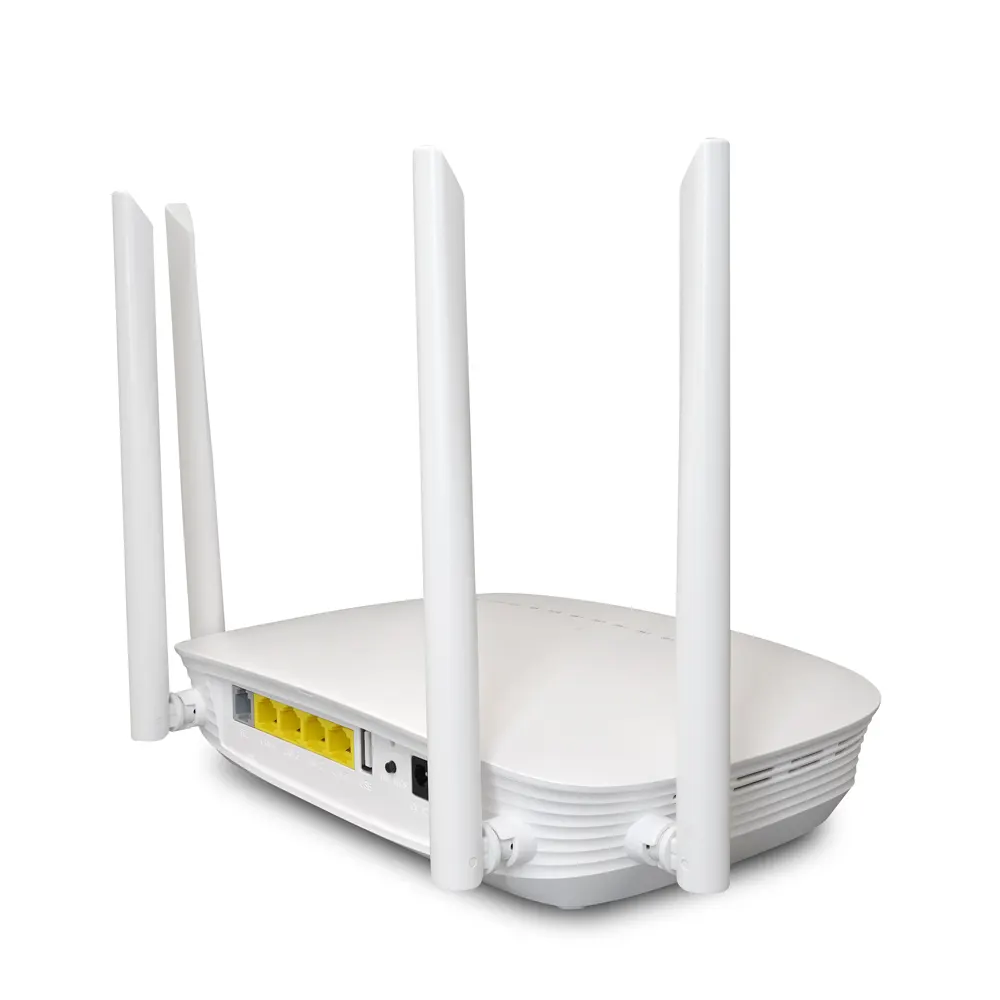

G8503 ONU Modem with WiFi 6 Router – AX3000 Dual-Band XPON HGU | 4 Gigabit Ports
- GPON WAN port with 1.244Gbps uplink / 2.488Gbps downlink link,EPON&GPON mode adaptive;
- 4x 10/100/1000BASE-T Ethernet RJ45 Ports;
- 1x POTS;
- 1x USB;
- Support 802.11n/ax speed up to 574Mbps;
- Support 802.11ac/ax speed up to 2400Mbps;
- Support Easymesh;
Overview
The G8503 ONU modem with WiFi 6 router is a high-performance terminal device supporting both GPON and EPON modes. Designed for seamless integration into modern networks, it combines a 2.5Gbps optical interface, 3000Mbps dual-band WiFi 6 speeds, and advanced features like Easymesh roaming for uninterrupted connectivity.
Key Features of ONU Modem with WiFi 6 Router
- WiFi 6 Router: 574Mbps (2.4GHz) + 2400Mbps (5GHz) with 802.11ax support
- Dual-Mode ONU: Adaptive GPON/EPON with 2.5Gbps downlink and 1.25Gbps uplink
- Multi-Service Support: Data, VoIP, USB storage, and Easymesh whole-home coverage

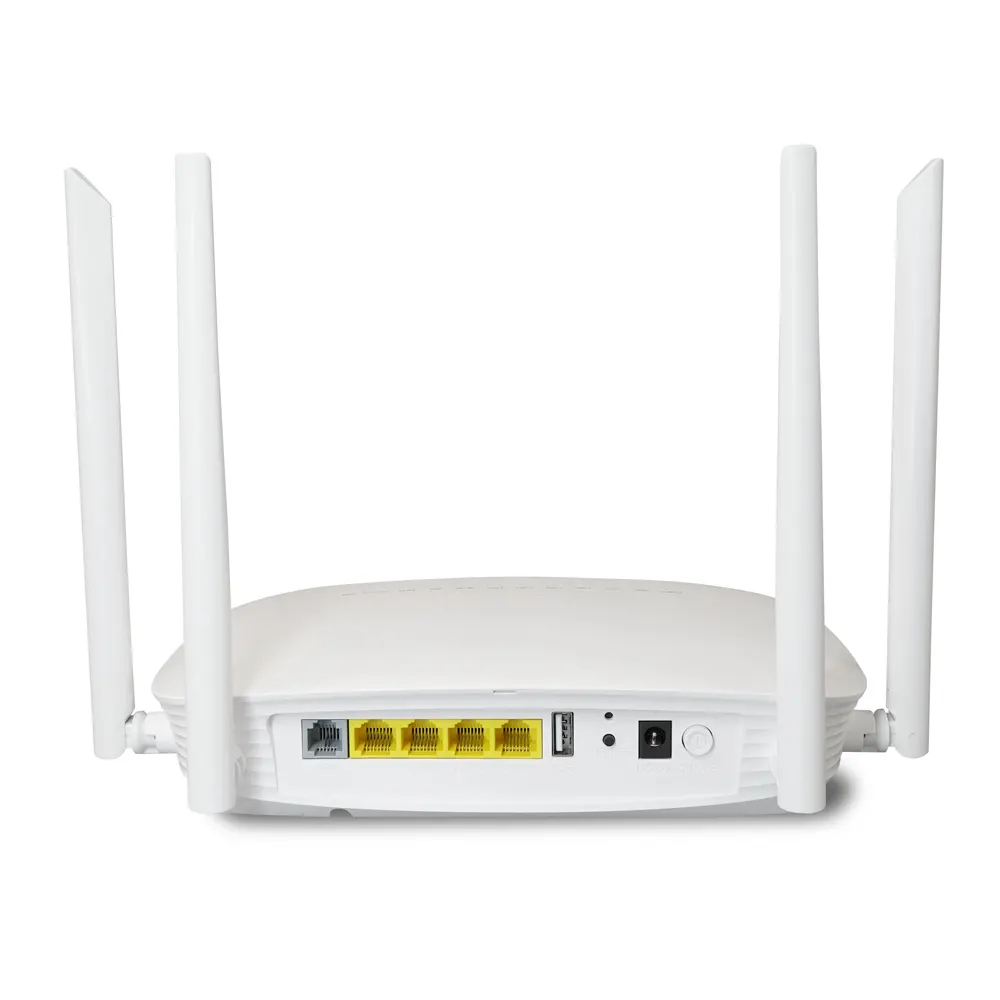

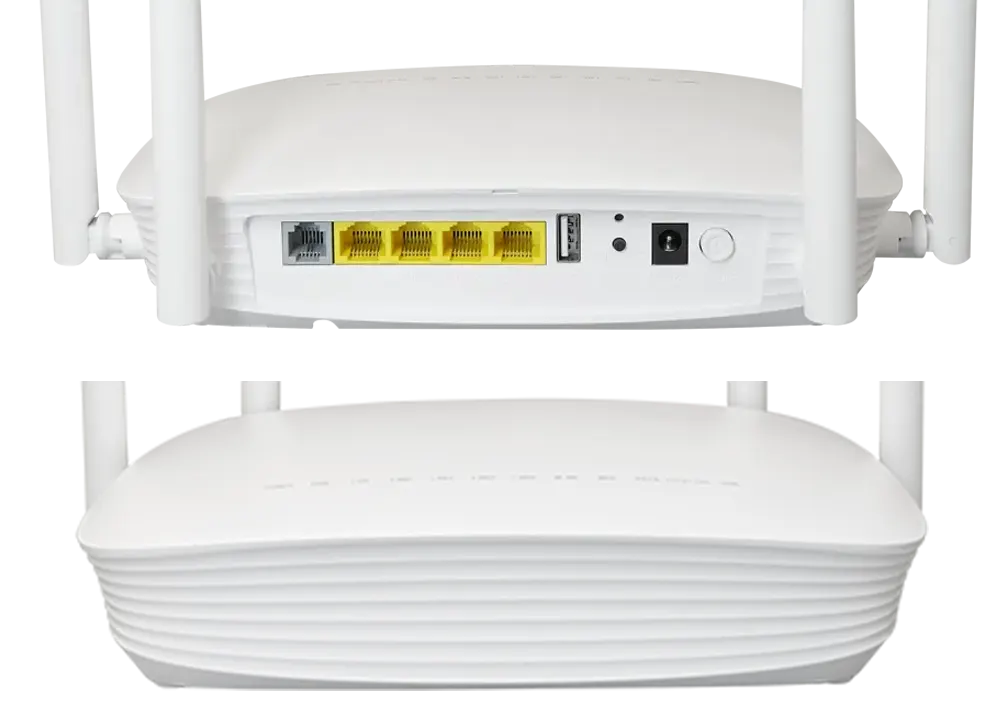

- High-Speed Ports: 4x Gigabit LAN, 1x USB 2.0, 1x RJ-11 VoIP
- Enterprise-Grade Security: WPA3 encryption, firewall, and DoS protection
Technical Specifications of ONU Modem with WiFi 6 Router
| Hardware | Details |
|---|---|
| CPU | Dual-Core A9 1GHz (ZX279128S) |
| Memory | 512MB DDR3 + 256MB Flash |
| WiFi Chipset | MTK7916 (2.4GHz) + MTK7976 (5GHz) |
| Antennas | 3 External (2x 5G 5dBi, 1x Dual-Band 3dBi) |
| Power | DC 12V/1.5A |
| Network Protocols | |
| WAN | PPPoE, DHCP, Static IP, VLAN Stacking |
| VoIP | G.711/G.729 Codecs, T.38 Fax Support |
| Management | TR069, Web GUI, SSH/Telnet, OMCI |
| Physical | |
| Dimensions | 257 x 221 x 50mm |
| Operating Temp | 0°C to 40°C |
Recommended Applications
- Fiber-to-the-Home (FTTH) high-speed internet access
- Smart home networks with WiFi 6 devices
- Small business VoIP and data solutions
- Seamless roaming via Easymesh-compatible extenders
