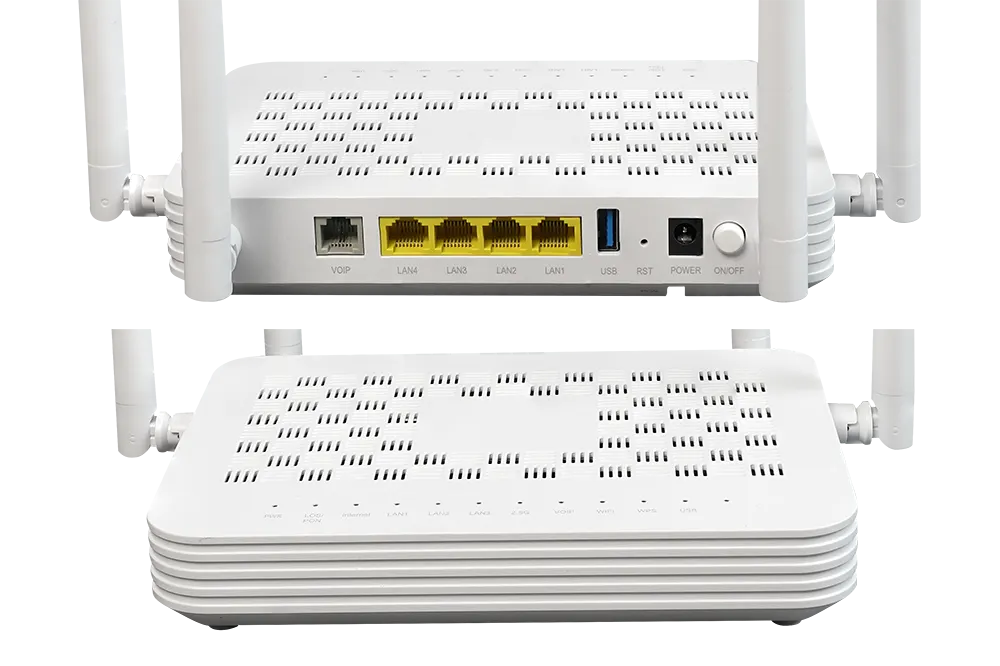

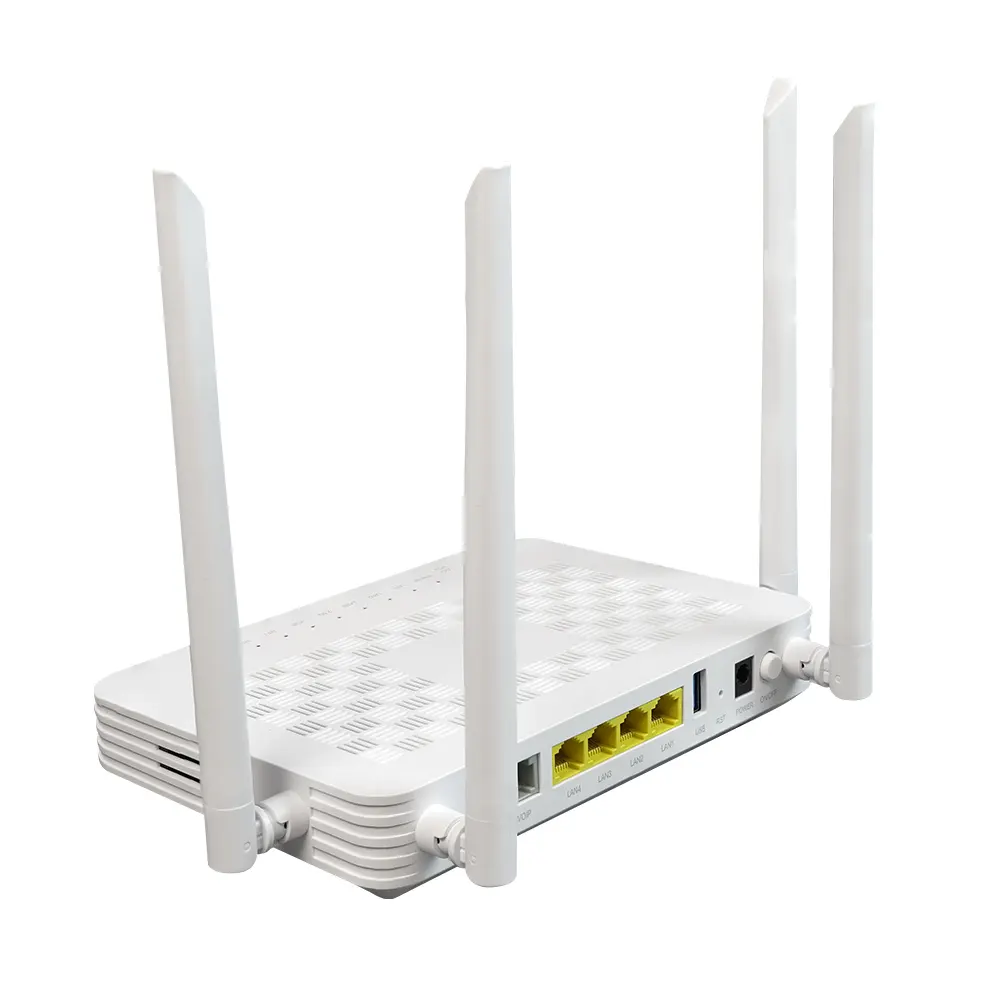

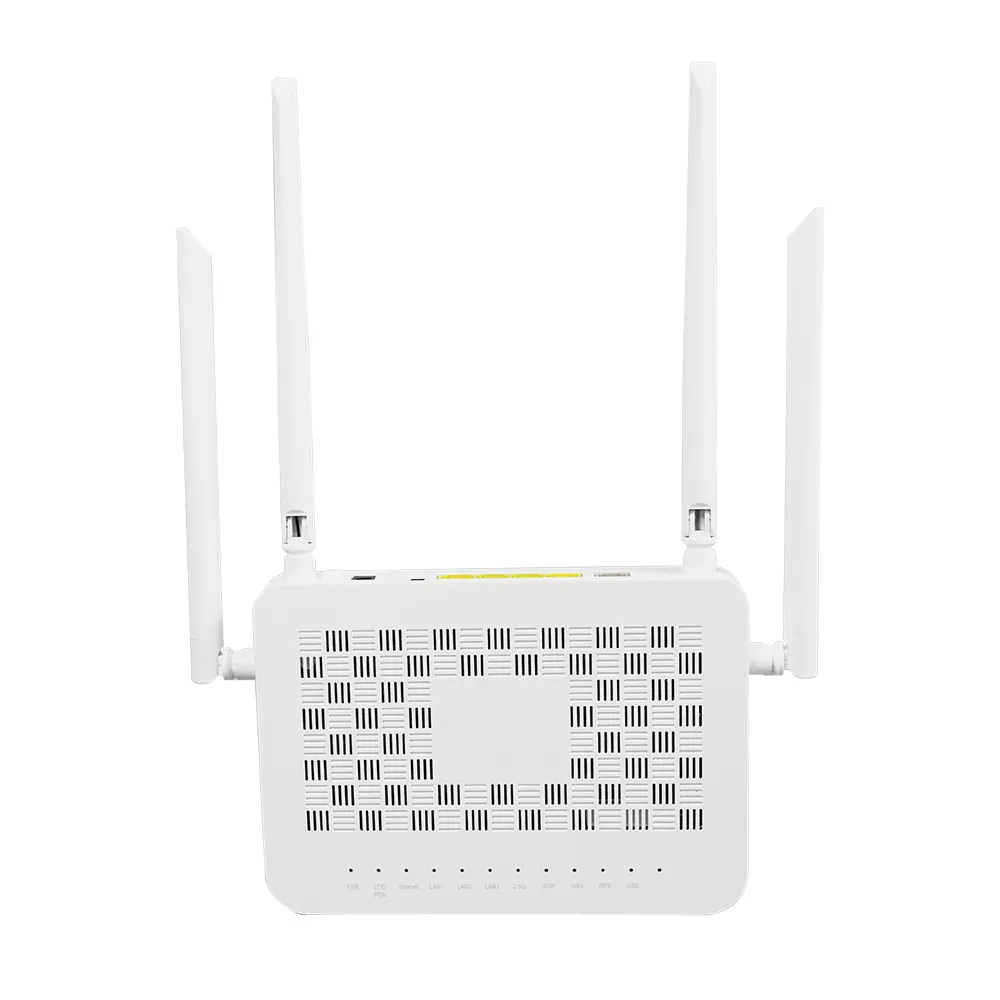

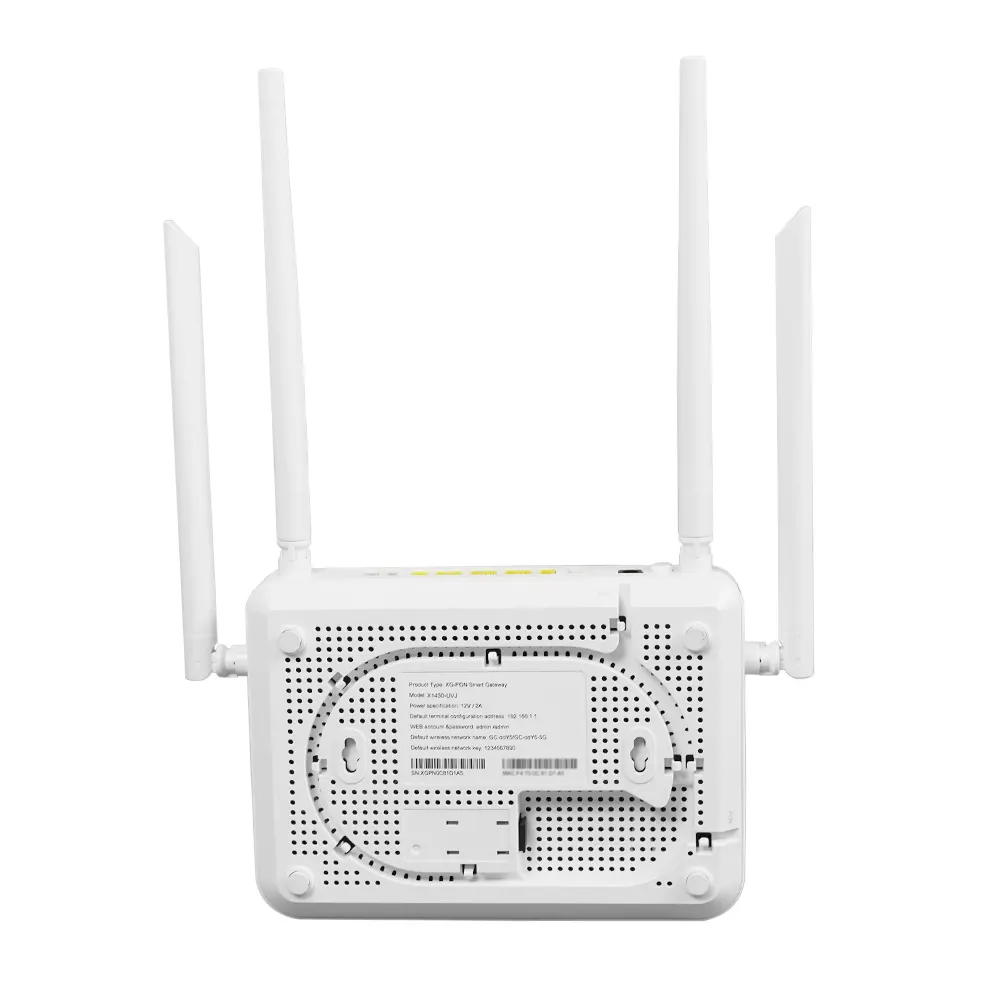

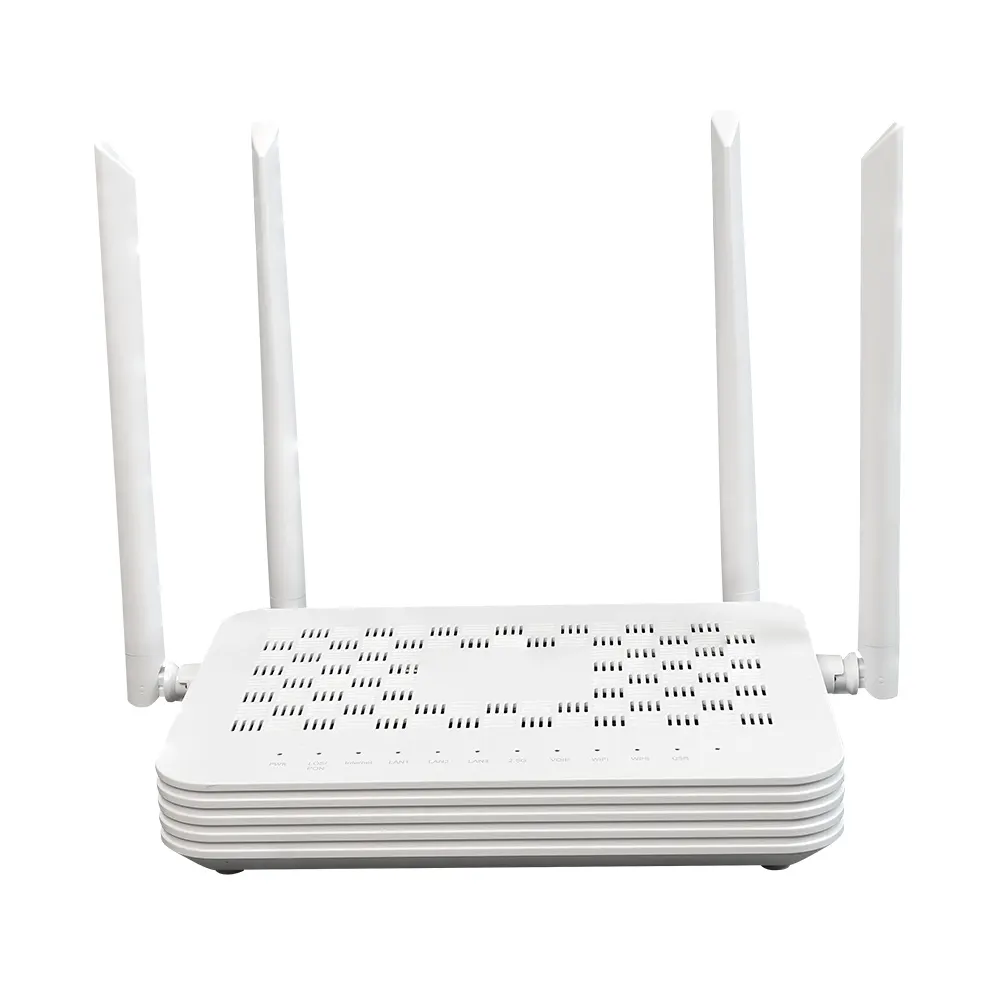

X1430 ONU ONT Wifi Device AX3000 | GPON/EPON Dual-Mode Fiber Modem
- 1 * G/EPON interface: SC/UPC/APC interface, ITU-T G.984,IEEE802.3ah
- 4 * Ethernet interface: 10 MBPS / 100 MBPS, 1000 MBPS, RJ – 45, IEEE802.3-2005 standard
- 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
- 1 * USB interface: standard USB 3.0 interface
- Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))
Overview
The X1430 is a ONU ONT Wifi Device AX3000 dual-mode adaptive XPON (GPON/EPON) Optical Network Terminal (ONT) with Wi-Fi 6 (AX3000) support, designed for ultra-broadband Fiber-to-the-Home (FTTH) deployments. This device integrates 4 Gigabit Ethernet ports, VoIP, USB 3.0, and advanced routing capabilities, ensuring seamless compatibility with major OLTs like Huawei, ZTE, and Fiberhome.
Key Features OF ONU ONT Wifi Device AX3000
- Dual-Mode XPON: Supports GPON (2.48Gbps down / 1.25Gbps up) and EPON (1.25Gbps symmetric)
- Wi-Fi 6 AX3000: Dual-band 2.4GHz (574Mbps) + 5GHz (2402Mbps) with 2×2 MIMO

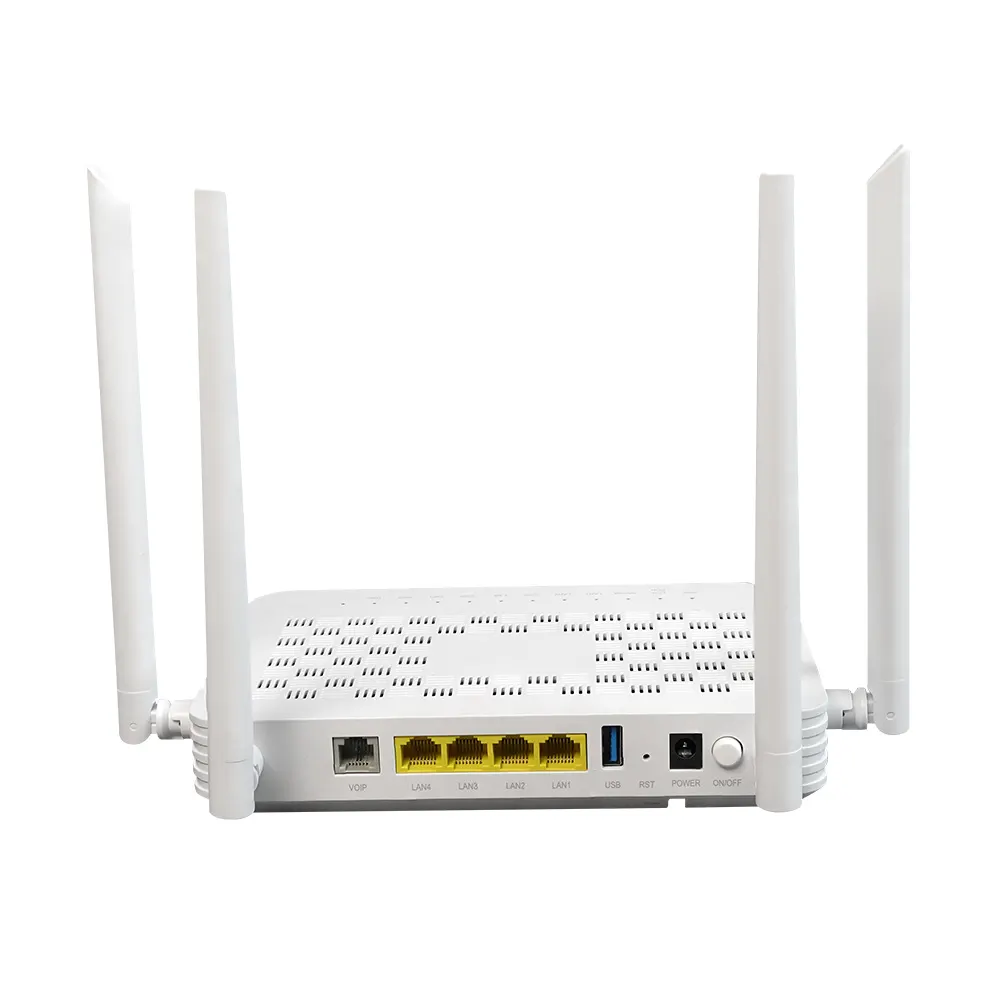

- Multi-Port Connectivity: 4×GE RJ45, 1×VoIP (RJ11), 1×USB 3.0
- Advanced QoS: 8 priority queues, VLAN tagging, and rate limiting
- Layer 3 Routing: IPv4/IPv6 dual-stack, NAT, DDNS, and UPnP support
Hardware Specifications OF ONU ONT Wifi Device AX3000
| Parameter | Details |
|---|---|
| Memory | 512MB DDR3 |
| Flash Storage | 256MB NAND |
| Ports | 4×GE, 1×VoIP, 1×USB 3.0, 1×SC/APC (GPON/EPON) |
| Wi-Fi Antennas | Dual 5dBi MIMO (2.4GHz & 5GHz) |
| Power Consumption | ≤8W (12V/1.5A DC) |
| Dimensions | 190mm × 135mm × 33mm |
Interface Details
| Interface | Specifications |
|---|---|
| G/EPON | SC/UPC/APC, ITU-T G.984, IEEE 802.3ah |
| Ethernet | 4×RJ45 (10/100/1000Mbps), VLAN tagging/transparent mode |
| VoIP | G.711/G.729/G.722, T.38 fax support |
| USB 3.0 | High-speed peripheral connectivity |
Software Features
- Layer 2/3 Protocols: MAC learning, IGMP snooping, PPPoE, DHCP, RIPv2
- Security: WPA3, WPA2-PSK, AES/TKIP encryption
- Management: Web UI, TR069, CLI via Telnet/SSH
- Multicast: IGMP v2/v3 proxy, MLD v1/v2
Environmental Conditions
| Parameter | Range |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% (non-condensing) |
Compatibility
Certified for use with Huawei, ZTE, Fiberhome OLTs, and other mainstream GPON/EPON systems.
