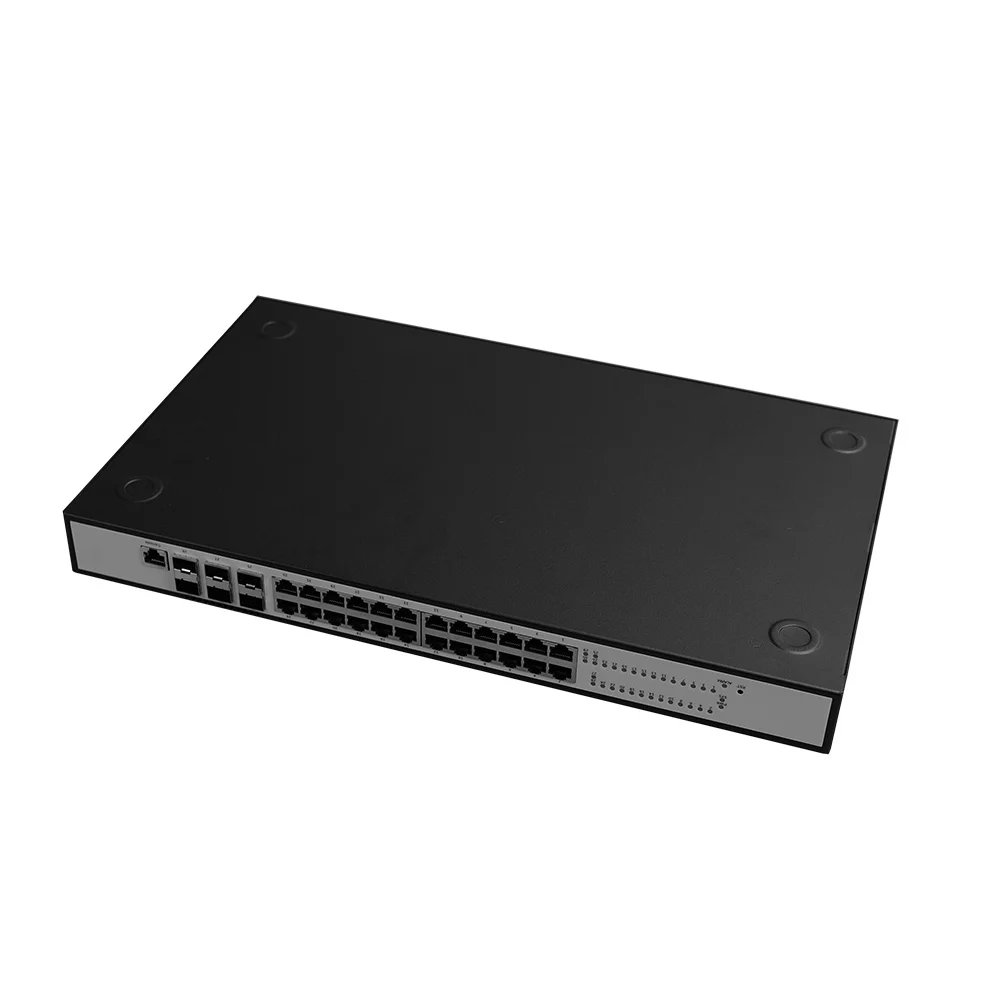

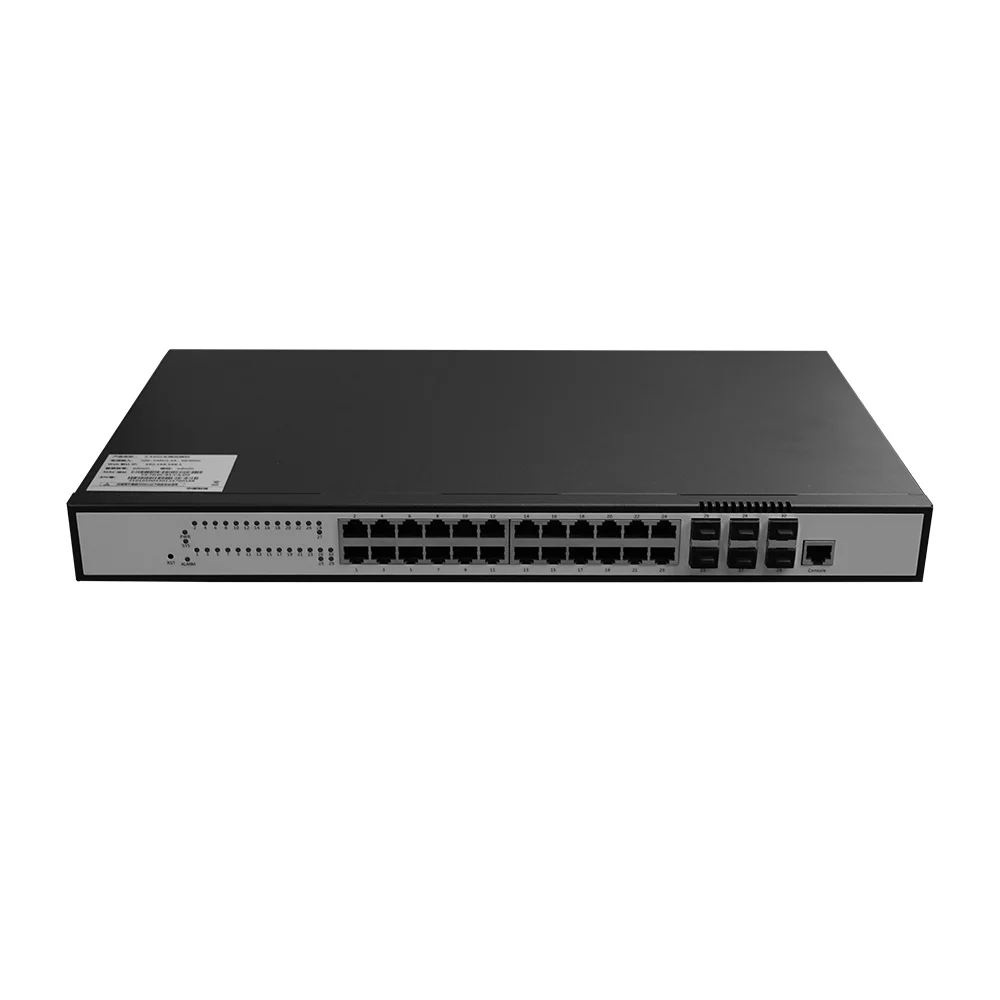

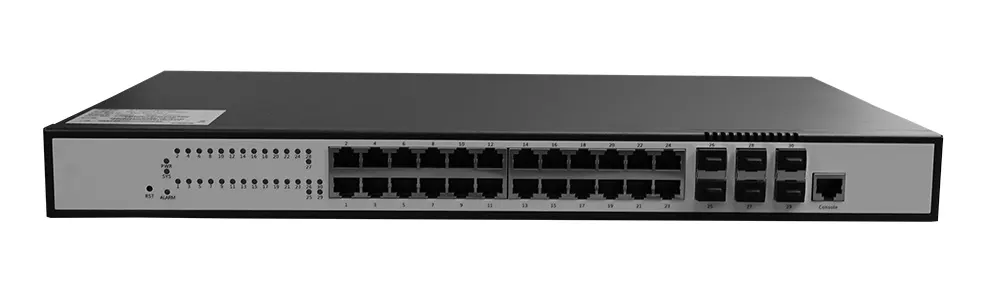

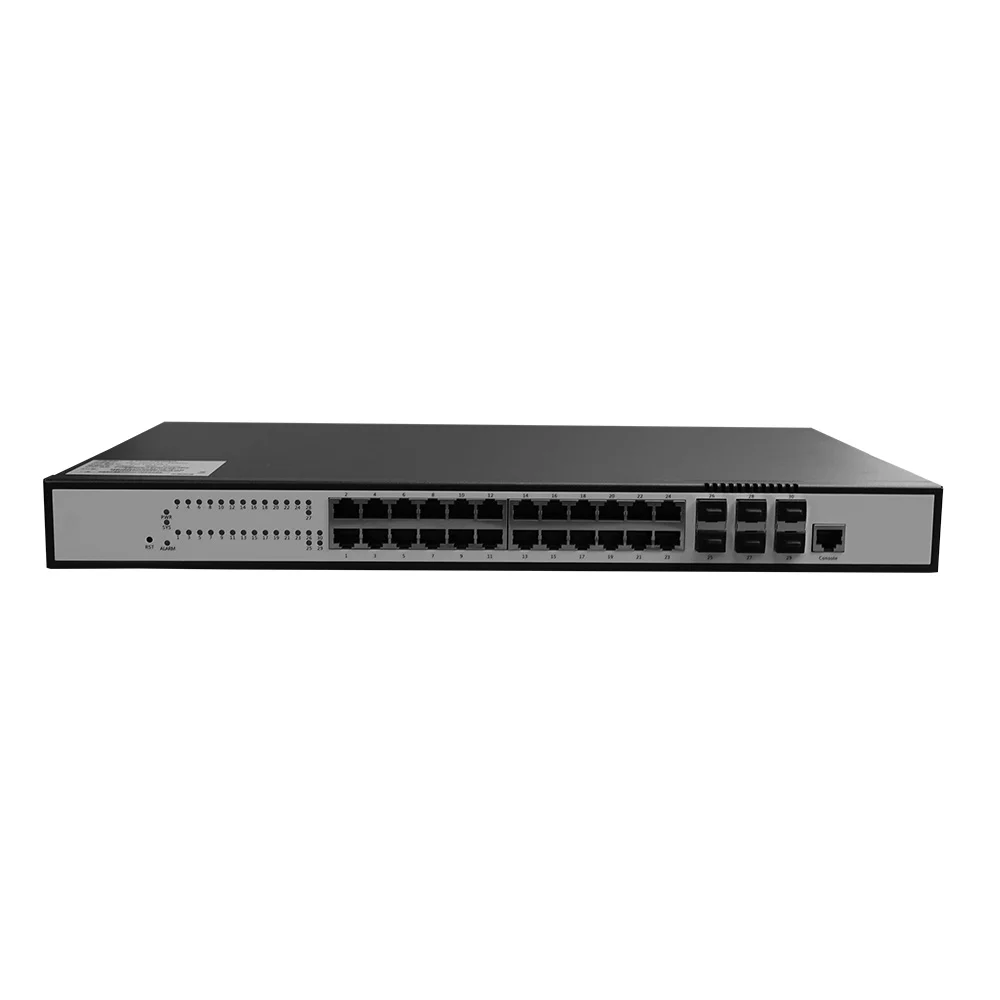

24-Port Switch with 10Gb Uplink – Layer 3 Ethernet switch
Ports: 24 10/100/1000/2500M Base-T ports, 6 1000M Base-X SFP/10GE SFP+ ports.
Switching capacity: 240Gbps.
Packet Forwarding Rate: 160Mbps.
MAC Address Table: 32K.
Memory and Storage: 512MB memory, 32MB storage.
Power consumption: ≤39W.
Operating temperature: -10°C to 55°C.
Product Overview
Key Features of Switch 10Gb 24 Port
- 24-Port 2.5G Base-T + 6-Port 10G SFP+: Provides high-speed connectivity for both access and uplink requirements.
- Layer 3 Switching: Supports static and dynamic routing protocols, including RIP, OSPF, BGP, and ISIS.
- Advanced Security: Features ACL, ARP protection, DHCP snooping, and IP Source Guard to safeguard your network.
- Carrier-Grade Reliability: Supports STP/RSTP/MSTP, ERPS, and LACP for network redundancy and stability.
- Powerful QoS: Enables traffic prioritization and bandwidth management with SP/WRR/SP+WRR scheduling algorithms.
- Low Power Consumption: Energy-efficient design with a maximum power consumption of ≤39W.
Hardware Specifications of switch 10Gb 24 port
| Attribute | Specification |
|---|---|
| Ports | 24 x 10/100/1000/2500M Base-T, 6 x 1000M Base-X SFP/10GE SFP+ |
| Switching Capacity | 240Gbps |
| Packet Forwarding Rate | 160Mbps |
| MAC Address Table | 32K |
| Memory | 512MB |
| Storage | 32MB |
| Power Consumption | ≤39W |
| Dimensions | 440 x 260 x 44 mm |
| Operating Temperature | -10°C to 55°C |
Network Management
The SZ6324-ACB offers flexible management options to simplify network administration:
- CLI: Command Line Interface via RS232 serial port, Telnet, or SSHv2.
- Web Interface: User-friendly web-based configuration and monitoring.
- SNMP: Supports SNMP v1/v2/v3 for network monitoring and management.
- Remote Upgrade: Firmware upgrades via FTP or TFTP.
Applications of switch 10Gb 24 port
The SZ6324-ACB is ideal for a wide range of applications, including:
- Enterprise Networks: Provides high-speed access and aggregation for office environments.
- Data Centers: Offers low-latency, high-bandwidth connectivity for server and storage networks.
- Carrier Networks: Supports advanced routing and redundancy protocols for reliable service delivery.
- Education and Healthcare: Delivers secure, high-performance networking for campuses and hospitals.
