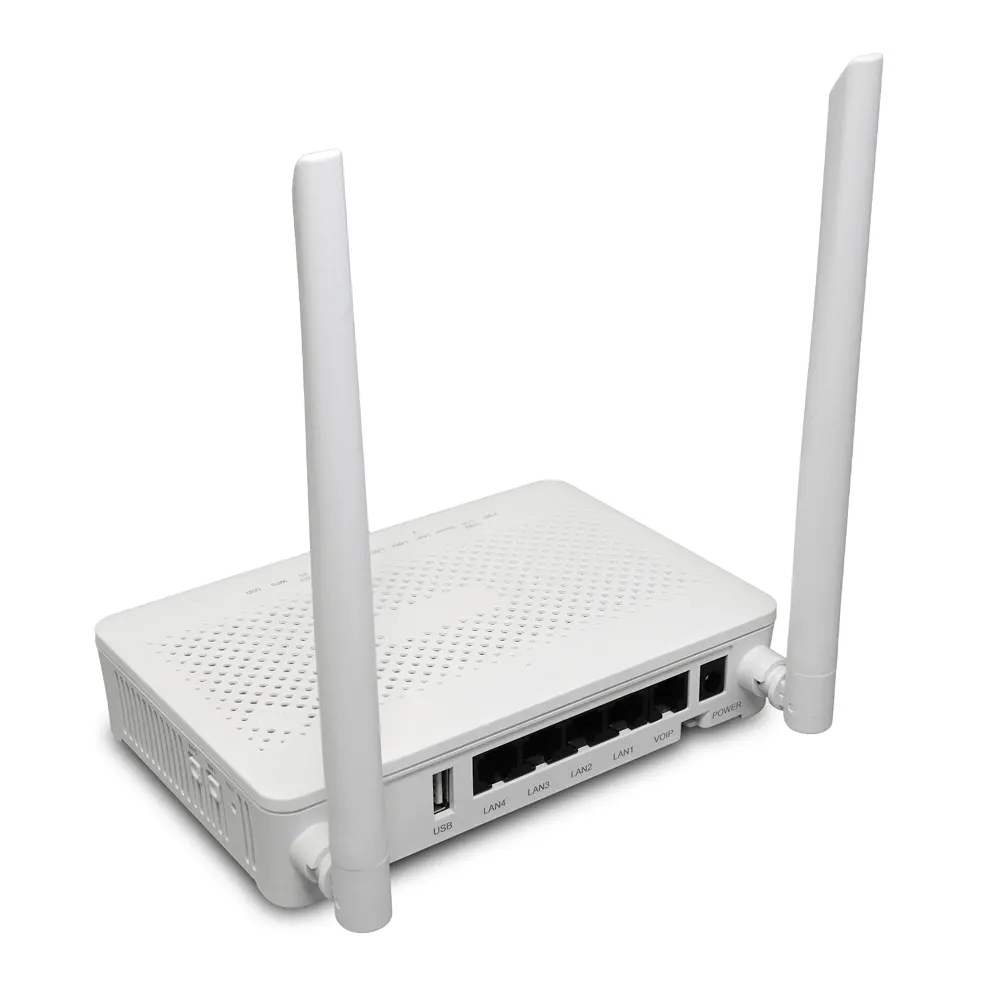

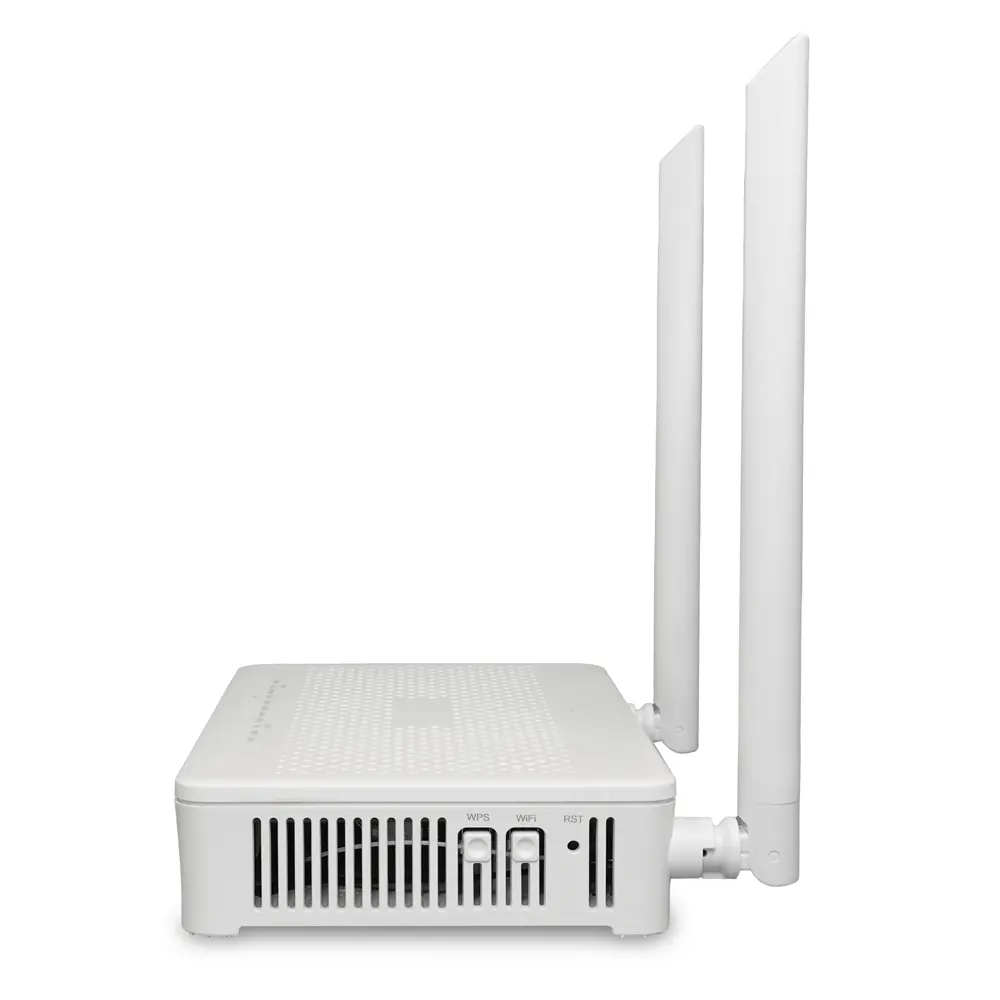

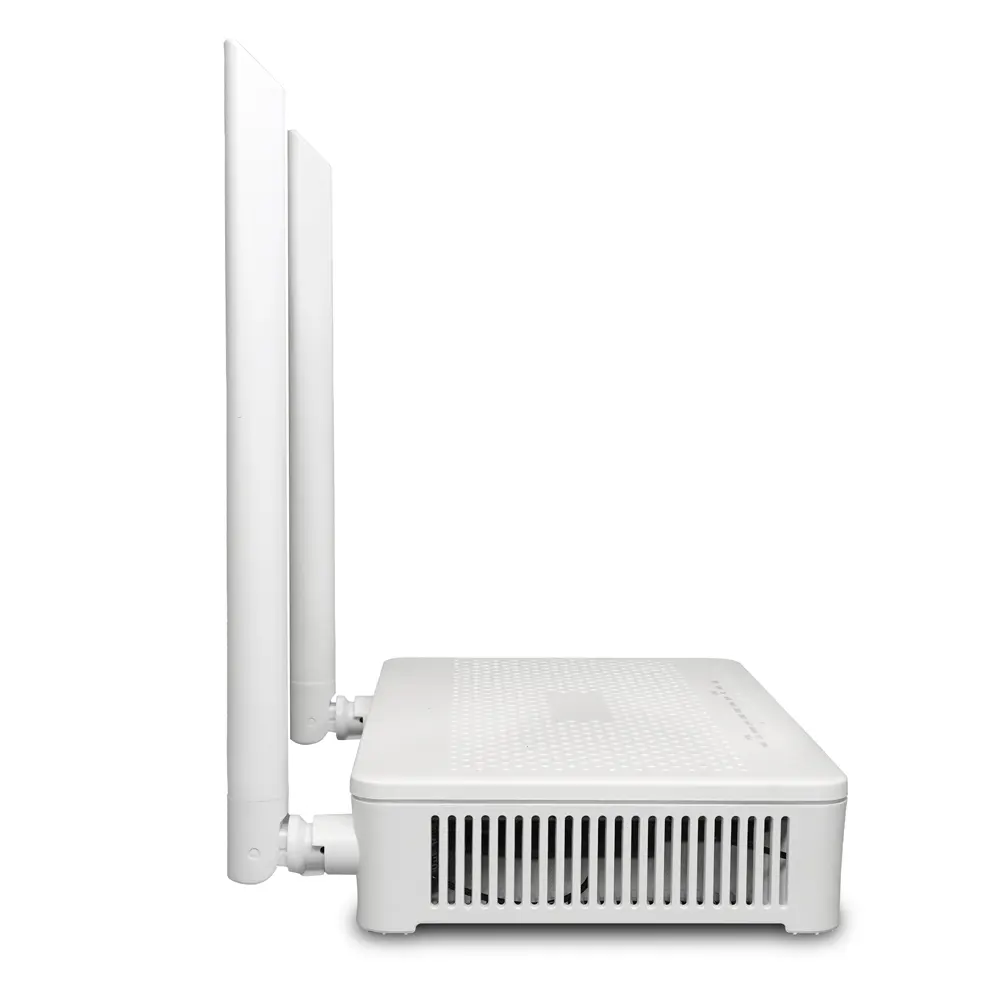

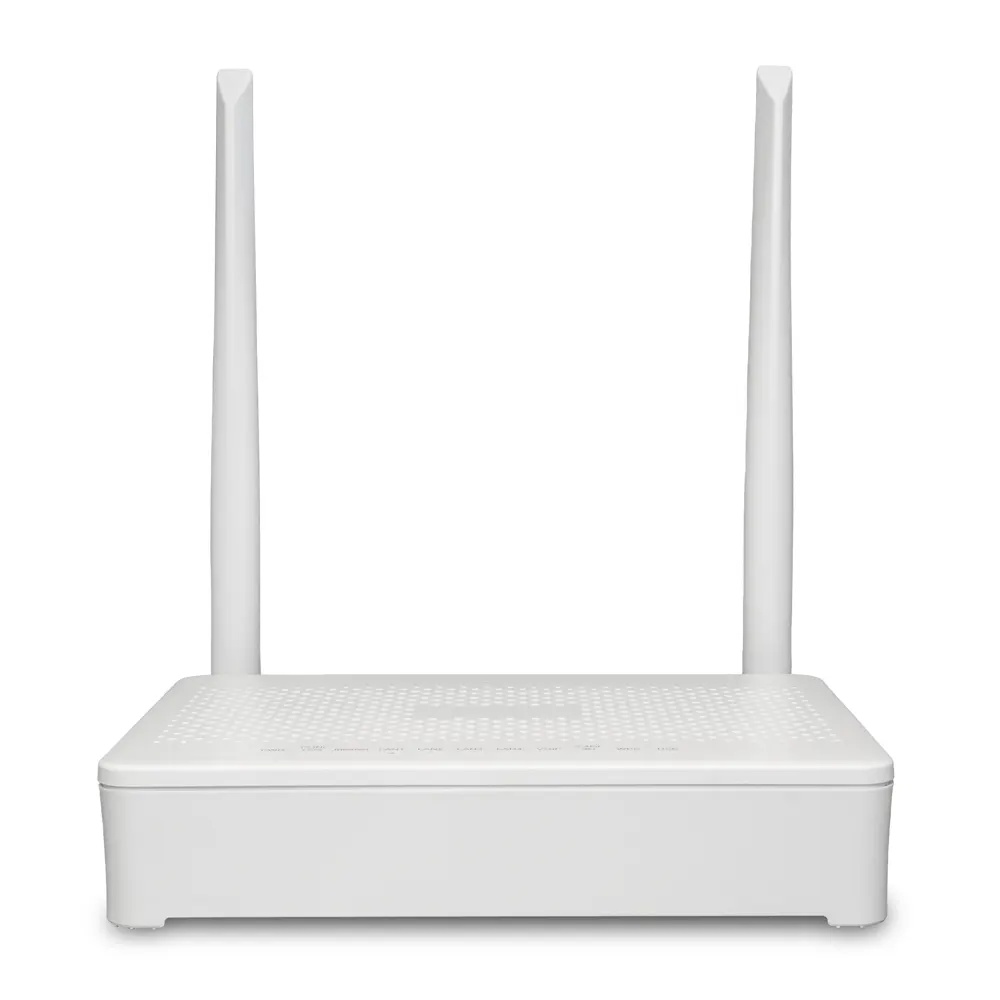

G1412 XPON ONU WiFi Router | Dual Mode GPON/EPON Terminal with WiFi 5
- 1* G/EPON interface: SC/UPC/APC interface, ITU-T G.984,ITU-T IEEE802.3ah
- 4*Ethernet interface:10/100/1000 Mbps, R」-45,EEE802.3-2005 standard
- 1* VOlP interface: in accordance with G. 711 a/u, G.729 a/b, G. 722 standard
- 1*USB interface: standard USB 2.0 interface
- Dual-band WlFl5(2.4G 300Mbps 5G 867Mbps)
Overview
A highly integrated XPON ONU WiFi Router dual-mode (GPON/EPON) optical terminal unit with dual-band WiFi 5, VoIP support, and gigabit Ethernet connectivity. Ideal for ultra-broadband fiber access networks.
The G1412 is a GPon and EPon dual mode adaptive optical terminal Unit that is highly integrated with dual-frequency Wi-Fi 5. it supports ultra-bandwidth access through GEPon upstream technology and provides users with basic WiFi function, routing, and gigabit Ethernet function. The upstream network ports of the G1412 are GEPon ports. It has 4 GE RJ45 ports, 1 USB port, 1 VoIP port and WiFi 5 WLAN port.
Key Features OF XPON ONU WiFi Router
- Dual-mode XPON (GPON/EPON) compatibility
- WiFi 5 with dual-band speeds up to 1167Mbps
- 4 x Gigabit Ethernet ports + VoIP + USB 2.0
- IPv4/IPv6 dual-stack & advanced QoS
- TR069/Web UI management
Hardware Specifications OF XPON ONU WiFi Router
| Category | Details |
|---|---|

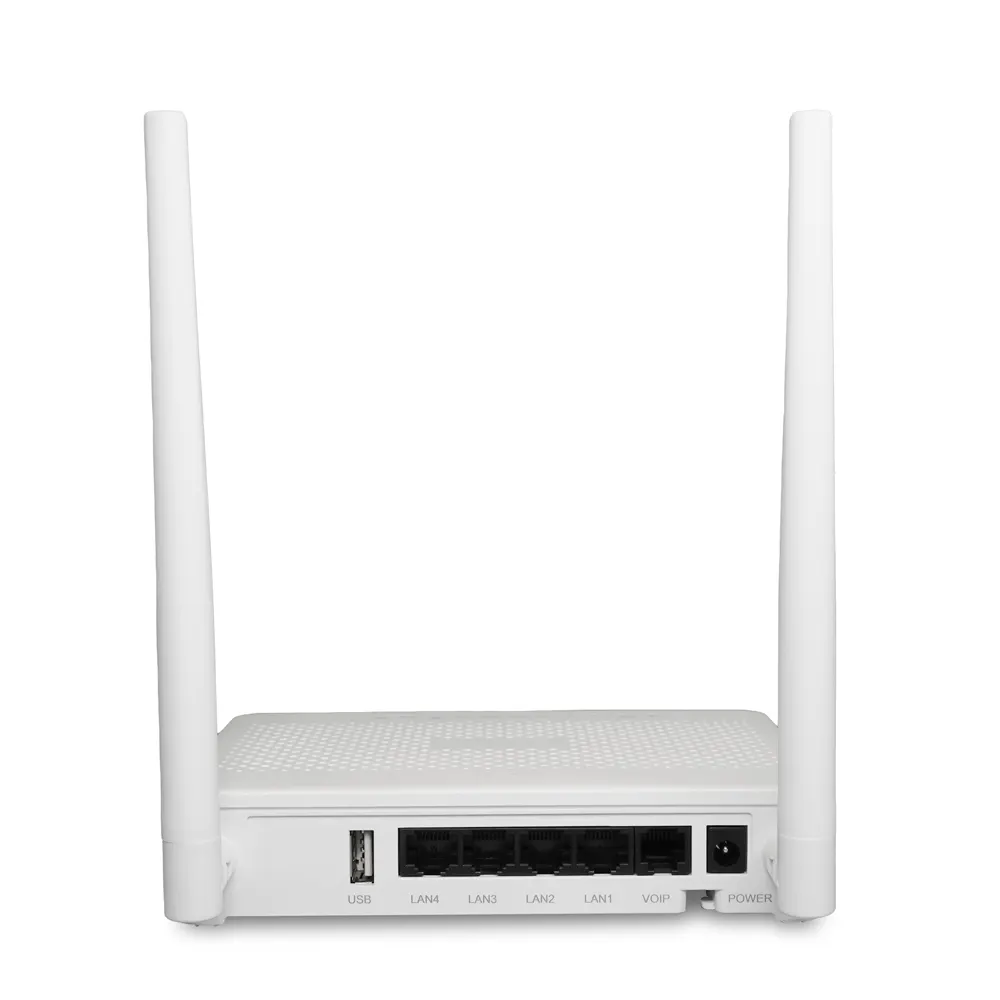

| Interfaces | 1×GPON/EPON (SC), 4×GE, 1×VoIP (RJ11), 1×USB 2.0 |
| WiFi Standards | 802.11b/g/n (2.4GHz), 802.11a/n/ac (5GHz) |
| Antenna | Dual MIMO (5dBi gain) |
| Dimensions | 190×135×33mm |
| Power | 12V/1.5A (≤8W) |
Network Performance
| Parameter | GPON | EPON |
|---|---|---|
| Downstream | 2.48Gbps | 1.25Gbps |
| Upstream | 1.25Gbps | 1.25Gbps |
| Service Support | VLAN, QoS, Multicast, IPv6 | |
WiFi 5 Specifications
| Feature | 2.4GHz Band | 5GHz Band |
|---|---|---|
| Speed | 300Mbps | 867Mbps |
| Channels | 1-13 | 36-161 |
| Transmit Power | 100mW | 200mW |
| Security | WPA3, WPA2-PSK, AES/TKIP | |
Advanced Features
- Layer 3: PPPoE/DHCP/IPv6, NAT, Port Forwarding, DDNS
- Layer 2: VLAN Tagging, MAC Learning, Jumbo Frames
- QoS: 8 Priority Queues, Bandwidth Control
- VoIP: G.711/G.729 Codecs, T.38 Fax
Environmental Parameters
| Condition | Operating | Storage |
|---|---|---|
| Temperature | 0°C to 45°C | -20°C to 70°C |
| Humidity | 5% to 95% (non-condensing) | |
Management & Compliance
- OMCI/TR069/Web UI/Telnet/SSH
- Standards: ITU-T G.984, IEEE 802.3ah, RFC 4566
- Dual firmware backup & recovery
